Note

• Grab rail configuration varies depending on selection

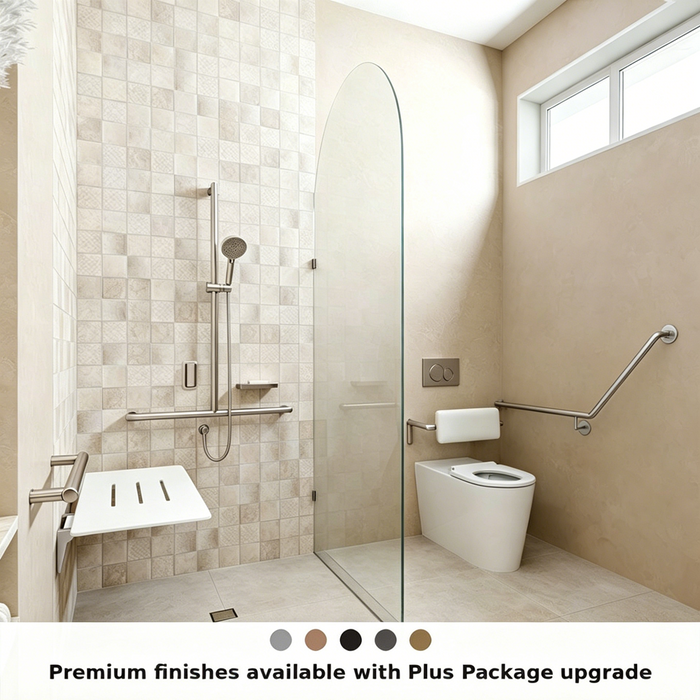

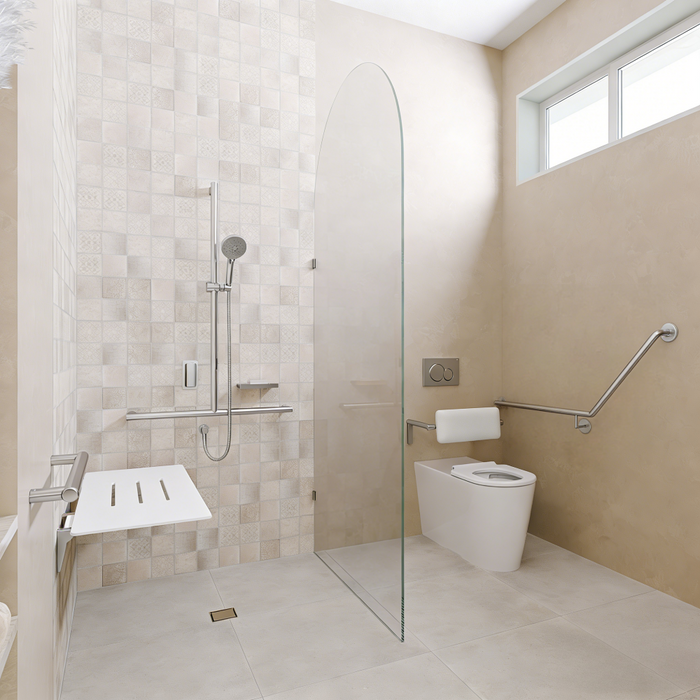

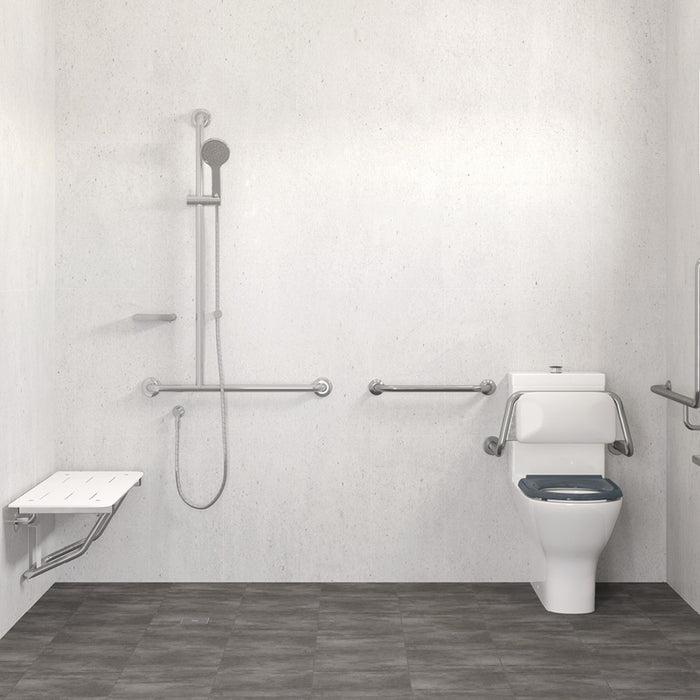

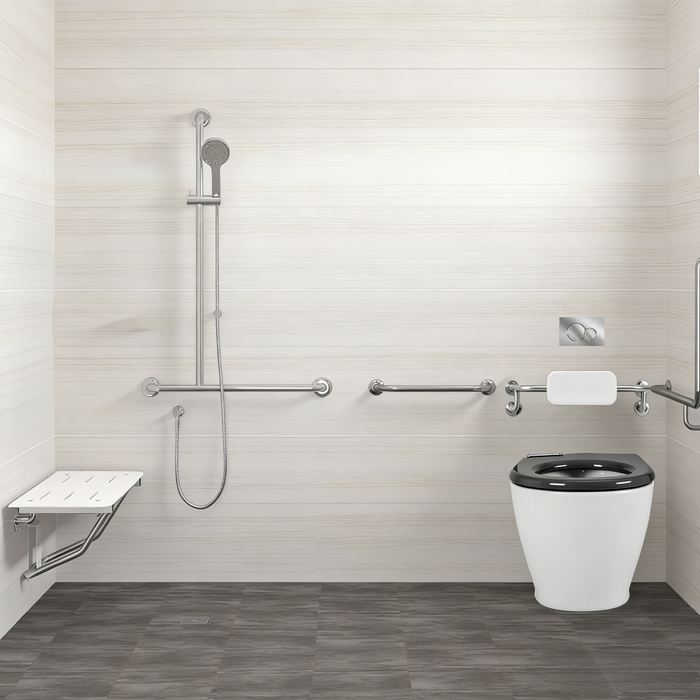

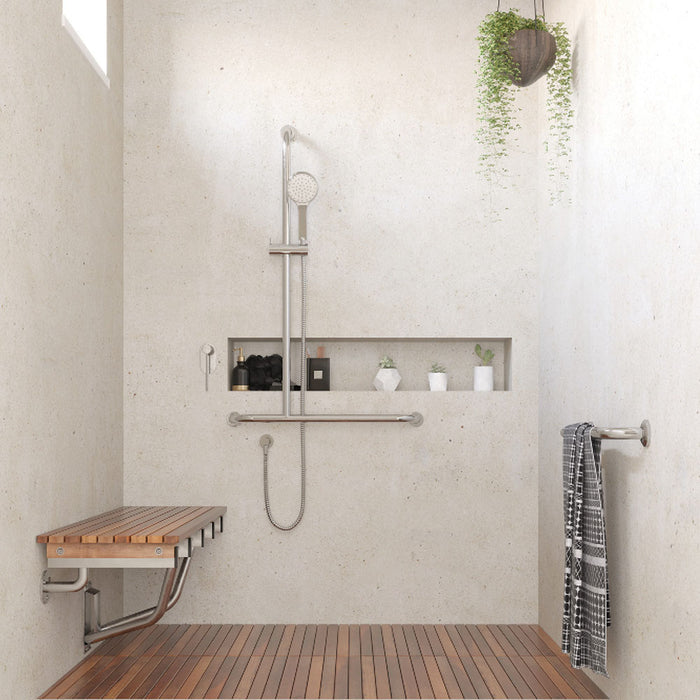

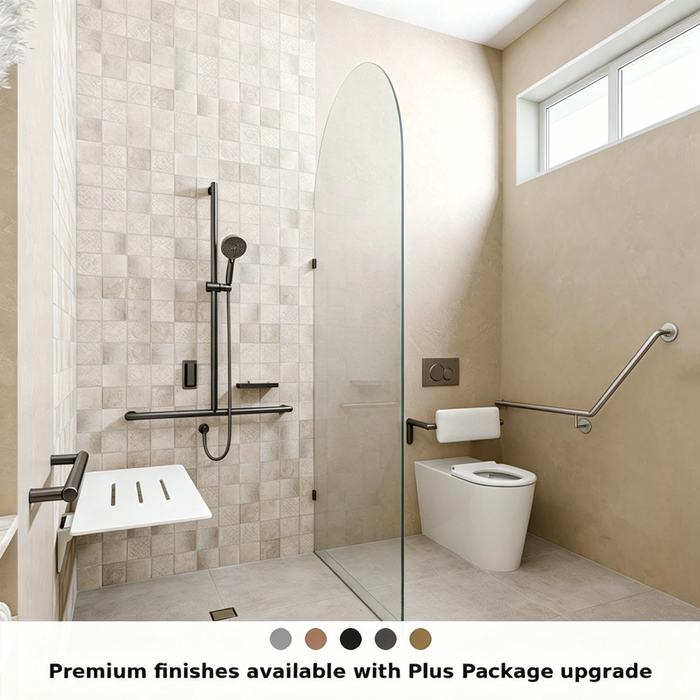

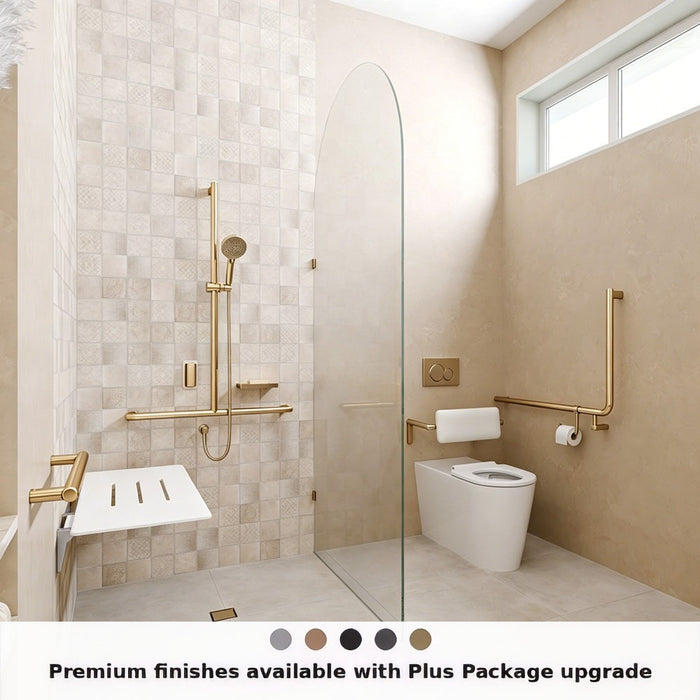

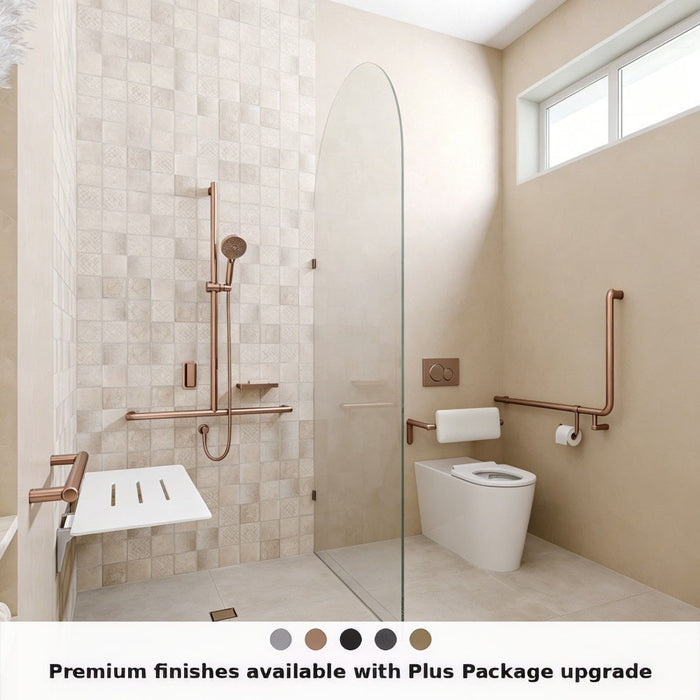

• Lifestyle images are for illustrative purposes only and demonstrate a typical left-hand layout; actual inclusions vary depending on the selected configuration.
• Certain accessories are included in Plus configurations only (e.g. Care Roll Holder)

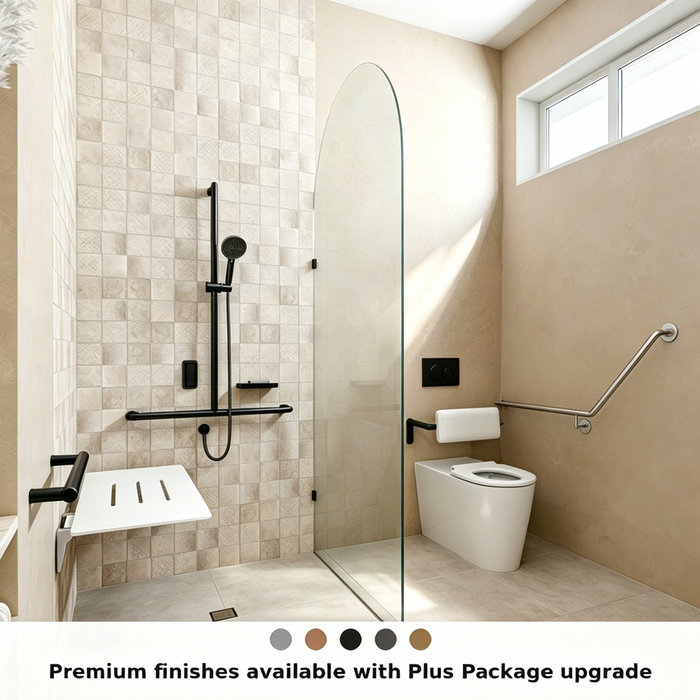

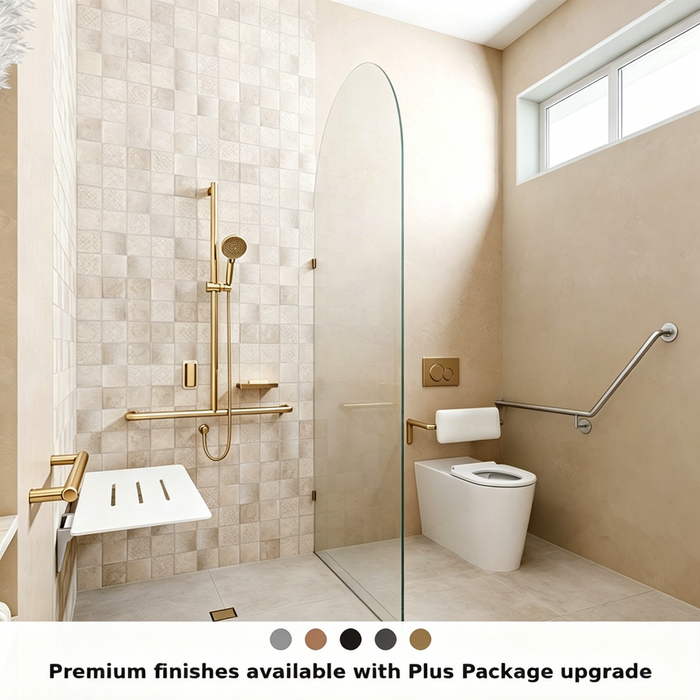

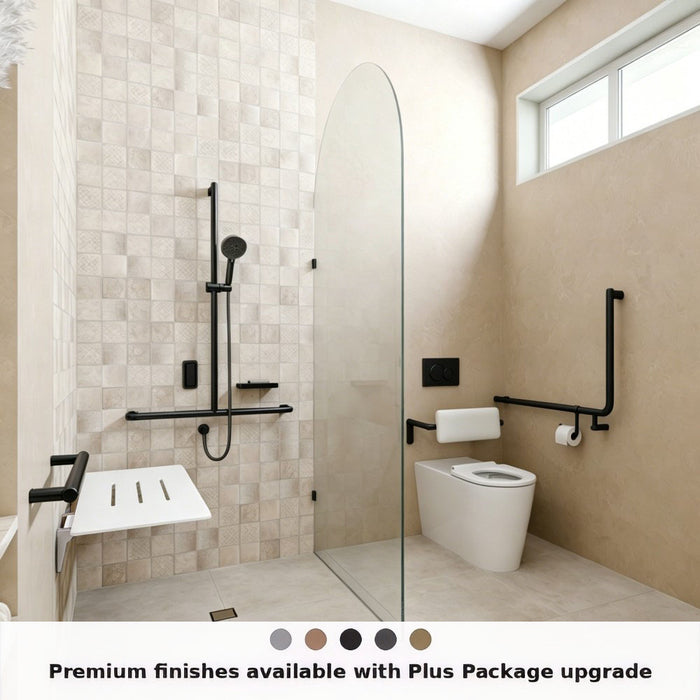

• Plus Package only - select from 5 premium finishes applied to upgradeable components only; other parts remain in the default finish.

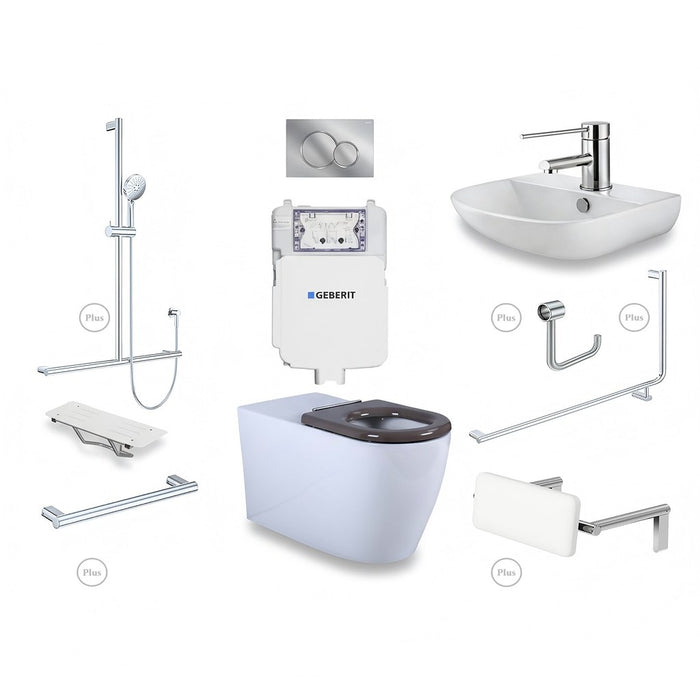

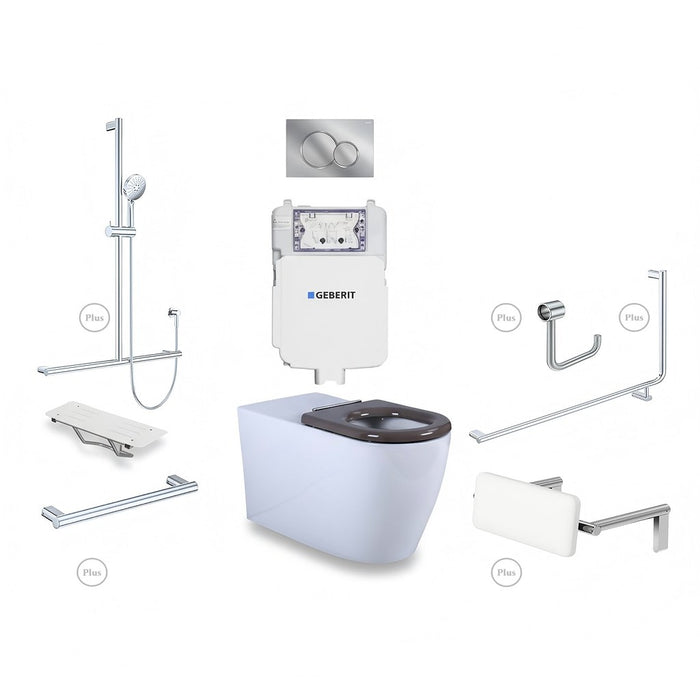

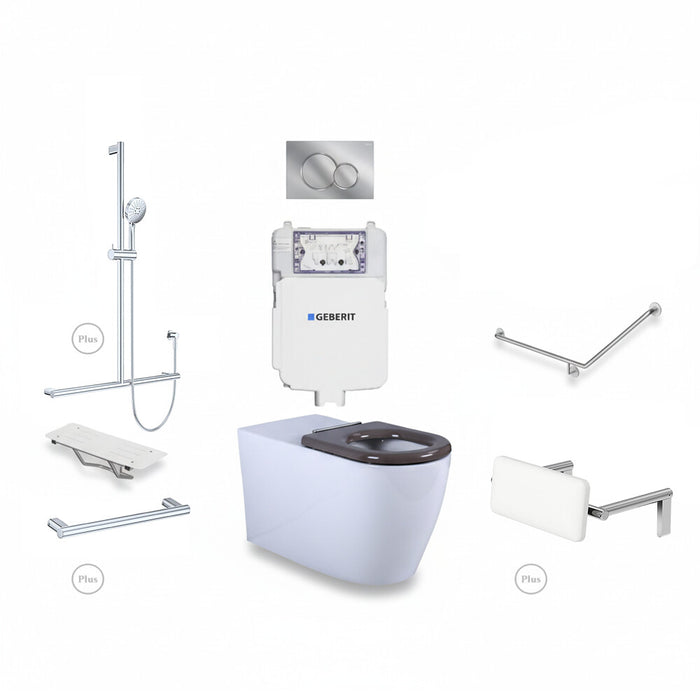

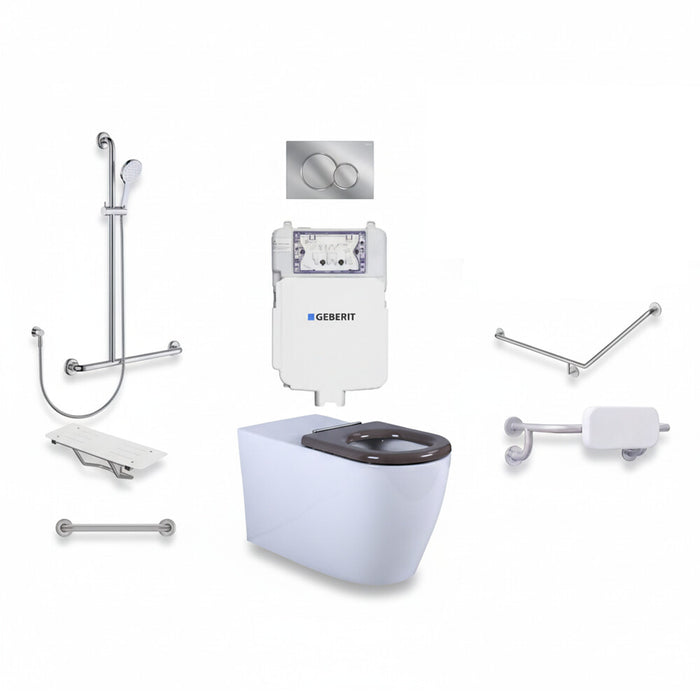

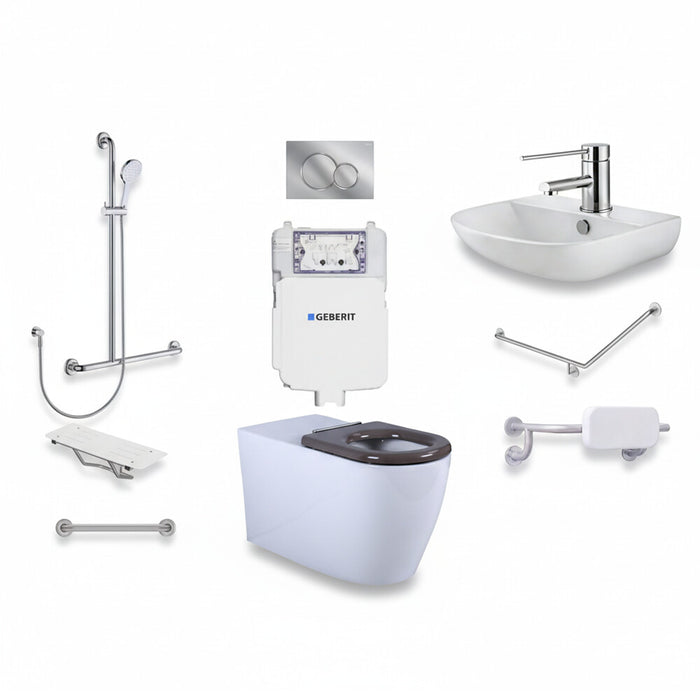

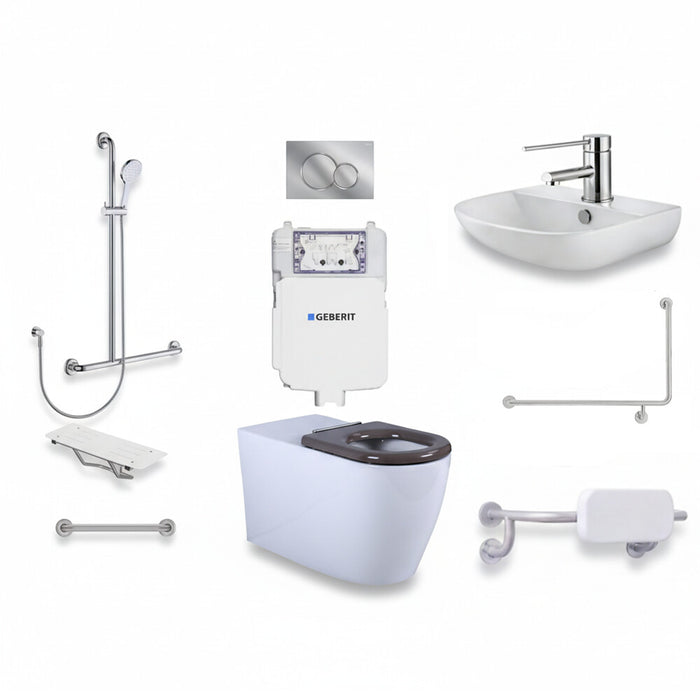

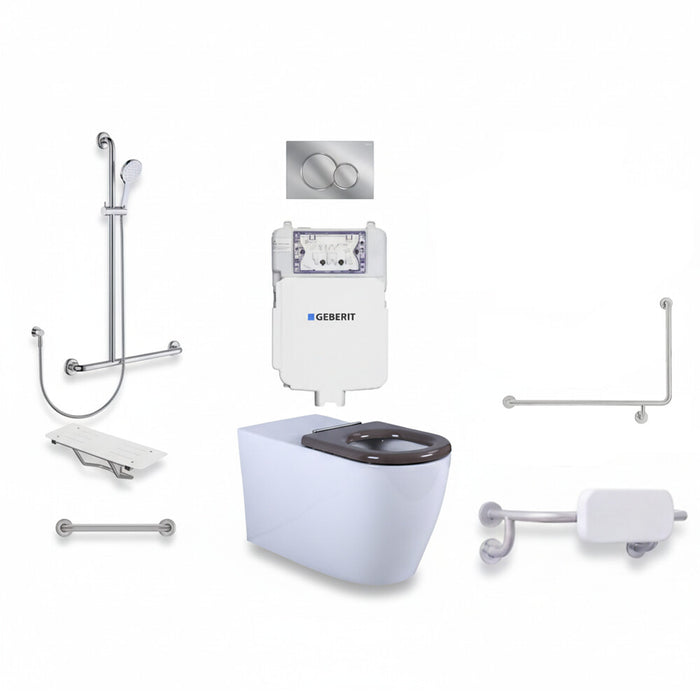

Package

• Care Raised Height pan *1PC
• Geberit Button & Cistern * 1SET
• Backrest * 1PC
• 450mm Grab Rail * 1PC
• Assist Grab Rail (Choose: 40° or 90°) * 1PC
• T Rail Shower * 1PC
• Care Shower Seat * 1PC
• Basin With Mixer (if order) * 1SET
• Care Roll Holder (90° Plus only) * 1PC
• Mounting Screws *1SET

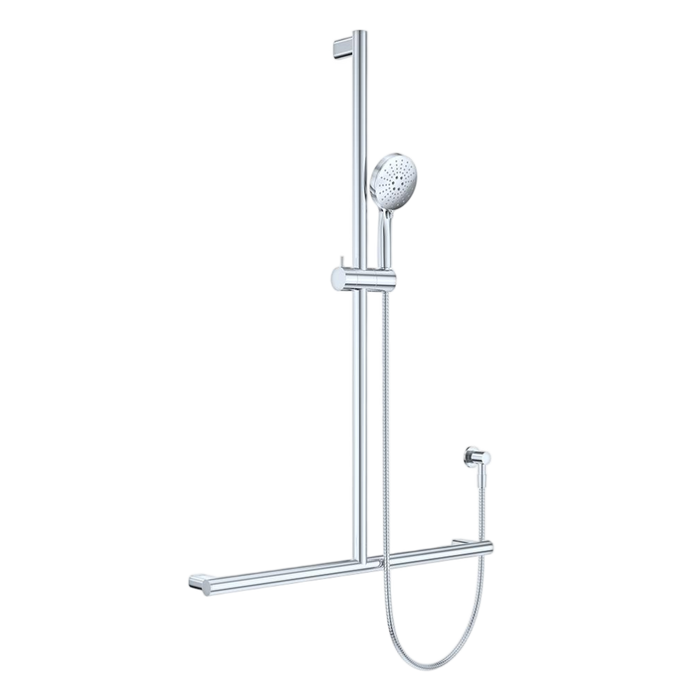

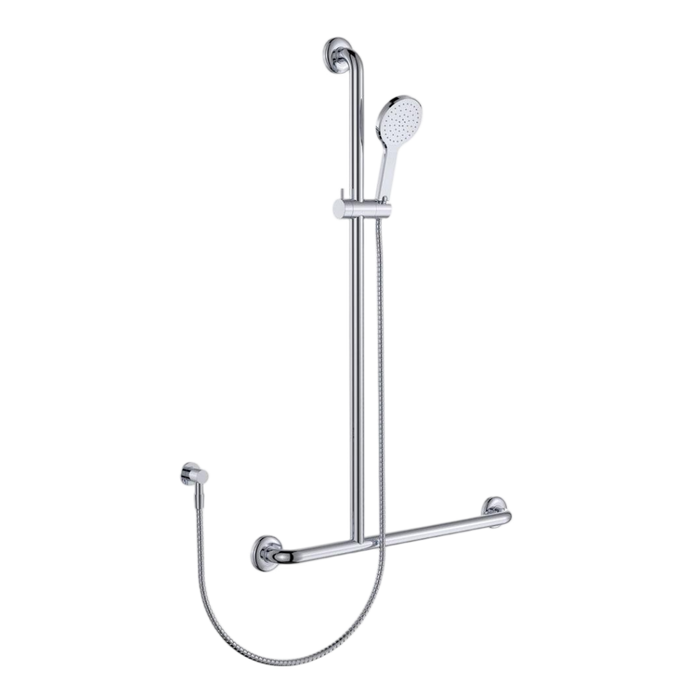

Shower System

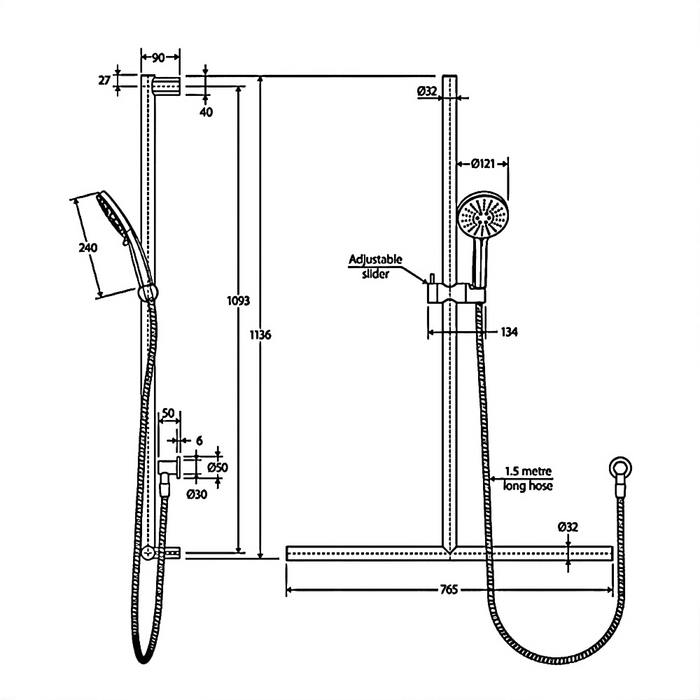

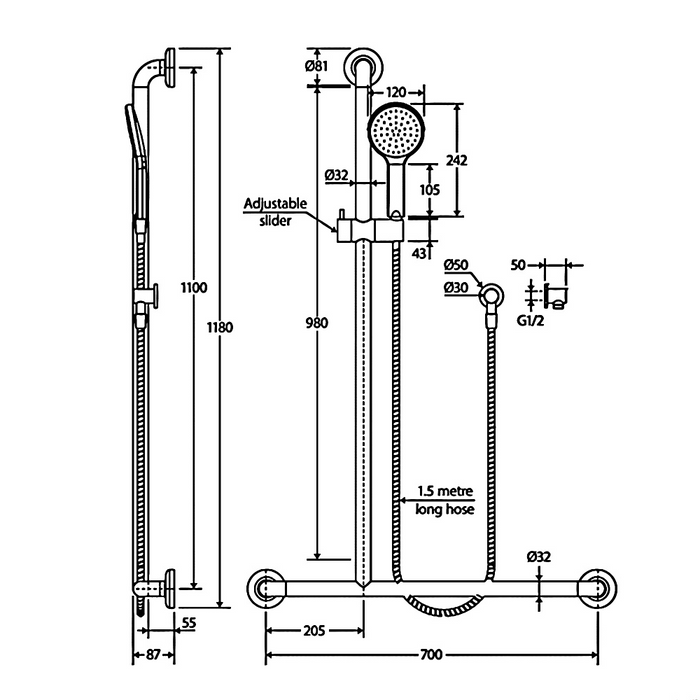

• Care T Rail Shower - Standard vs Plus | Common Features

1. Chrome finish
2. Easy-clean TPR nozzles
3. Deluxe stainless steel elbow
4. Dual check / non-return valve
5. Adjustable slider (height & angle)
6. ABS hand shower construction, Stainless Steel Rail

• Care T Rail Shower - Standard vs Plus | Key Differences

1. Model name Luciana Care T Style Shower rail Left Hand
2. WELS registration number S15817
3. WELS 3 Star rated, 9L/min
4. Model name CARE Inverted T Rail Shower Set
5. WELS registration number S18724
6. WELS 3 Star rated, 9L/min

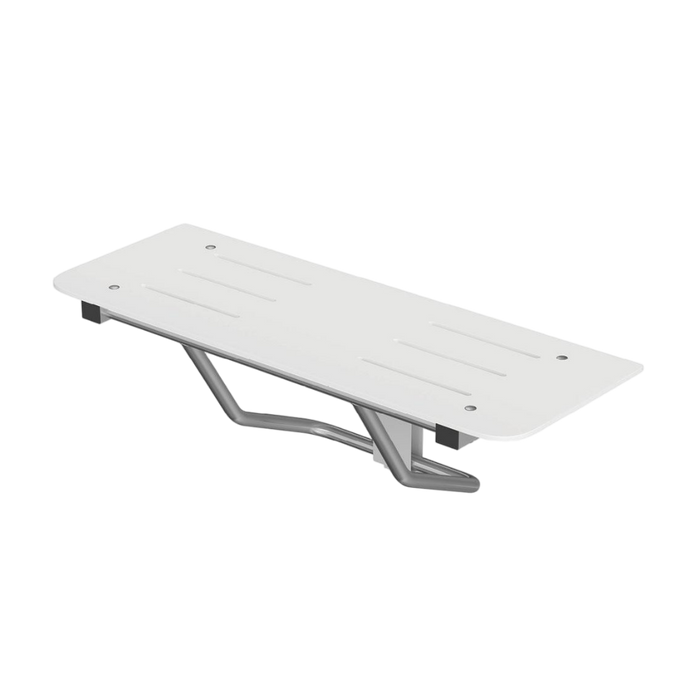

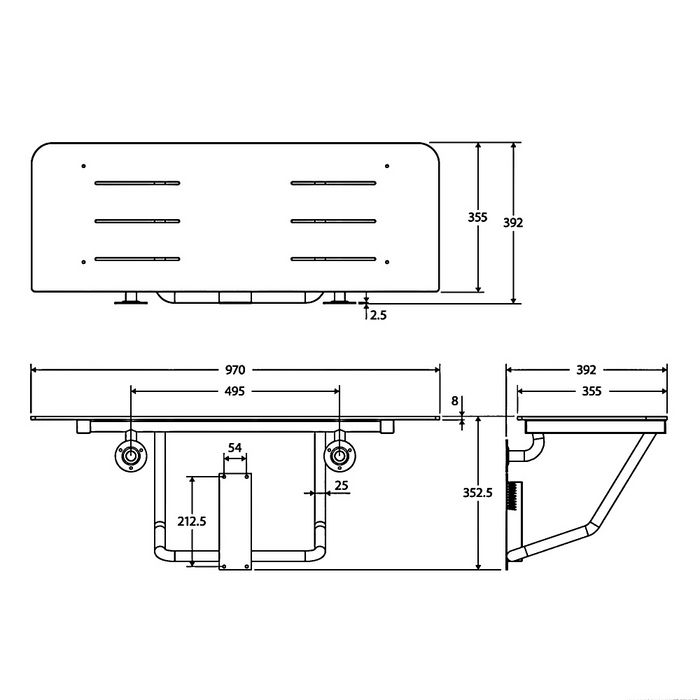

• Accessible Care Shower Seat

1. AS1428.1:2021 compliant
2. Fold-up, space-saving design
3. Slip-resistant phenolic seat
4. 304 stainless steel frame
5. Max load: 150 kg

Toilet Suite

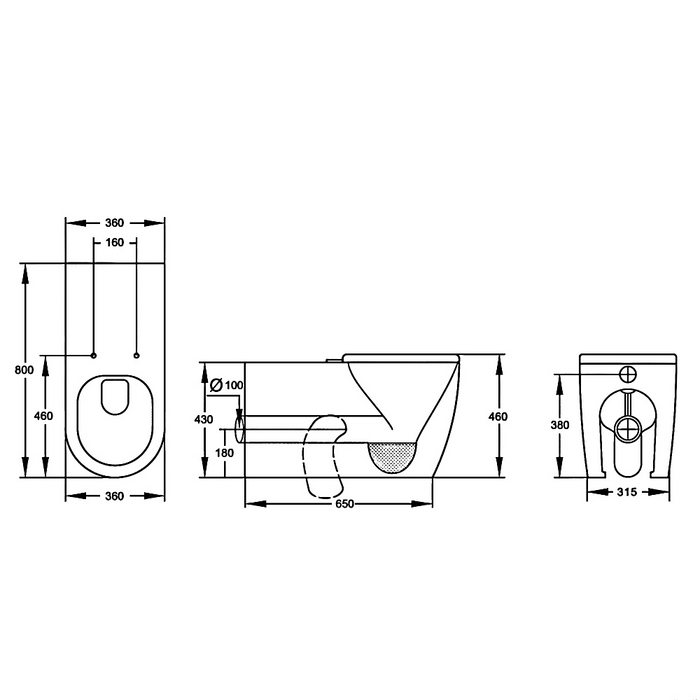

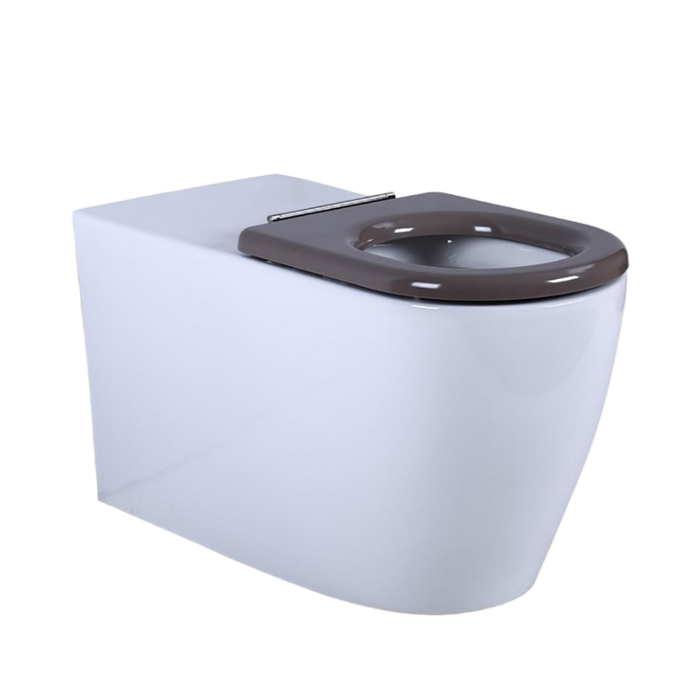

• Toilet Pan

1. Size: 800 × 360 × 430mm
2. Tornado Flush Wall Faced Floor Pan
3. Single Flap Care Seat SC130
4. Trap-100: 160-290mm
5. Single Flap Care Seat SC130
6. WELS Model name: Asta Care WFP
7. WELS Registration Number: L05197
8. Star rating 4
9. Full flush 4.5 litres per full flush
10. Half flush 3.2 litres per half flush
11. Average flush 3.5 litres per flush

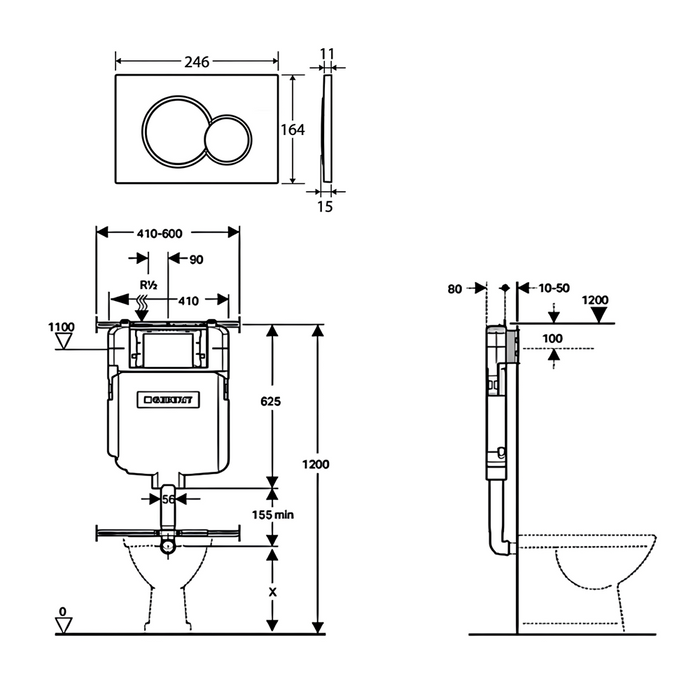

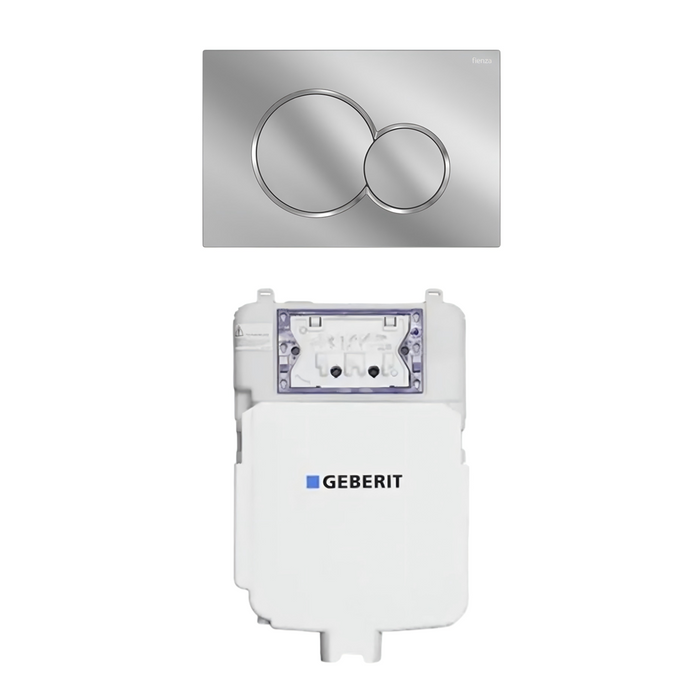

• Toilet Button & Cistern

1. Chrome Square Button
2. Geberit Sigma8 Concealed Cistern Frameless Standard In-wall Cistern

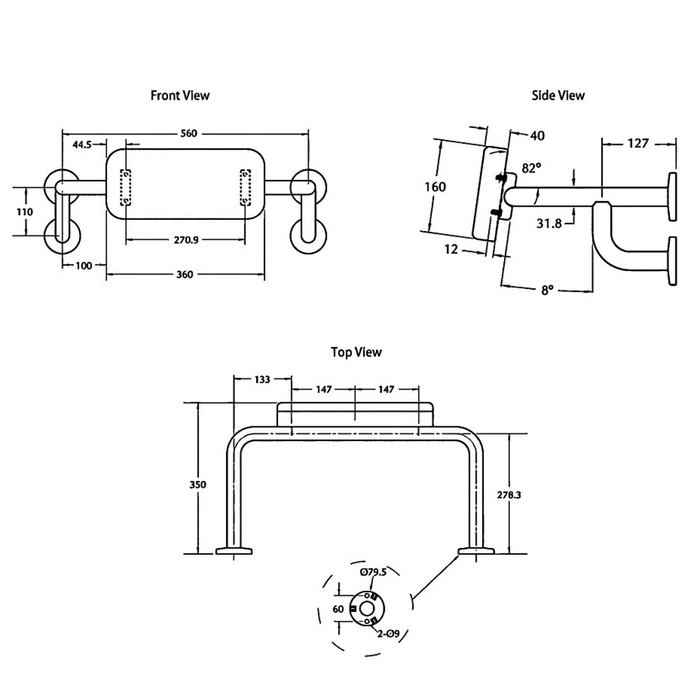

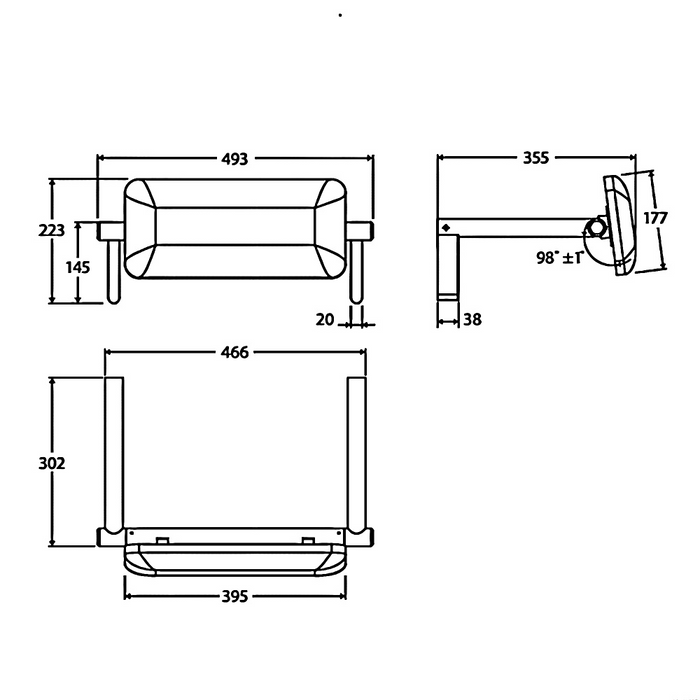

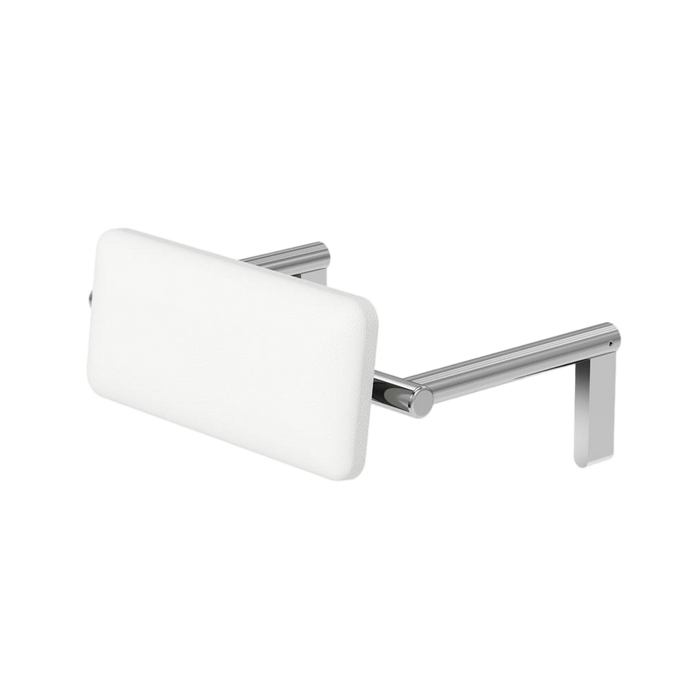

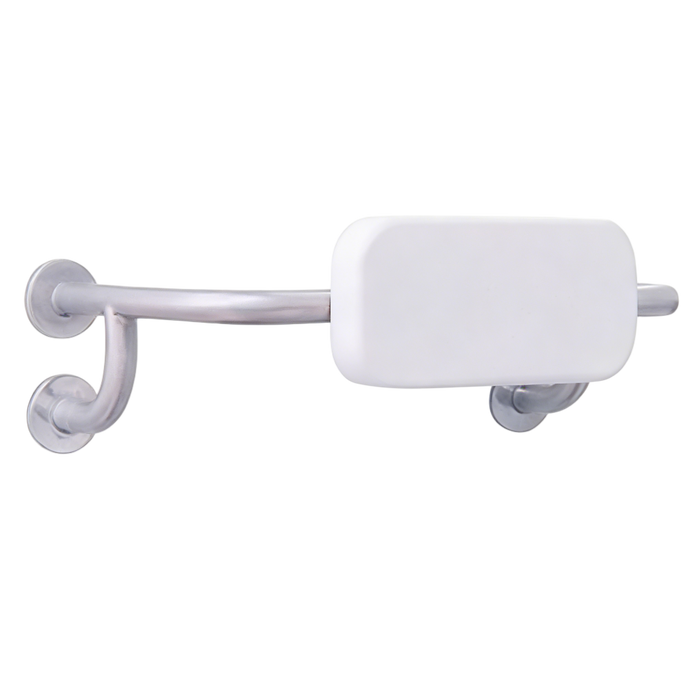

• Backrest

1. Standard: Basic backrest for general support
2. Plus: High-strength, AS1428.1 compliant backrest with PU cushioning and concealed fixing for enhanced comfort and durability

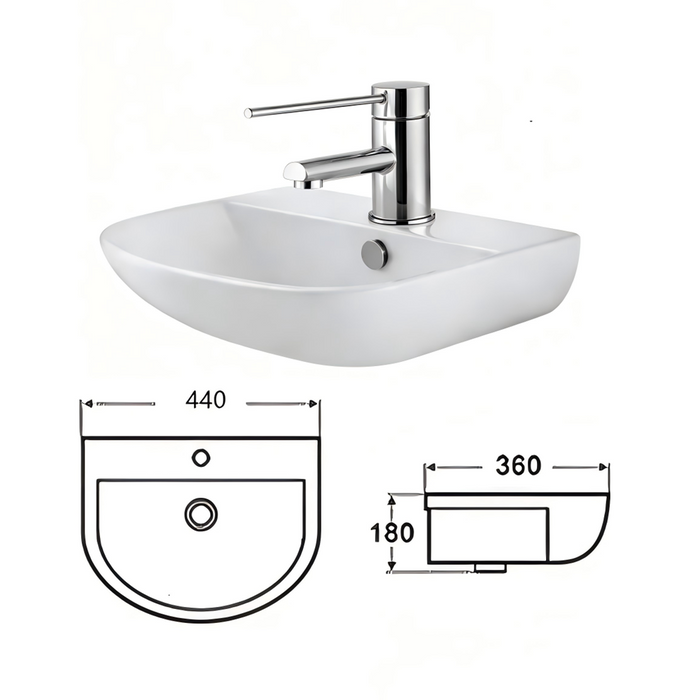

Basin With Mixer

• Size: 440 × 360 × 180mm
• Wall hung basin
• Gloss white ceramic
• 32mm overflow waste

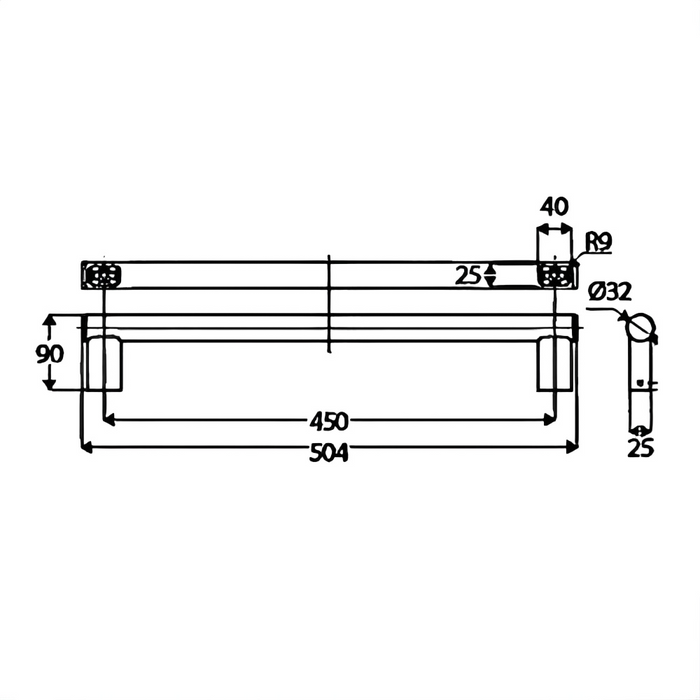

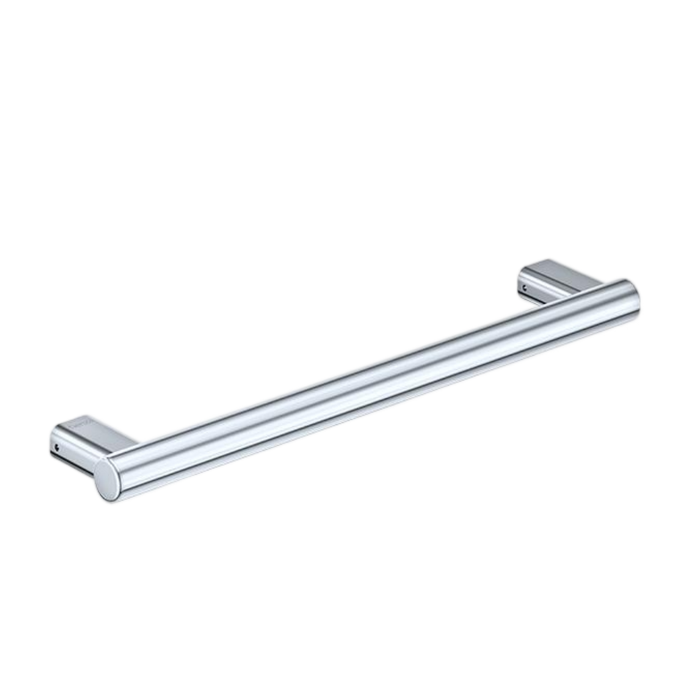

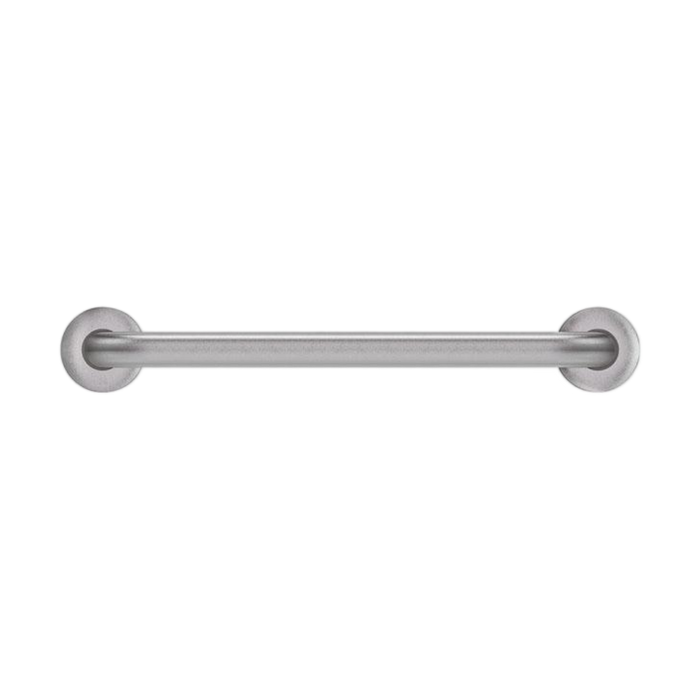

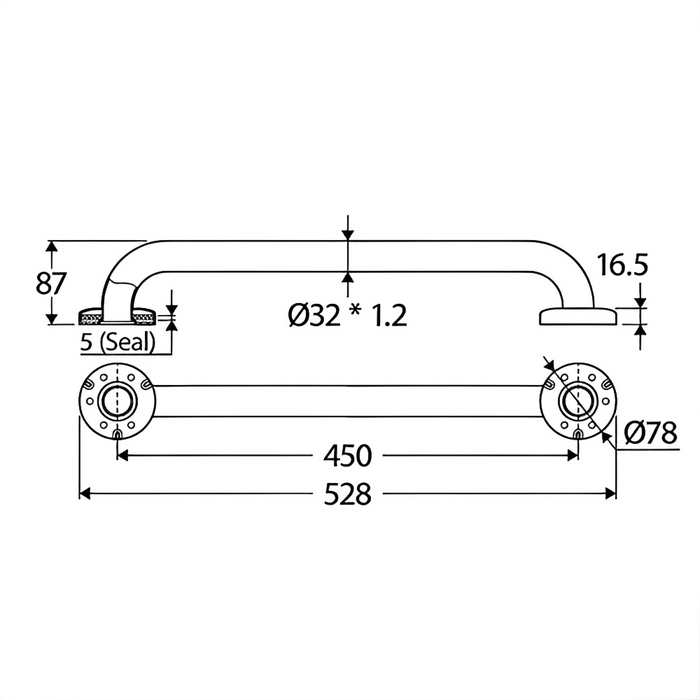

450mm Straight Grab Rail

• 450mm Straight Grab Rail - Standard vs Plus | Common Features

1. 450 mm length
2. Compliant with AS 1428.1:2021 Access and Mobility
3. Made from 304 stainless steel
4. Concealed fixings

• 450mm Straight Grab Rail - Standard vs Plus | Key Differences

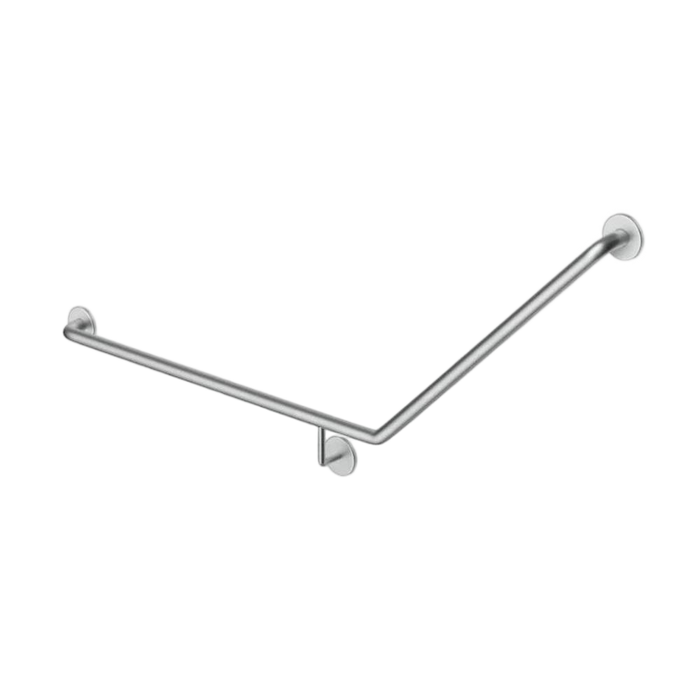

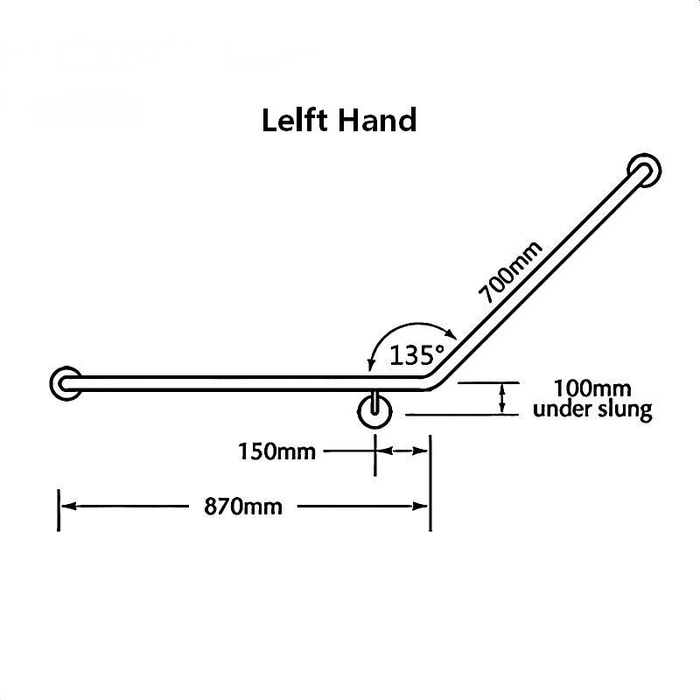

Assist Left-Hand Grab Rail (40°)

• Diameter: 32mm
• Configuration: Left-Hand
• Size: 870 × 700mm
• Designed to assist sitting and standing movement

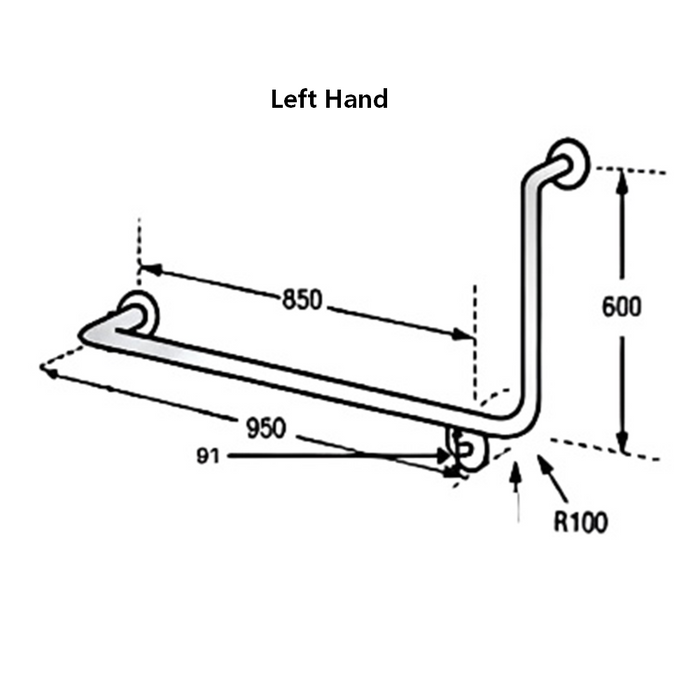

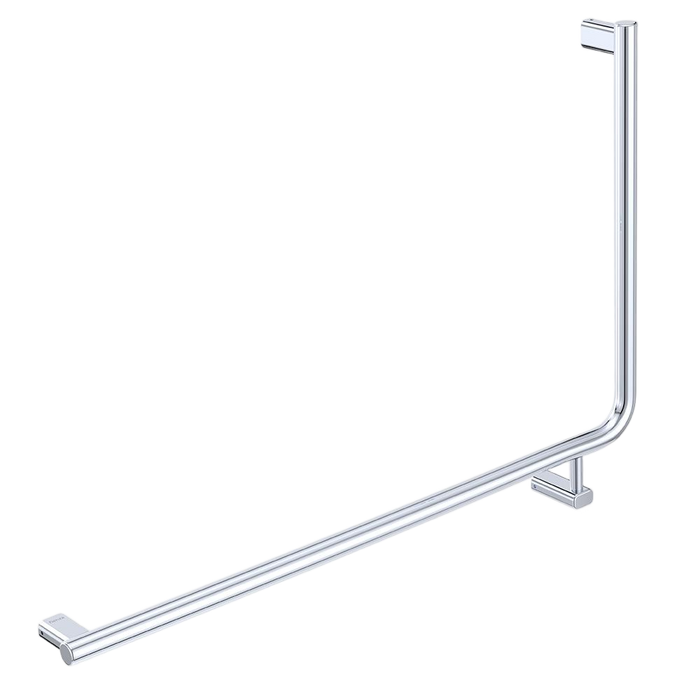

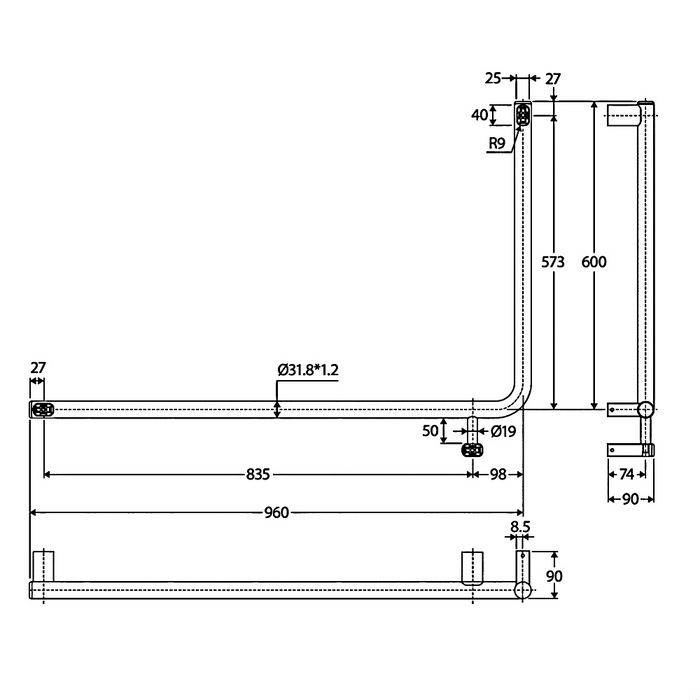

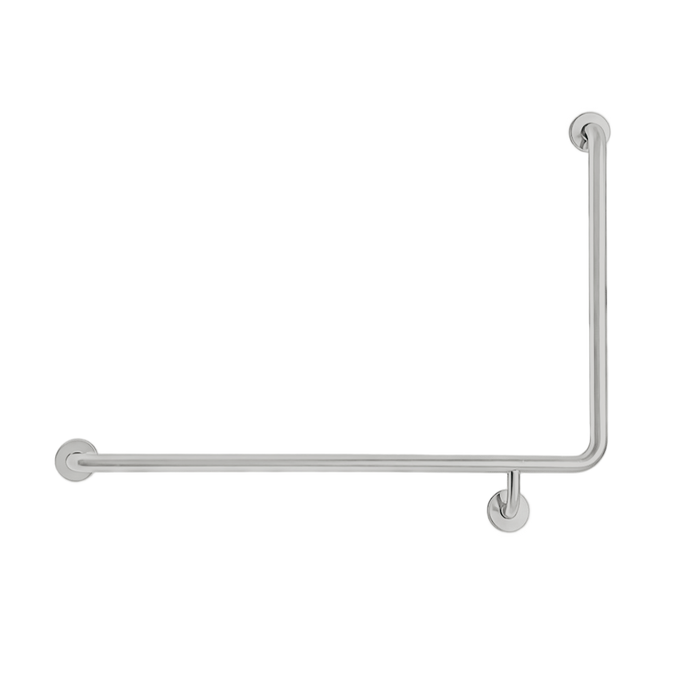

Assist Left-Hand Grab Rail (90°)

• Assist Grab Rail ( 90°) - Standard vs Plus | Common Features

1. Designed to assist sitting and standing movement
2. Suitable for left-hand installation

• Assist Grab Rail ( 90°) - Standard vs Plus | Key Differences

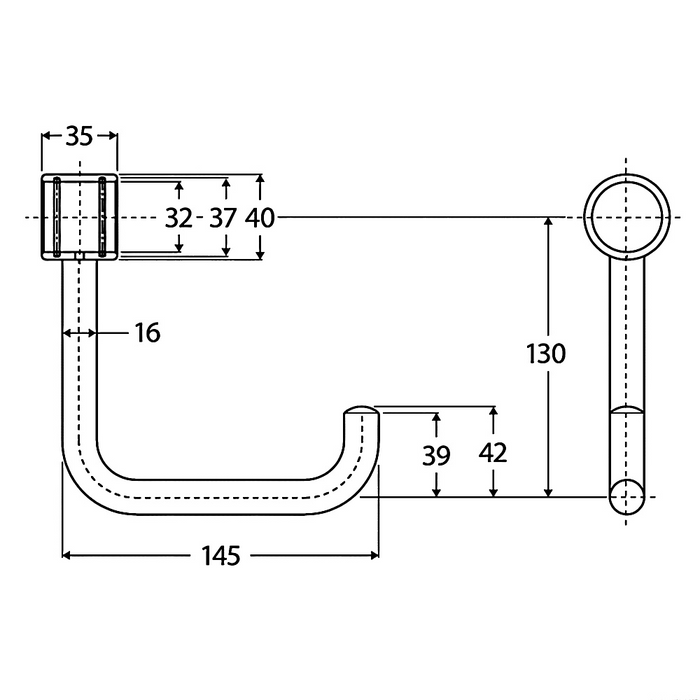

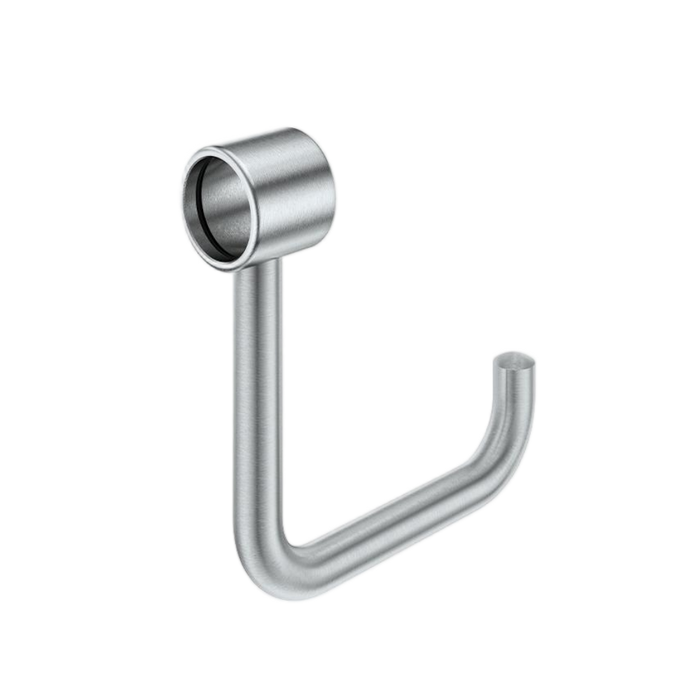

• Care Roll Holder for Grab Rail (90°)

1. Rail-mounted toilet roll holder for grab rail systems, made from 304 stainless steel and AS1428.1 compliant.

Warranty

• Pans and Cisterns - 10 Years Replacement on Ceramic
• 1 Year Replacement on Parts of Accessories
