Overview

• Designed for Independent Living & Everyday Accessibility

1. All-in-one solution – toilet, grab rails, shower system and seat included
2. Designed for elderly users and mobility-impaired individuals
3. Supports safer sitting, standing and showering
4. AS1428.1 compliant for accessibility and safety
5. Carefully selected components used across residential and commercial care environments
6. Trusted choice for home care, aged care facilities and NDIS bathroom upgrades
7. Available in stainless steel and premium designer finishes to suit different bathroom styles

• Performance & Safety Highlights

1. Slip-resistant foldable shower seat for added safety
2. Durable 304 stainless steel construction for long-term reliability
3. Reinforced grab rails tested to 1100N for secure, confidence-boosting support
4. Ergonomic layout designed to make sitting and standing easier and safer
5. Water-efficient system designed to meet Australian standards

Options & Configuration

• Grab Rail & Package Options

1. 40° Grab Rail: Compact support layout, ideal for smaller bathrooms or basic assistance needs

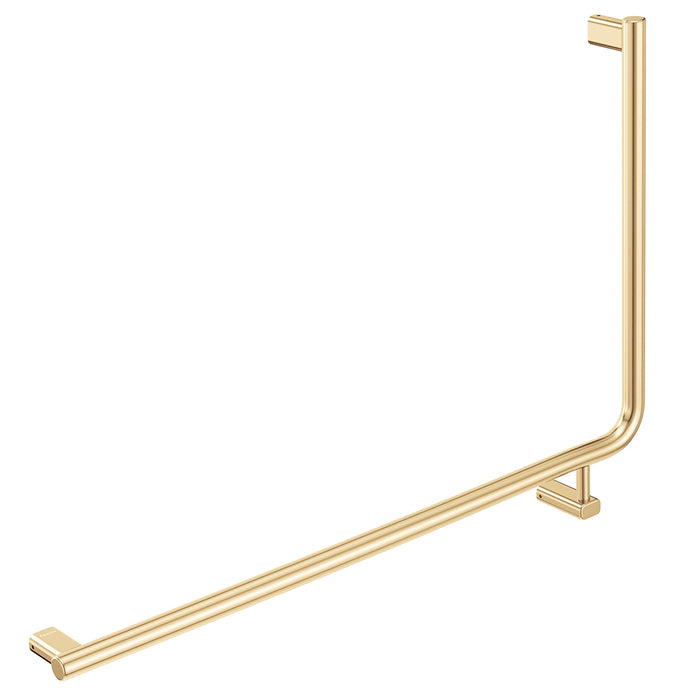

2. 90° Grab Rail: Extended support layout for maximum stability and additional assist features
3. Standard Package: Reliable, compliant solution for everyday accessibility needs

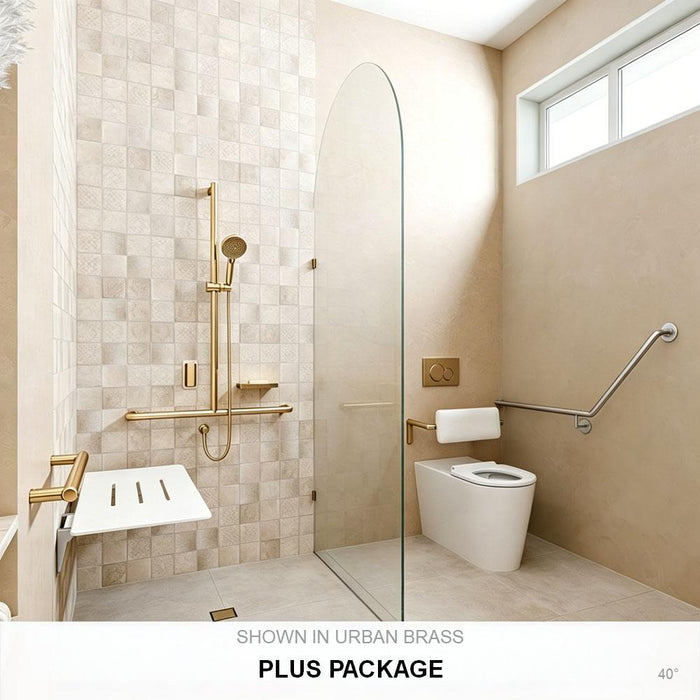

4. Plus Package: Enhanced comfort, improved usability and upgraded components for a better daily experience


• Plus Upgrades Explained

1. PLUS: Functional + finish upgrades for improved comfort, usability and a more modern look
2. PLUS FINISH: Colour upgrade only (no functional changes)
3. 40° Plus: Upgraded shower system, backrest, flush button and 450mm grab rail
4. 90° Plus: Includes the same upgraded components as 40° Plus, with an upgraded 90° assist grab rail and integrated care roll holder

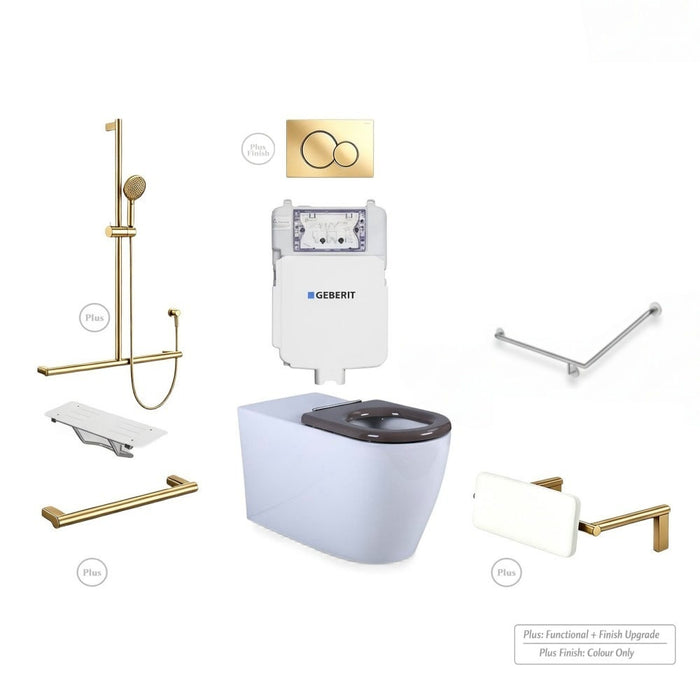

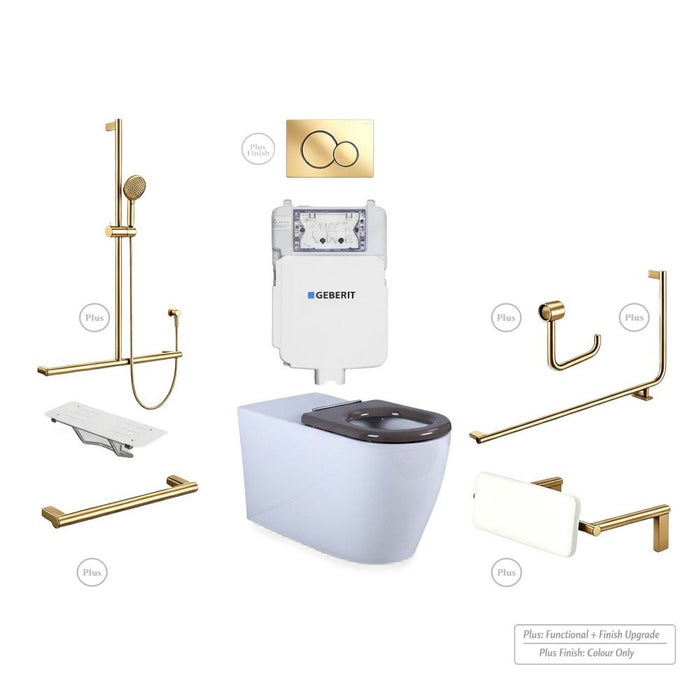

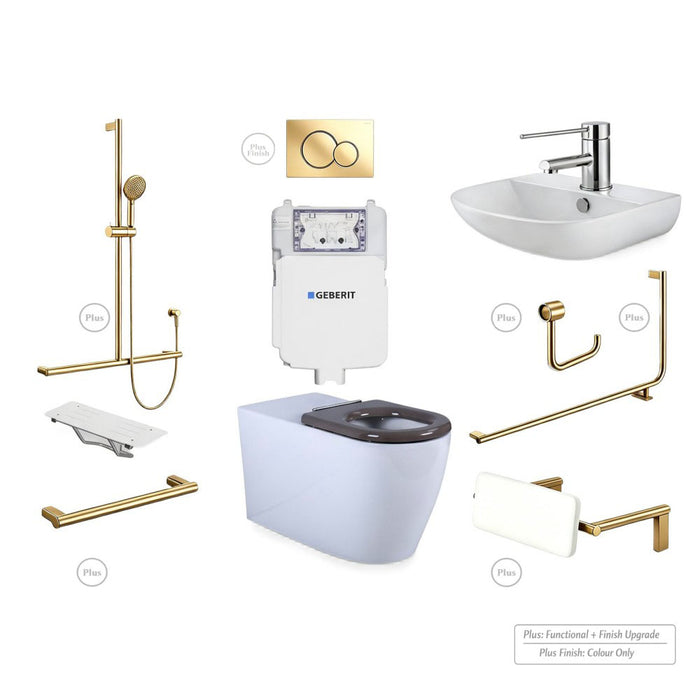

System Package

• Care raised height toilet pan ×1PC

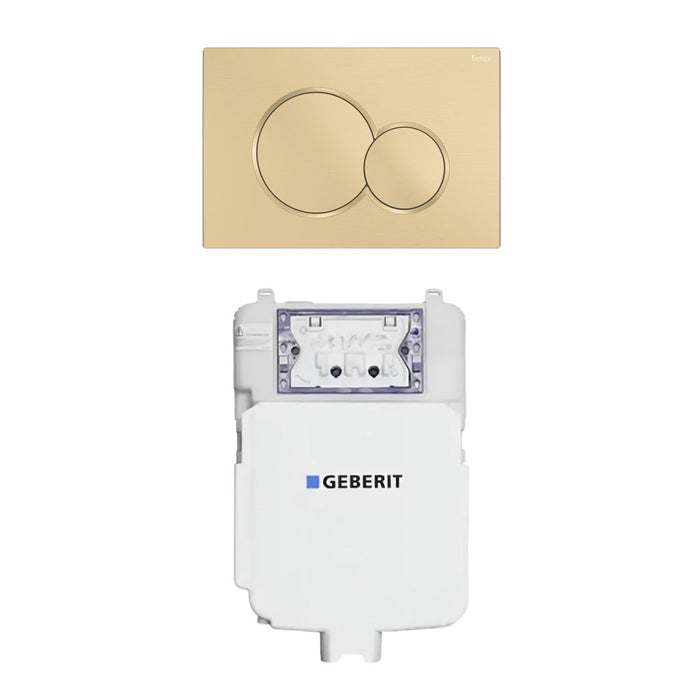

• Concealed cistern with flush button ×1 SET

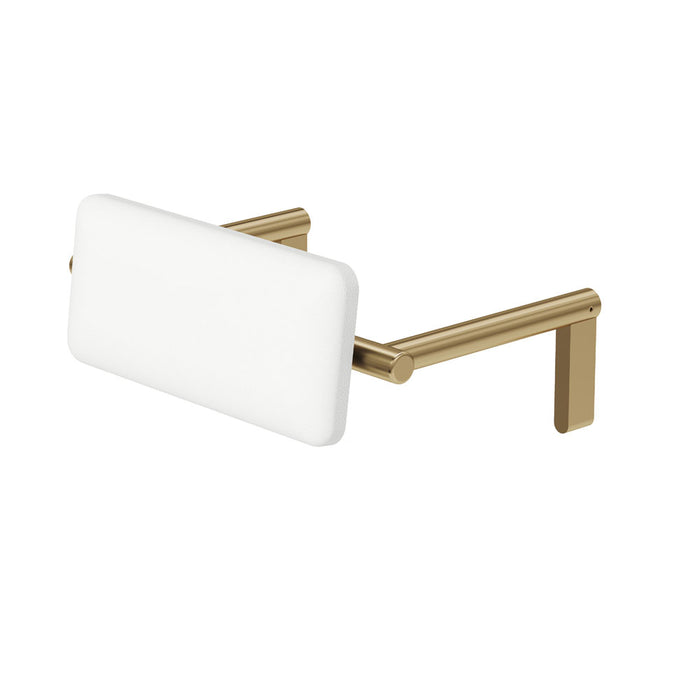

• Supportive backrest ×1PC

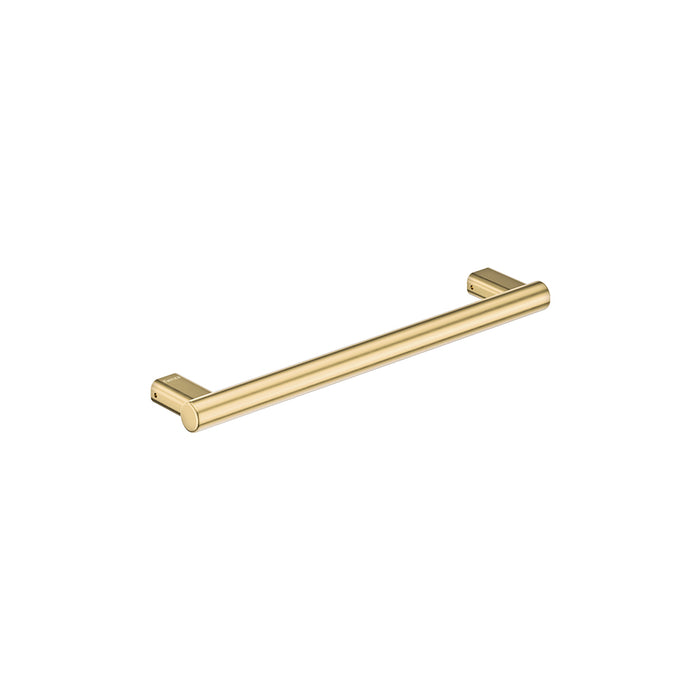

• 450mm grab rail ×1PC
• Assist grab rail (40° or 90° configuration) ×1PC
• T Rail shower ×1PC
• Foldable shower seat (max load 150kg) ×1PC

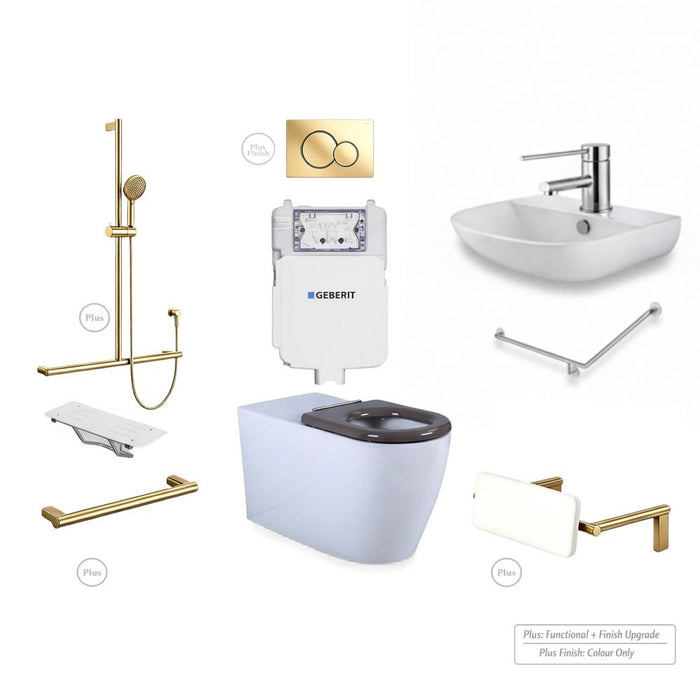

• Optional wall-hung basin with mixer ×1 SET (if selected)
• Mounting accessories ×1 SET

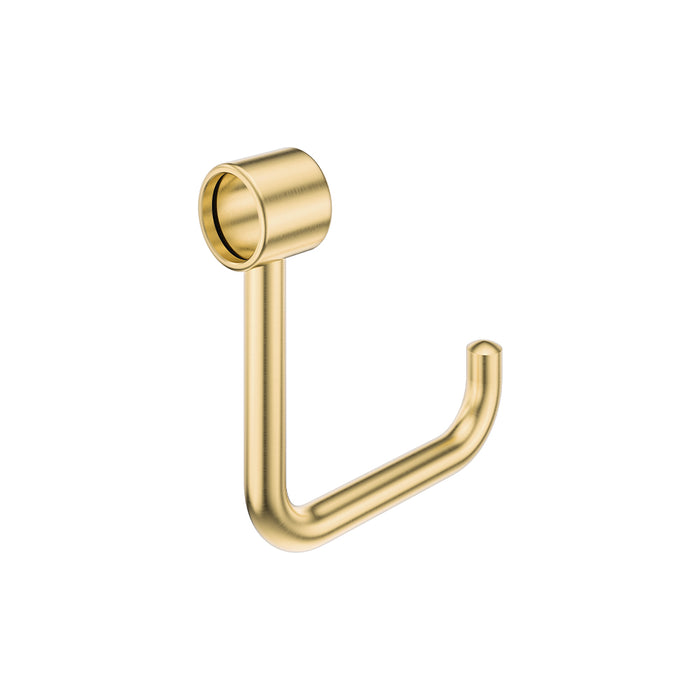

• Care roll holder ×1PC (90° Plus configuration only)

Technical Specifications

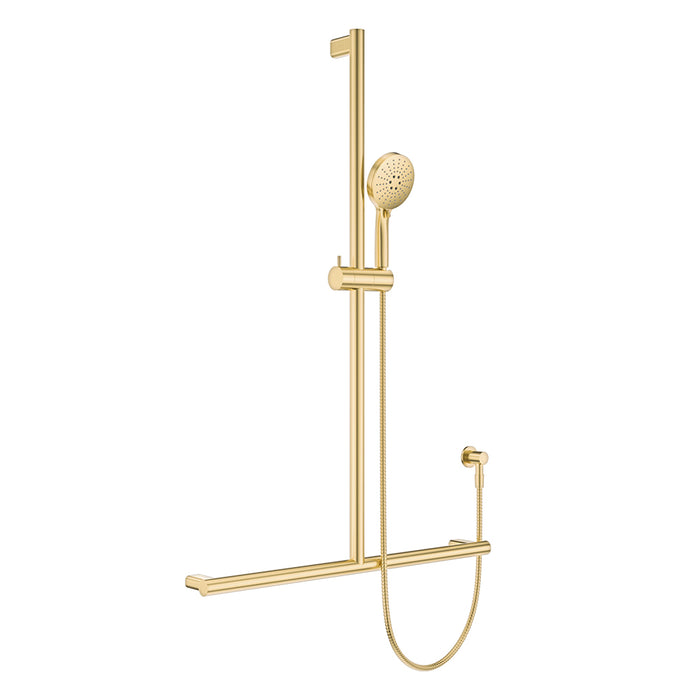

• Shower System

1. Standard: Offset T Rail with single-function hand shower
2. Plus: Centre-mounted T Rail with 3-function hand shower (normal / massage / combination)
3. Easy-clean TPR nozzles
4. Adjustable slider (height & angle)
5. Dual check / non-return valve

• Accessible Shower Seat

1. AS1428.1:2021 compliant
2. Fold-up, space-saving design
3. Slip-resistant phenolic seat
4. 304 stainless steel frame
5. Maximum load: 150kg

• Toilet Suite

1. Tornado flush wall-faced design
2. Raised height pan for easier sitting and standing
3. Concealed cistern system with flush button

• Grab Rail & Support System

1. 304 stainless steel construction with concealed fixings
2. Compliant with AS1428.1:2021
3. Plus models feature enhanced structural strength and refined design
4. Assist rails designed to support safe sitting and standing movement

• Basin With Mixer

1. Size: 440 × 360 × 180mm
2. Wall hung basin
3. Gloss white ceramic
4. 32mm overflow waste

WELS

• Toilet

1. WELS Model Name: Asta Care WFP
2. WELS Registration Number: L05197
3. 4 Star Rating
4. Full flush: 4.5L per full flush
5. Half flush: 3.2L per half flush
6. Average flush: 3.5L per flush

• Shower System

1. Model name: Luciana Care T Style Shower Rail Left Hand
2. WELS Registration Number: S15817
3. WELS 3 Star rated, 9L/min
4. Model name: CARE Inverted T Rail Shower Set
5. WELS Registration Number: S18724
6. WELS 3 Star rated, 9L/min

Warranty

• 10 Years warranty on ceramic pan & cistern
• 1 Year warranty on accessories
