Feature

• Range: Kohler Veil

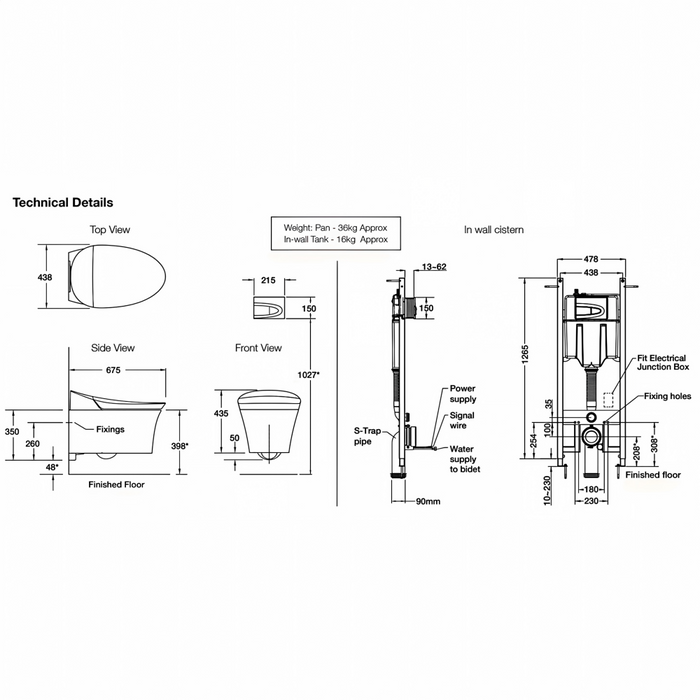

• Size: 675*438*435mm
• Color: White
• Materials: Ceramic

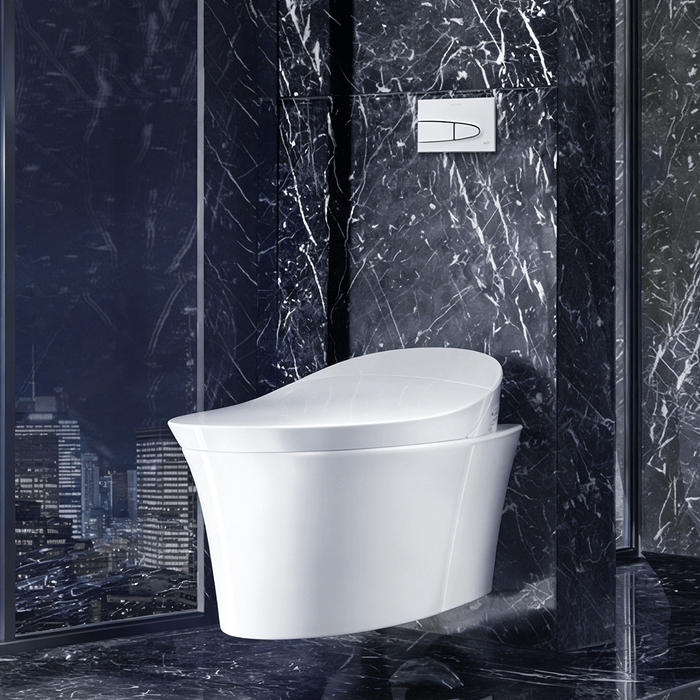

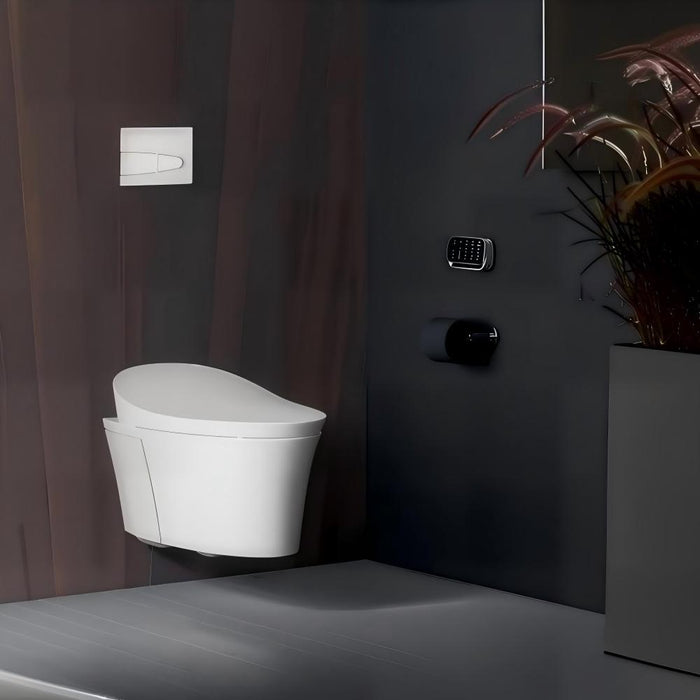

• Mounting: Wall Hung Pan

• Flush: Rimless pan

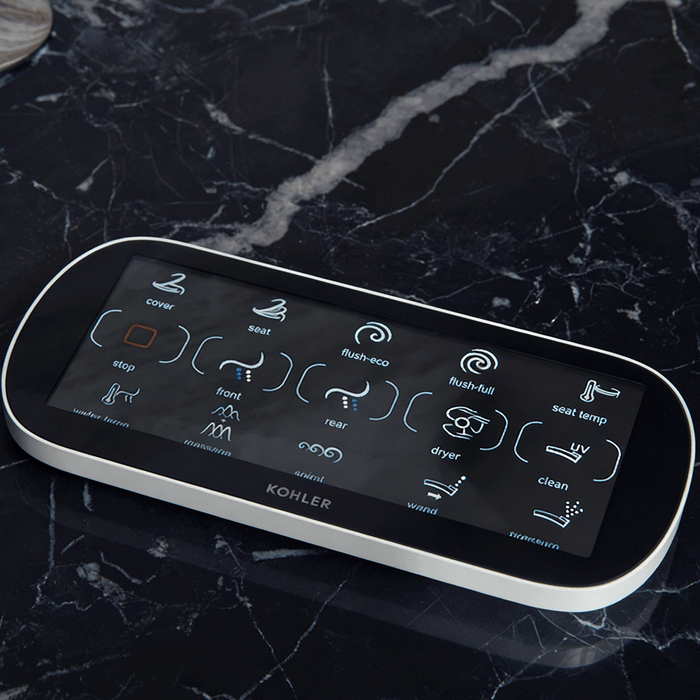

• Touchless or manual flush button panel
• Ergonomic French curve seat with antibacterial material
• Sensor activated auto open and close function for seat lid
• Insulated in-wall cistern – fully framed

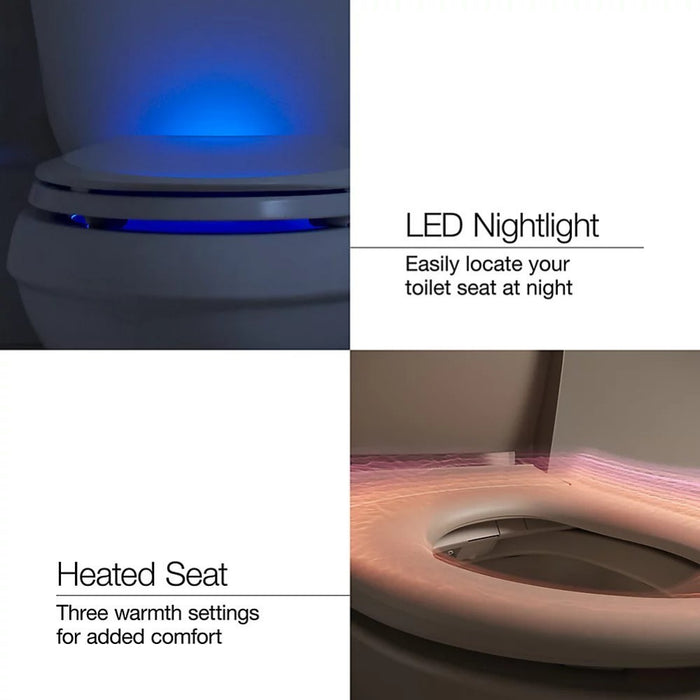

• Build in LED night-light
• Deodoriser function


Specification

• Hygiene & Automation

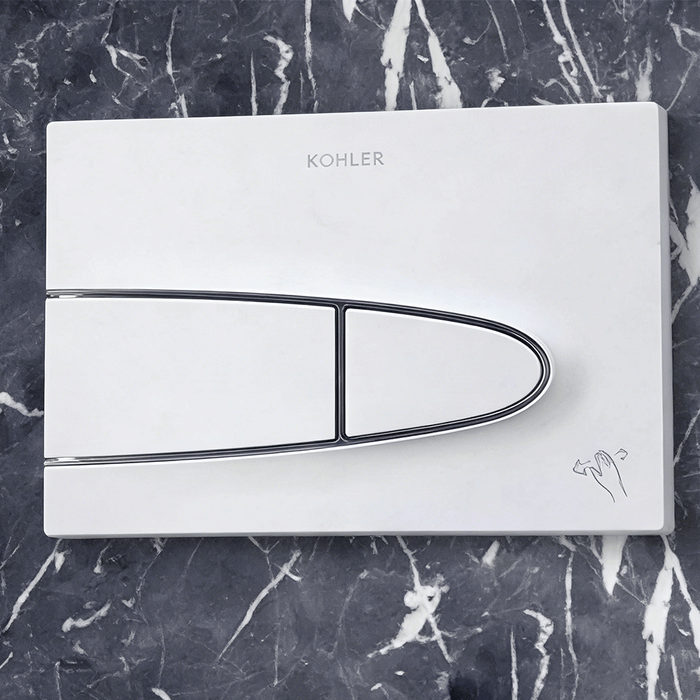

1. Touchless or Manual Flush: Choose between a touchless or manual flush button panel for convenience and enhanced hygiene.
2. Sensor-Activated Auto Open/Close Lid: The seat lid automatically opens and closes when activated by a sensor, promoting better hygiene and ease of use.

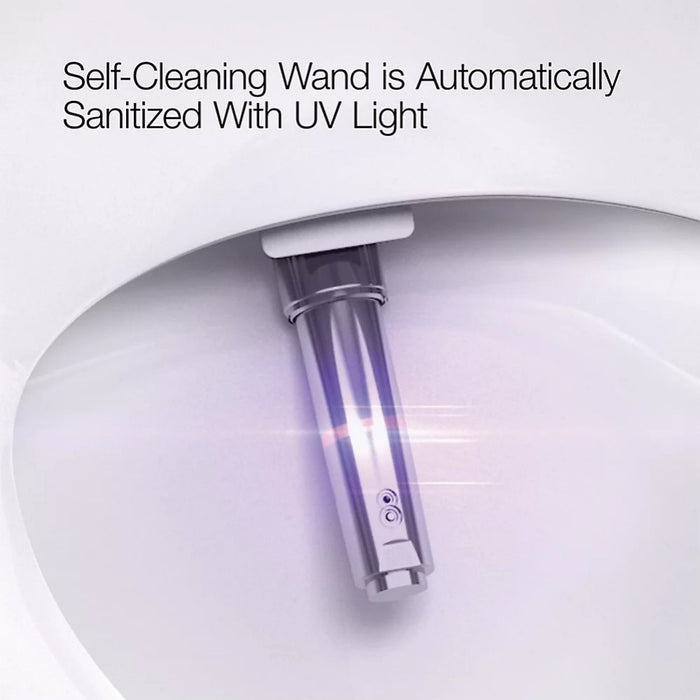

3. Self-Cleaning & UV Sanitizing Nozzle: The nozzle features self-cleaning and UV sanitizing functions for superior cleanliness.

• Comfort & Personalization

1. Ergonomic French Curve Seat: Designed with an ergonomic French curve shape for comfort, made from antibacterial material for added hygiene.
2. Instantly Heated Water with Stainless Steel Wand: Water is heated instantly and delivered through a durable stainless steel wand for a comfortable and hygienic experience.
3. Adjustable Spray Wand: Control both the water pressure and temperature for a tailored cleansing experience.
4. Select Spray Patterns: Choose between a massage or spiral spray pattern for customized comfort.
5. Heated Seat & Air Blower: Features an adjustable heated seat and air blower for enhanced comfort, with temperature controls for personal preference.

• Design & Convenience

1. Insulated In-Wall Cistern: Fully framed, insulated cistern for quieter and more efficient operation.
2. Built-in LED Night Light: Convenient LED night light provides visibility in low-light conditions.

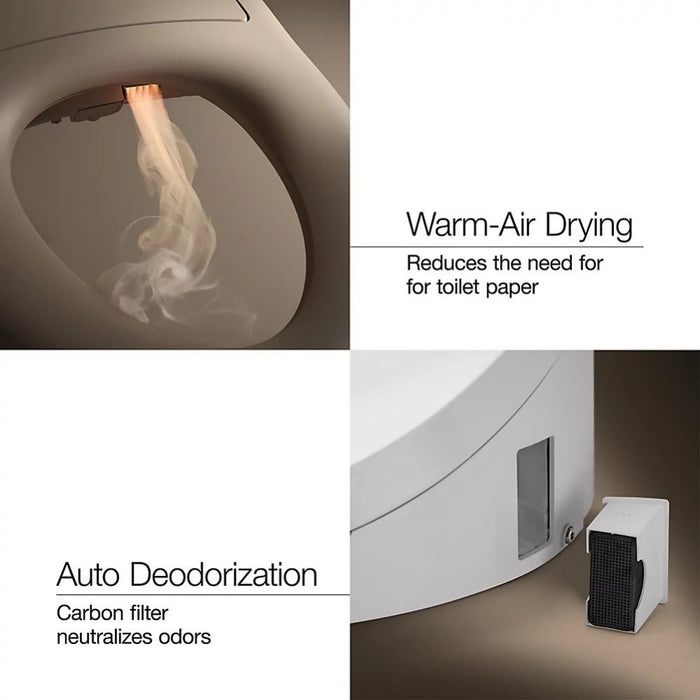

3. Deodorizer Function: Built-in deodorizer helps maintain a fresh and clean bathroom environment.

Package

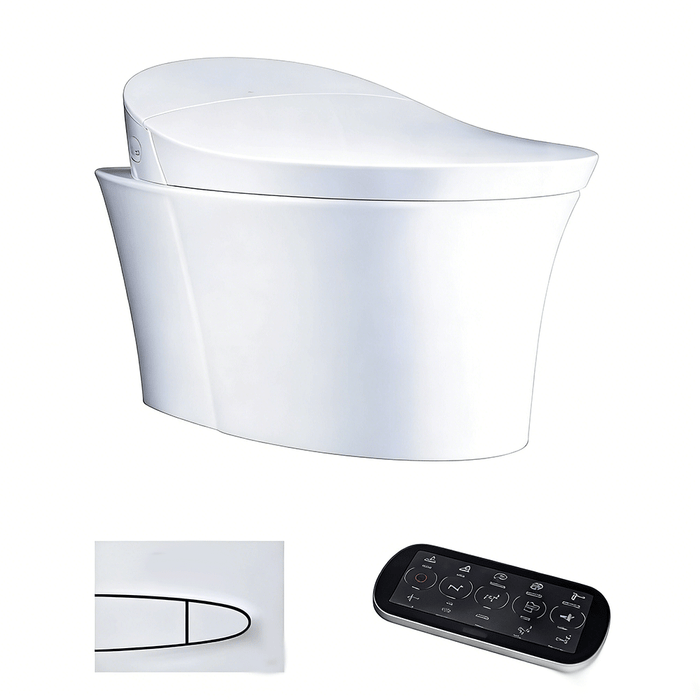

• Veil WH Pan and Faceplate * 1SET

• Hydro-Tower 500 IWT w Frame * 1PC

Installation Note

• Water supply pressure range: Min 70kPa - Max 500kpa.

• Power supply requirements: Dedicated 10A min, 220~240V AC, 50/60Hz supply with ELCB or GFCI.

• Rated power:1000W. Max instant power: 1600W.

• In-wall cistern has an adjustable height and is designed to be fixed to the floor & studs using coach screws (not supplied).

• IMPORTANT: This toilet must be installed in accordance with AS/NZS 3500.1 Plumbing and Drainage.

Warranty

• 10 years (First 5 years parts, labour and freight, year 5 to 10 parts only)

Wels

• Wels Model Name: Veil Wall Faced
• Wels Registration Number: L05660
• Water Rating: 4stars, 3.2L/min
• Full Flush: 4.32
• Half Flush: 2.92
• Average Flush To Appear On Label: 3.2
• Nominal Average Flush:3.2
