Feature

• Range: Kohler Englefield Sapphire
• Color: Gloss White

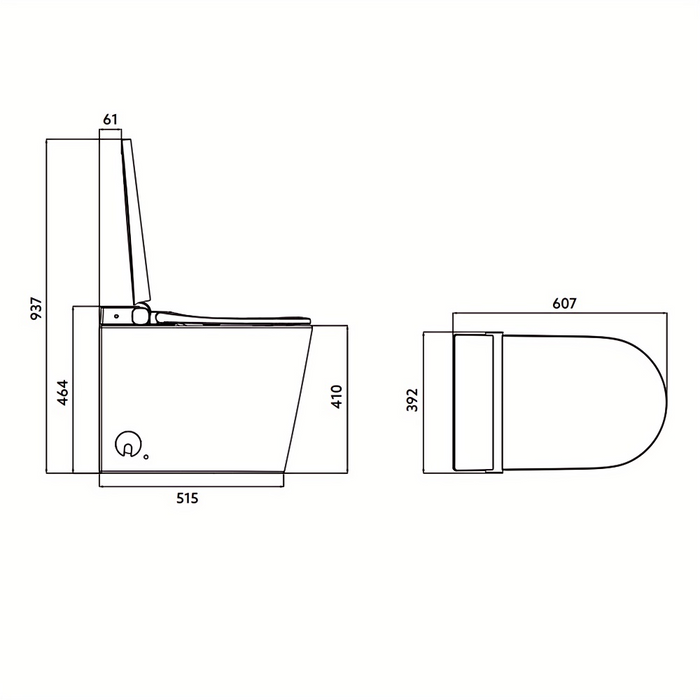

• Dimensions: 607*392*464 mm
• Material: Ceramic
• Cleaner, More Hygienic Use

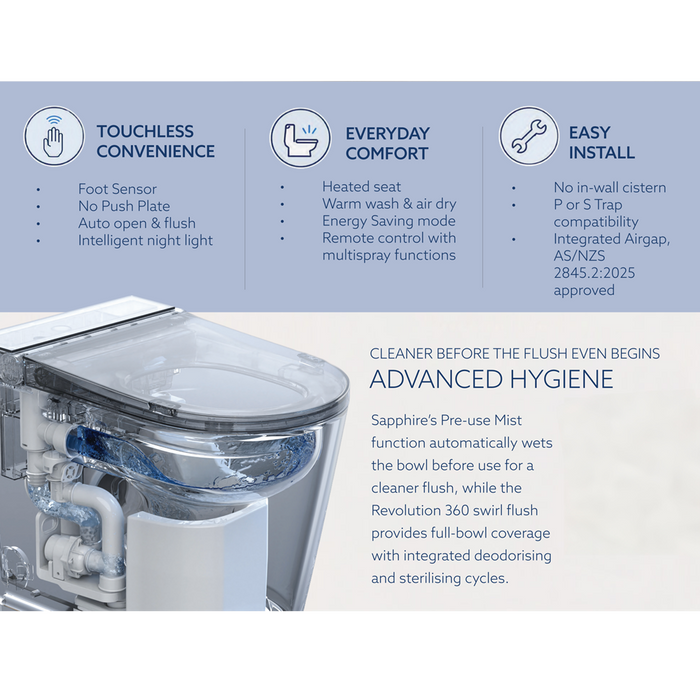

1. Pre-Use Bowl Mist helps reduce waste adhesion, making the bowl easier to clean.
2. Integrated plasma sterilisation cycle eliminates up to 99% of Staphylococcus aureus and Escherichia coli on bowl surfaces.
3. Retractable self-cleaning nozzle rinses automatically before and after each use, with antibacterial seat ring and nozzle materials.

• Powerful, Water-Efficient Flushing

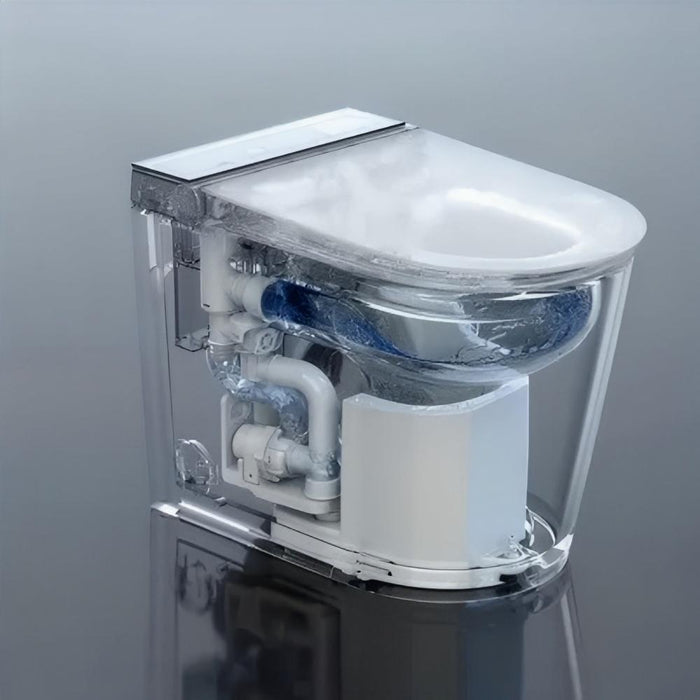

1. Rimless Revolution 360 TM vortex flushing delivers powerful, quiet whirlpool action for thorough bowl cleaning and effective waste removal.
2. 4.5L full flush / 3L half flush provides efficient water usage.

• Personalised Washing Comfort

1. Instant warm-water rear and feminine/front wash with oscillating action for comfortable everyday cleansing.
2. Adjustable water temperature, pressure, spray volume and nozzle position for a personalised wash.

• Comfort From Morning to Night

1. Heated seat with adjustable temperature control for year-round comfort.
2. Warm-air drying with adjustable temperature provides hygienic, hands-free drying.
3. Intelligent night light and bowl illumination provide convenient use in low-light conditions.

• Hands-Free Everyday Convenience

1. Automatic lid and seat opening/closing and flushing with Motion-Activated Foot Sensor for effortless hands-free use.
2. Built-in automatic deodorising system converts odours into harmless water and carbon dioxide for a fresher bathroom environment.
3. Side control panels and a clearly labelled wireless remote provide simple one-touch operation.
4. Energy Saving Mode automatically reduces power consumption when not in use.

• Safe & Practical Design

1. Seat occupancy sensor ensures functions activate only when seated, with electrical leakage and overheat protection for the water heater and seat.
2. Integral Air Break Tank / Air Gap is designed and tested to comply with AS/NZS 2845.2:2025, with IPX4 protection for bathroom environments.
3. Slim, modern floor-standing design with a compact 607mm projection and a 410mm rim height requires no in-wall cistern.

Package

• Sapphire tankless intelligent toilet* 1PC
• Remote control* 1PC
• Vario pan connector for S-Trap* 1PC
• Mounting kitsets* 1 SET

Note

• Must be installed with RCD or GFCI electrical protection, as applicable to local requirements.
• Inlet water pressure range: 80kPa-500kPa.
• Inlet water temperature range: 3 degrees C-35 degrees C.
• Maximum user weight: 150kg.
• Local authority requirements must be confirmed prior to installation. An additional Reduced Pressure Zone Device (RPZD) may still be required.
• AS 1172.1: WM-022014
• AS 1172.2: WMTS-051 / WM-022454
• AS/NZS 2845.2:2025

Warranty

• Integrated Toilet Pan: 3 years bidet and electronic parts, 10 years ceramic pan (First 5 years parts, labour and freight, year 5 - 10 parts only
• In Wall Cistern (excluding Fill and Flush valve): 15 years (First 5 years parts, labour and freight, year 5 - 10 parts only)
• Fill and flush valve: 10 years (First 5 years parts, labour and freight, year 5 - 10 parts only)
• Remote Control and Bracket: 1 years

Installation & Compatibility

• Trap Type: P-Trap / S-Trap
• P-Trap Set-out: 180mm
• S-Trap Set-out: 95-105mm
• S-Trap Connector: Vario pan connector supplied.
• Installation Type: Floor-standing; no in-wall cistern required.
• Before You Purchase: Check your existing toilet's trap type and measure the set-out to ensure compatibility with the specified dimensions. For S-Trap installations, the existing floor waste position must be compatible with the 95-105mm set-out range. For P-Trap installations, confirm compatibility with the specified 180mm set-out.
• Professional Installation: Installation should be carried out by a qualified installer in accordance with local plumbing and electrical requirements.
