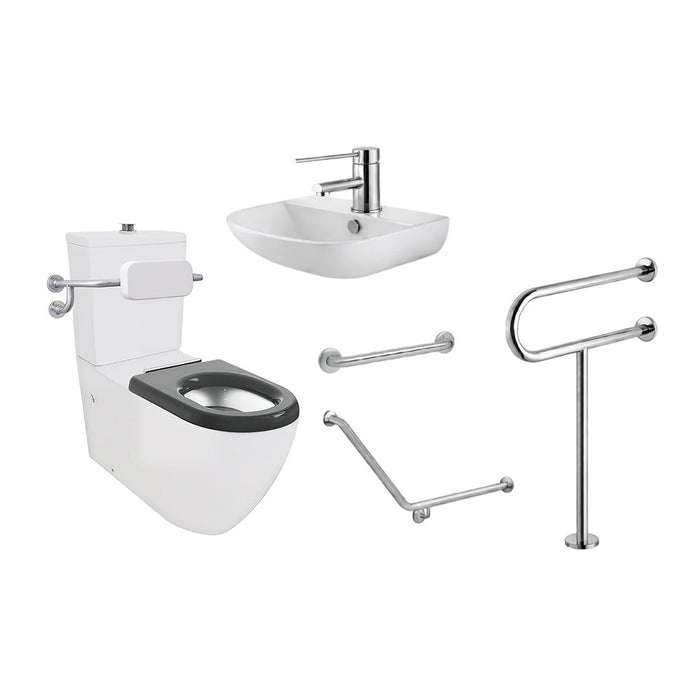

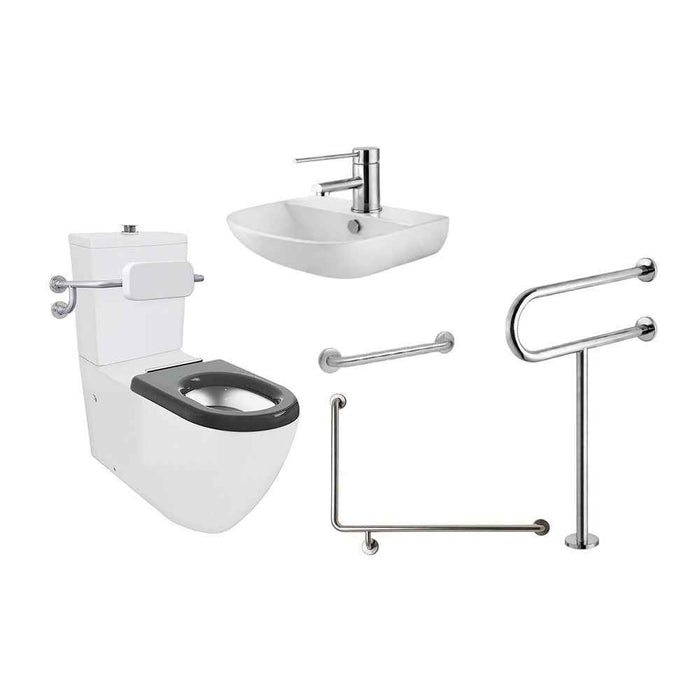

Package

• Asta Care Rimless Toilet Suite *1SET
• Basin With Mixer * 1PC
• Backrest * 1PC
• 450mm Grab Rail * 1PC
• Assist Grab Rail (Choose: 40° or 90°, Left or Right-Hand) * 1PC
• U-Shaped Assist Grab Rail * 1PC

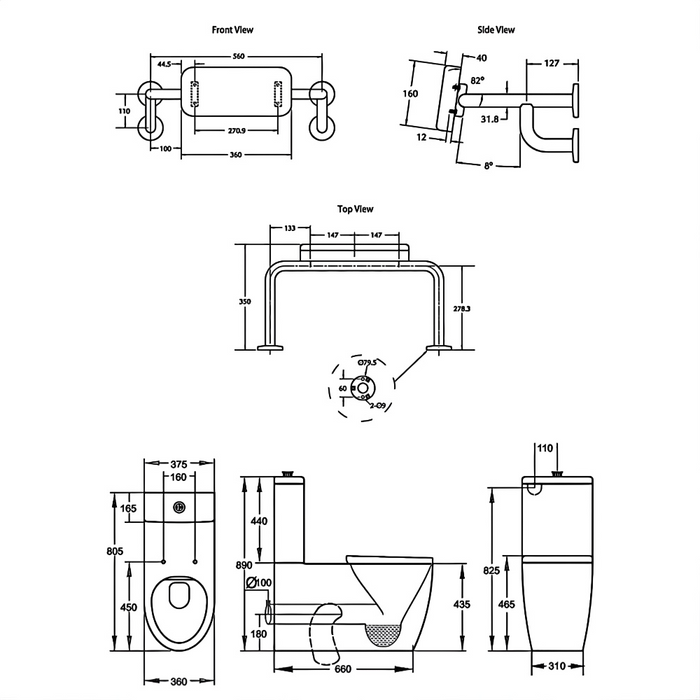

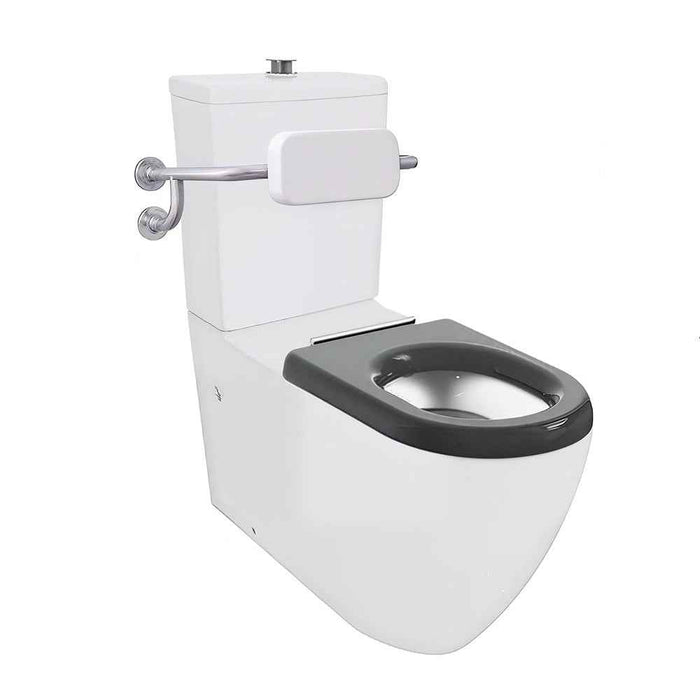

Toilet Suite

• Size: 810 × 355 × 880mm
• Rimless Flush Pan
• Back/Left and Right Bottom Inlet Cistern
• Trap-100: 180–325mm
• Single Flap Care Seat SC130
• WELS Model name: Asta Care BTW Rimless Suite
• WELS Registration Number: L05899
• Star rating 4
• Full flush 4.6 litres per full flush
• Half flush 3.0 litres per half flush
• Average flush 3.3 litres per flush

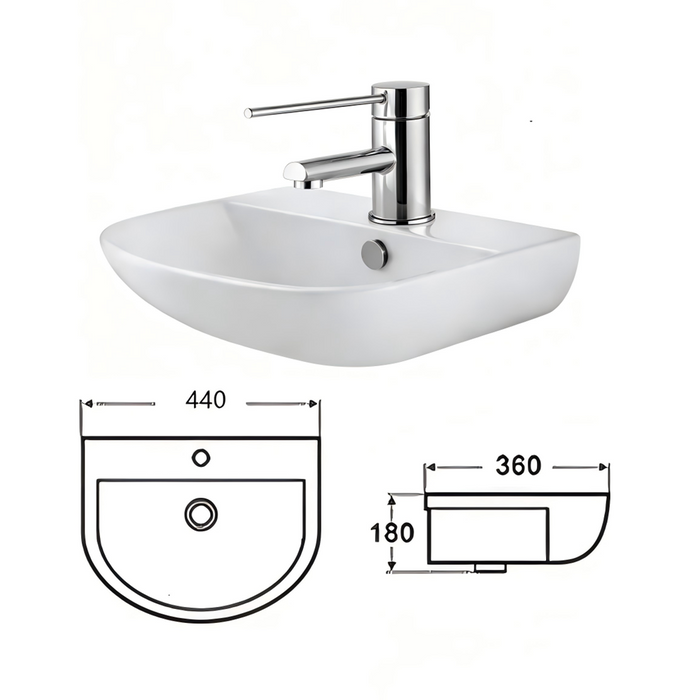

Basin With Mixer

• Size: 440 × 360 × 180mm
• Wall hung basin
• Gloss white ceramic
• 32mm overflow waste

Grab Rail Specification

• Grab Rail System

1. Complete support system designed for safety and stability
2. Includes horizontal, angled and U-shaped assist rails
3. Supports sitting, standing and transfer movement
4. Suitable for ambulant users, aged care and NDIS applications

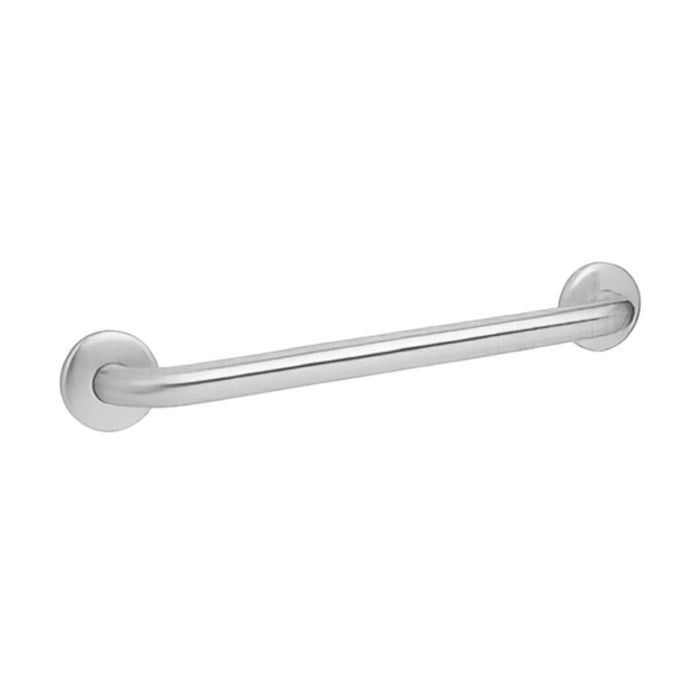

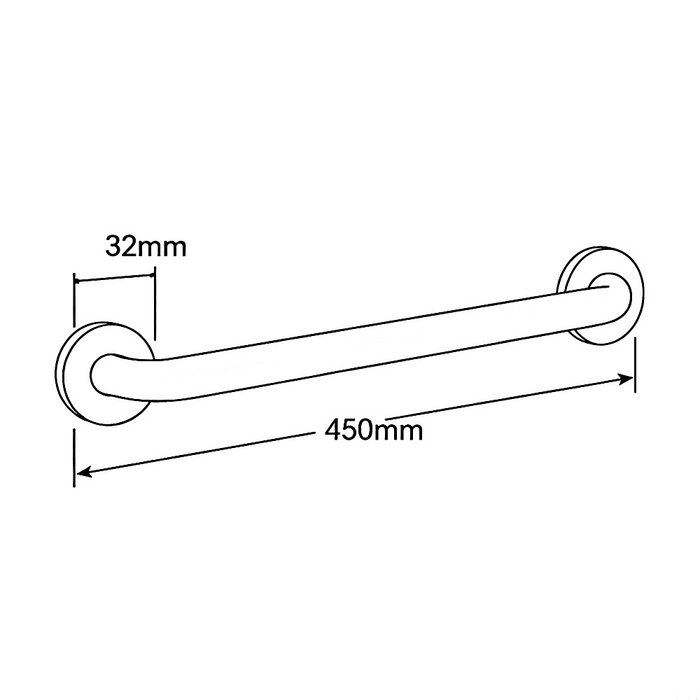

• 450mm Straight Grab Rail

1. Diameter: 32mm
2. Length: 450mm
3. Provides stable horizontal support

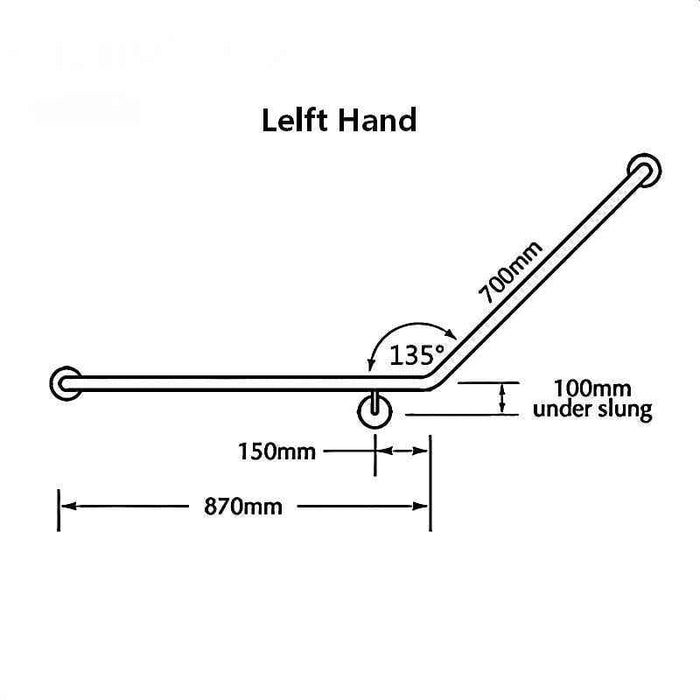

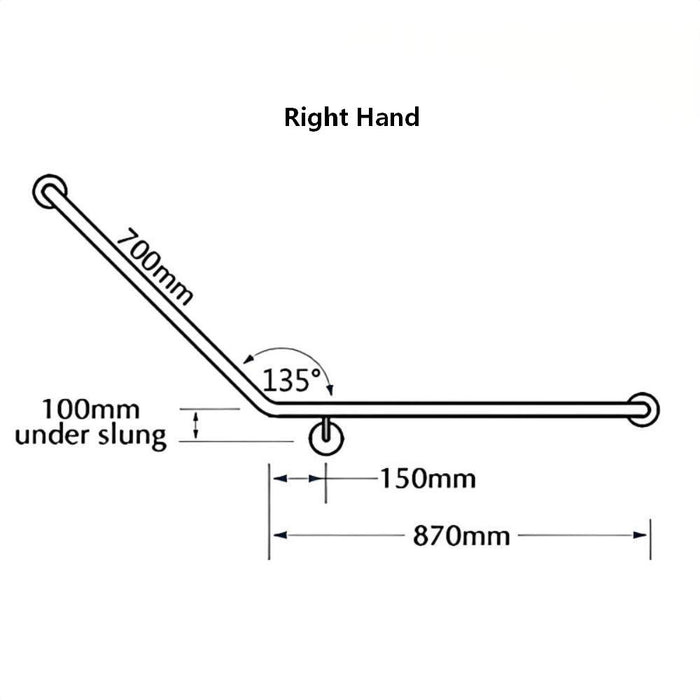

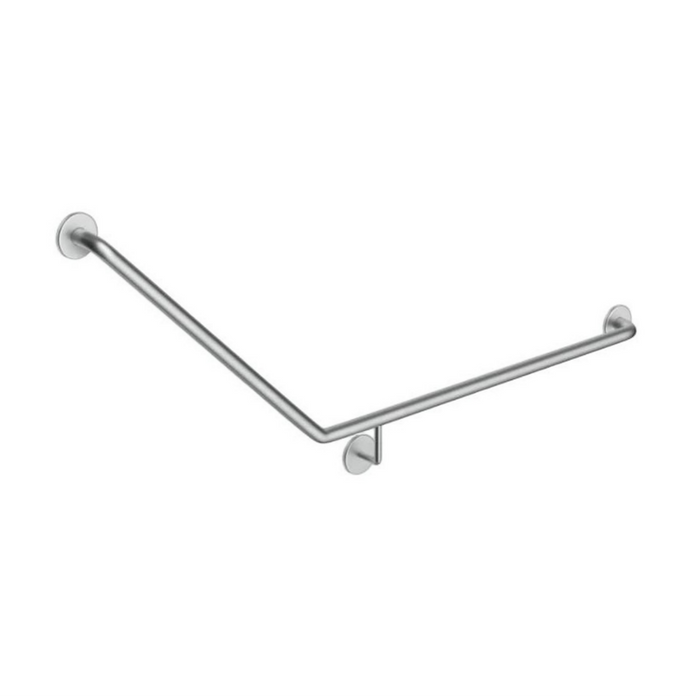

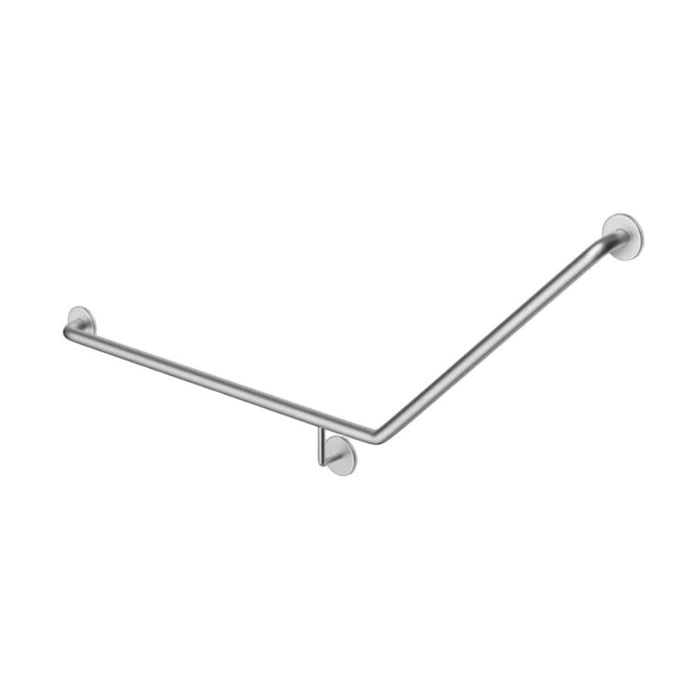

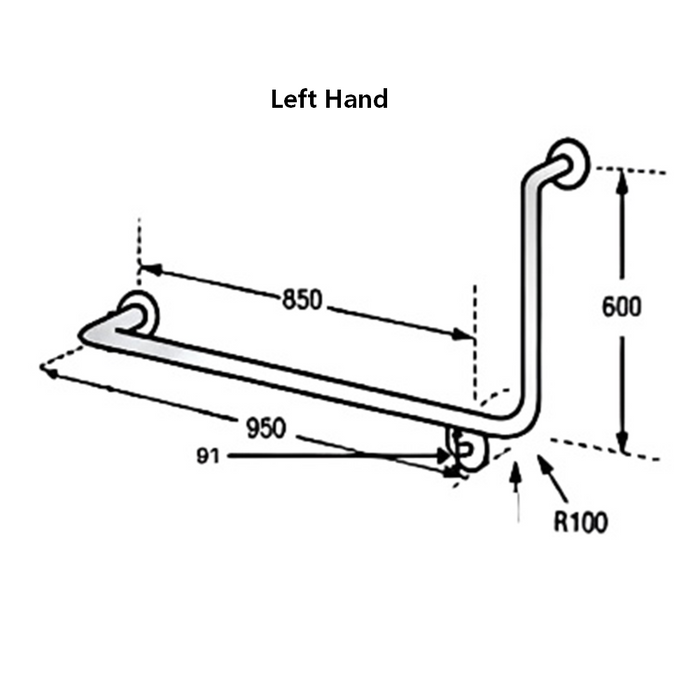

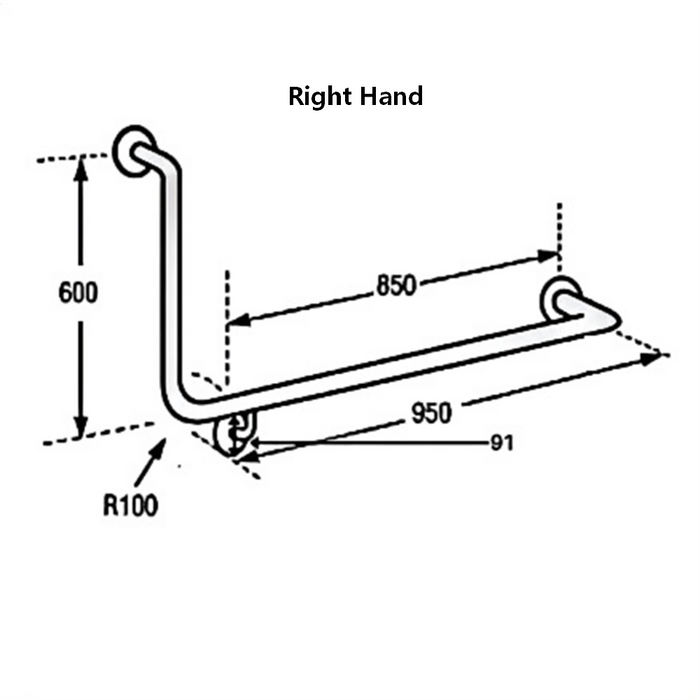

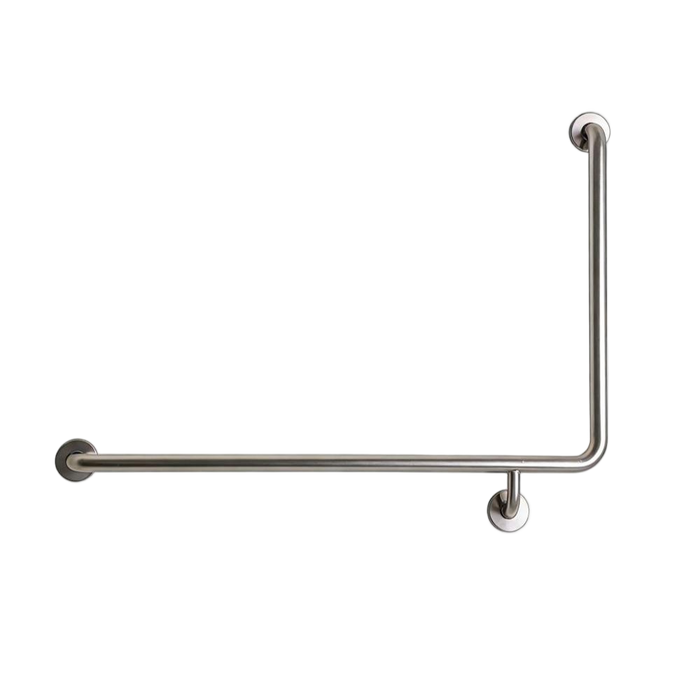

• Assist Grab Rail (40° or 90°)

1. Diameter: 32mm
2. Configuration: Left-Hand or Right-Hand
3. 40° Size: 870 × 700mm
4. 90° Size: 950 × 600mm
5. Designed to assist sitting and standing movement

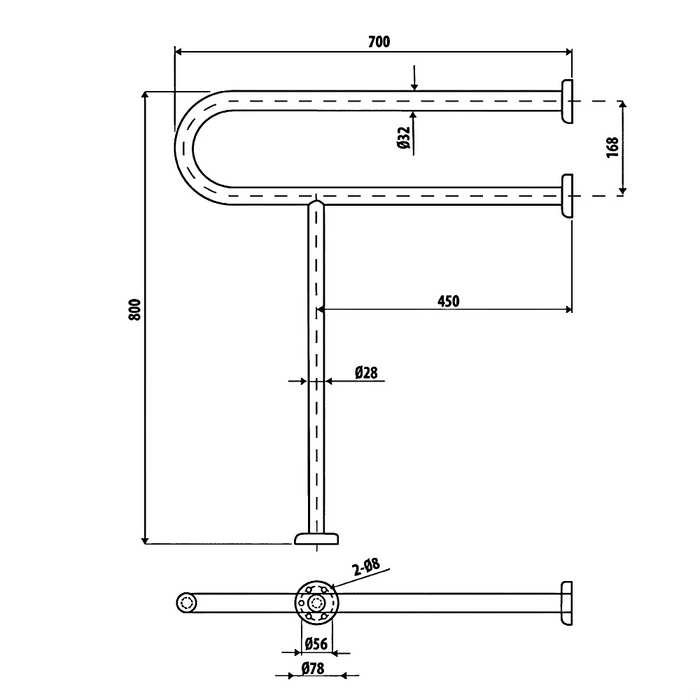

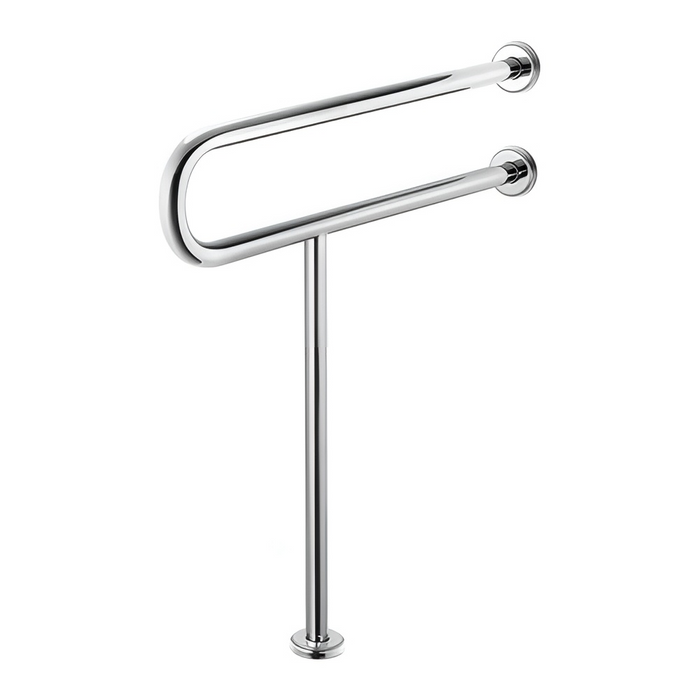

• U-Shaped Assist Grab Rail

1. Size: 700 × 800 × 32mm
2. 1.2mm thick stainless steel construction
3. Polished stainless steel finish
4. Concealed flange design
5. Provides secure two-handed support for safer transfers

Note

• Grab rail configuration varies depending on selection
• Left or Right-Hand refers to installation side when facing the toilet

Warranty

• 10 Years Replacement on Ceramic (Pans and Cisterns)
• 1 Year Replacement on Parts of Accessories
