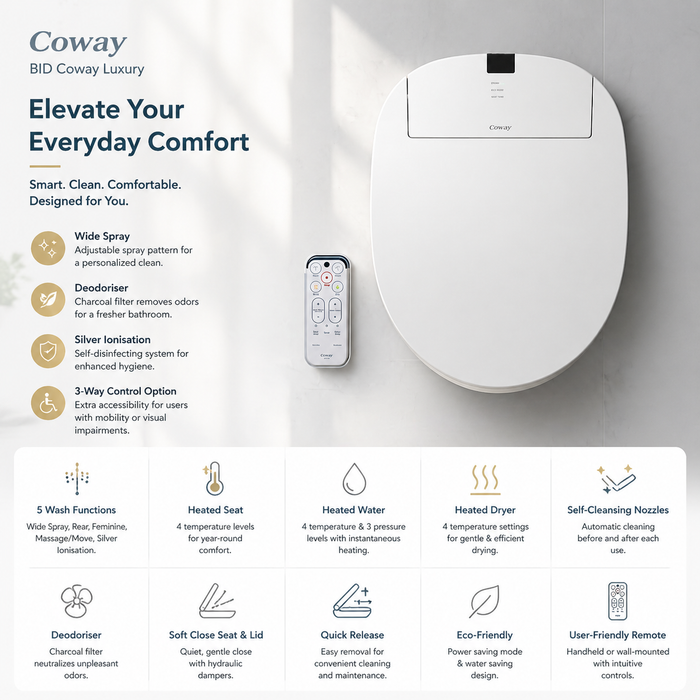

Feature

• Range: BID Coway Luxury
• Mounting: Bidet Toilet
• Power Consumption: 1200W
• Round Seat: 382*493*144mm
• Elongated Seat: 382*528*144mm
• Net Weight: 6.0~6.5kg
• Wide Spray Function: Adjustable spray pattern for a customized cleaning experience.
• Deodoriser: Removes odors with a charcoal block for a fresh bathroom environment.

• Silver Ionisation: Self-disinfecting system for enhanced hygiene.

• 3-Way Control Option: Extra accessory for users with mobility or visual impairments

Specification

• Wash Functions

1. Wide Spray: Adjustable spray pattern that can change from narrow to medium or wide, providing a customizable cleansing experience similar to a garden hose.
2. Rear Cleansing: Specially designed for posterior hygiene, ensuring thorough and effective cleansing.
3. Feminine Cleanse: Exclusive function for gentle and thorough cleansing of the vaginal area.
4. Massage/Move: Rhythmic forward and backward nozzle movement for a stimulating and more thorough cleanse.
5. Silver Ionisation: The bidet generates colloidal silver to disinfect itself with each use, enhancing hygiene.

• Remote Control

1. Handheld or Wall-Mounted: The intuitive remote can be held or mounted on the wall for convenience.
2. Easy-to-Use Interface: Simplified control panel with clear buttons to manage all functions effortlessly.
3. Mini Side Control: A small control pad on the side of the seat provides quick access to essential features like power, rear wash, and nozzle cleansing.

• Enhanced Comfort & Convenience

1. Heated Dryer: Provides warm air with four temperature settings to gently dry you after cleansing.
2. Heated Seat: The seat warms to your preferred temperature with four heat levels, ensuring maximum comfort.
3. Heated Water: Enjoy warm water with four adjustable temperature settings and three water pressure levels for optimal comfort.
4. Instantaneous Heat: Water heats immediately when the wash function is activated, ensuring the water is at the desired temperature when released.
5. Adjustable Nozzle Position: Five different positions to adjust the nozzle for precise and personalized cleaning.

• Hygiene & Maintenance

1. Self-Cleansing Nozzles: Nozzles automatically clean themselves before and after each use, minimizing cross-contamination. An additional manual cleaning option is available if needed.
2. Antibacterial Plastic: Made with antibacterial plastic to ensure the highest level of cleanliness and hygiene.
3. Deodoriser: Removes unpleasant odors by drawing air through a charcoal block, neutralizing smells. Activated when the seat sensor is engaged.
4. Soft Close Seat & Lid: Hydraulic dampers in the hinges provide a gentle, quiet close, preventing slamming.
5. Quick Release: Easily removable base plate for straightforward cleaning and maintenance, with a simple slide feature for easy access to toilet bolts.

• Inclusive Design & Accessibility

1. Wide Spray Adjustment: Choose between narrow, medium, and wide spray patterns to suit different user preferences.
2. Seat Sensor: Moisture-activated sensor ensures the bidet functions only when the seat is occupied, preventing accidental activations.
3. Accessible Remote: Large, user-friendly buttons and wall-mountable design make the remote accessible for people with limited mobility or visual impairments.
4. 3-Way Control Option: An optional accessory for individuals with severe mobility challenges or visual impairments, offering additional control options for easier use.

• Energy & Water Efficiency

1. Power Saving Mode: Automatically enters energy-saving mode when not in use.
2. Water Saving: Uses minimal water, making it eco-friendly.

Package

• Bidet BA13B Toilet Seat Cover *1PC
• Installation Kits *1SET

Note

• Bidet Compatibility: Fits both fully concealed toilets and those with seat bolt access.
• Power & Water Connections: The power lead (1.5m) is on the RHS, and the water pipe is on the LHS. This configuration is fixed.
• Requirements: Ensure access to a wall-mounted tap, power outlet within 1.5 meters, and a plumber for installation.
• Quick-Release Base Plate: Designed for easy installation on various toilet types.

Installation

• PDF Install Step by Step
• Additional Installation Products Required:

1. If TAP is on RHS: 1m of White Pipe and 1x Elbow Kit.
2. If TAP is in the Cistern: Internal Fitting Kit and 1x Elbow Kit.
3. If installed on a bottom fixing toilet with arms/rails & 80mm spacer: Extension Brackets.
4. If installed on a top fixing toilet: Top Fixing Bolts.
5. If installed on a top fixing toilet with a 50mm spacer: Extra Long Top Fixing Bolts.
6. If installed on a top fixing toilet with Arms/Rails: Top Fixing Bolts.
7. If installed on a top fixing toilet with a 50mm Spacer and Arms/Rails: Extra Long Top Fixing Bolts.
8. If installed on a top fixing toilet with an 80mm Spacer: Extra Long Top Fixing Bolts & Stabilisers.
9. If installed on a top fixing toilet with an 80mm Spacer & Arms/Rails: Extra Long Top Fixing Bolts, Stabilisers, and Extension Brackets.

Warranty

• 2 Year Limited Warranty.
• (1 Year Standard Manufacturer s Warranty + 1 Year Complimentary Parts & Labour Warranty)
