Feature

• Certificate: SAA
• Product Size (mm)(W D H):895 x 522 x (566-905)mm
• Voltage:220-240V 50Hz
• Motor Power(W): 294W
• IEC Air Flow (m³/h)(IEC 61591): 1180
• Illumination Power (W1): 32
• Gear: Boost+3
• Noise Level (Sones): High speed 56 Low speed 39
• Max Static Pressure(Pa): 900
• LED Light Power(W): 3Wx2

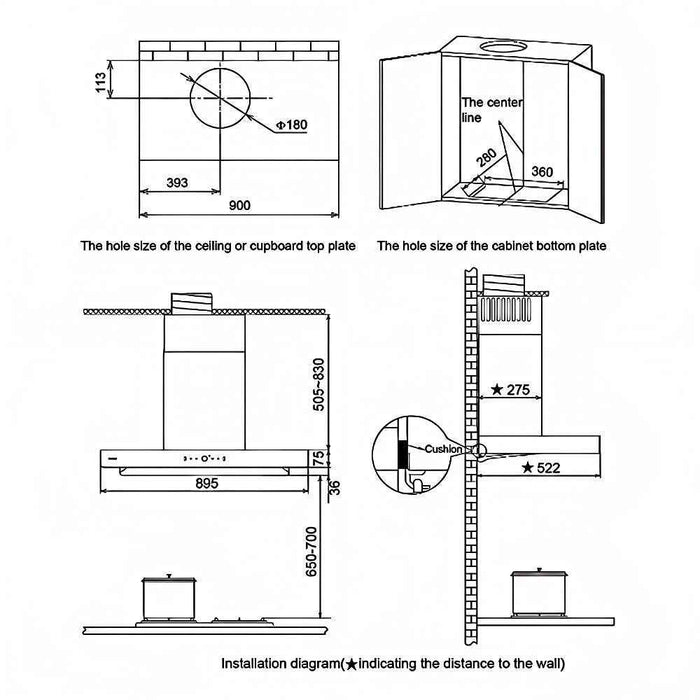

• Minimum installation height(mm): Distance between hob and range hood : 650
• Minimum installation height(mm): 170
• One Touch Turbo Function: Y ,Auto-delay Function: Y
• Carbon Filter Replacement Reminder: Y , Control : Hand-wave and Touch
• Net Weight (kg): 22.5, Gross Weight (kg): 29
• Packing-Box Size (mm): 1005*605*630,  Volume (m³): 0.243
• IEC 61591: International standard for air flow testing

With Decoration Cover

• Designed for open kitchens without overhead cabinets
• Sleek cover conceals exhaust pipe for a clean, modern look

Core Advantages

• Premium Design - Crafted with SCHOTT Ultra-White Glass for a sleek, modern look that elevates kitchen aesthetics.
• Advanced Smoke Capture - AIS butterfly wing ring suction plate expands coverage, bringing smoke control closer to the 580mm golden zone and achieving four-sided extraction, even for outer burners.
• Powerful Suction - Original factory-designed DC variable frequency motor delivers up to 1180m³/h airflow and an “instant suction” mode to handle heavy stir-fry fumes with ease.
• Quiet & Strong - Up to 900Pa static pressure with infinitely variable speed; bionic wing impeller, aerospace-grade noise reduction, and Nautilus air duct ensure smooth exhaust with minimal noise.
• Clean & Fresh Air - Exclusive triple oil filter separates grease effectively, reducing particulates up to 2x more than standard hoods, and maintaining a fresher kitchen environment.
• Easy Installation - Simplified steps make setup convenient, with the option for DIY installation.

Package

• RangeHood *1 Set

Note

• IEC:International Standard for Air Volume Testing
• Filter: Wind-like Surround Plate + Grease Filter + Carbon Filter(purchase separately)

Warranty

• 2 years On-Site Warranty (including parts and labour);
• motor (all models) and adjustable elevation rods are covered by a 10 years (parts only) warranty.
