Feature

• Certificate: SAA

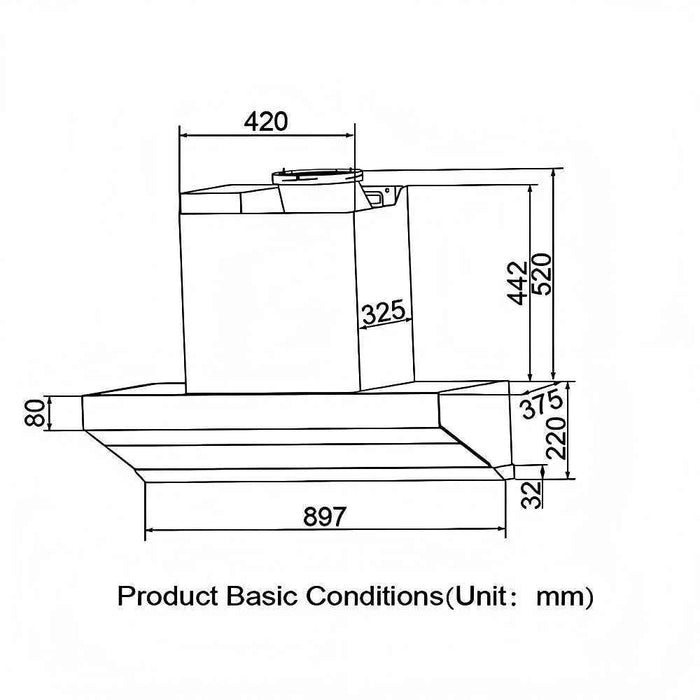

• Product Size (mm)(W D H):897 x 375 x (740-1070)mm
• Voltage:220-240V 50Hz
• Motor Power(W): 358W
• IEC Air Flow (m³/h): 1510
• Illumination Power (W1): 5w1
• Gear: Turbo+2
• Noise Level (Sones): High speed 49 Low speed 40
• Max Static Pressure(Pa): 1170
• LED Light Power(W): 1.5W*2
• Minimum installation height(mm): Distance between hob and range hood : 650
• Ducting Size(mm): 170
• Input Power:361W, Motor:BLDC
• Capture Shield:Automatic smoke barrier plate
• Control Type:Intelligent Wave Control + Touch
• Delay Shutoff:2min
• Intelligent Air Management:Y
• No. of Speeds Fan Control: 2 Speed + Auto Mode
• IEC: International standard for Air Volume Testing

Core Advantages

• Wide Automatic Smoke Barrier Plate – 900mm-wide plate intercepts and extracts smoke before it spreads.
• Powerful BLDC Motor – Brushless DC inverter motor with FOC algorithm delivers up to 1170Pa static pressure and 1510m³/h airflow for efficient smoke removal.
• Cooking Smoke Highway – Nautilus Air Passageway with 3-point Extraction System reduces wind resistance and noise, ensuring smooth, uninterrupted smoke removal.
• Intelligent Wave Control – Hands-free activation with a simple wave, no button needed.

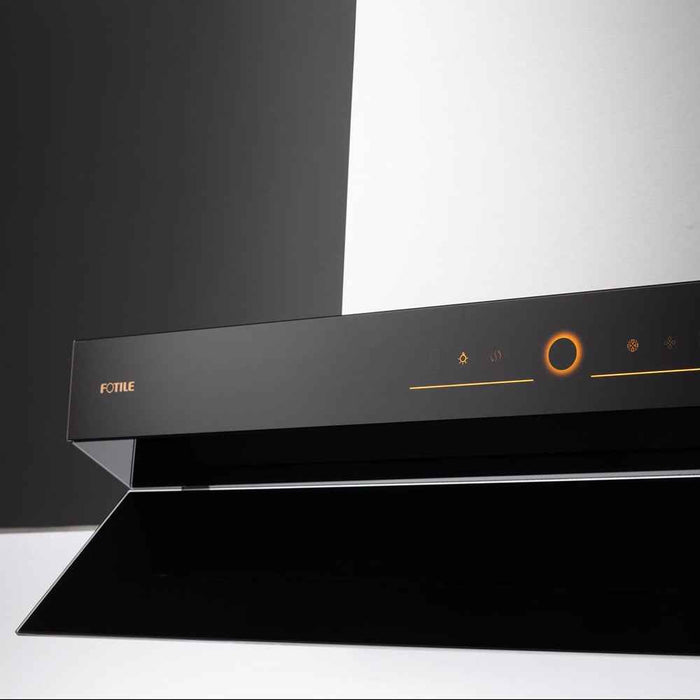

• Elegant Flush Design – Control panel aligns seamlessly with the cabinet surface, ensuring a smooth and stylish profile.
• Intelligent Air Management – Automatically detects harmful gases and ventilates, keeping kitchen air fresh even when unattended.
• Soft Sound Technology – Wispower System lowers noise to as little as 40dB while maintaining high suction power.

Package

• RangeHood *1 Set

Note

• IEC61691:International standard for air volume testing

Warranty

• 2 years On-Site Warranty (including parts and labour);
• motor (all models) and adjustable elevation rods are covered by a 10 years (parts only) warranty.
