Feature

• Certificate: SAA

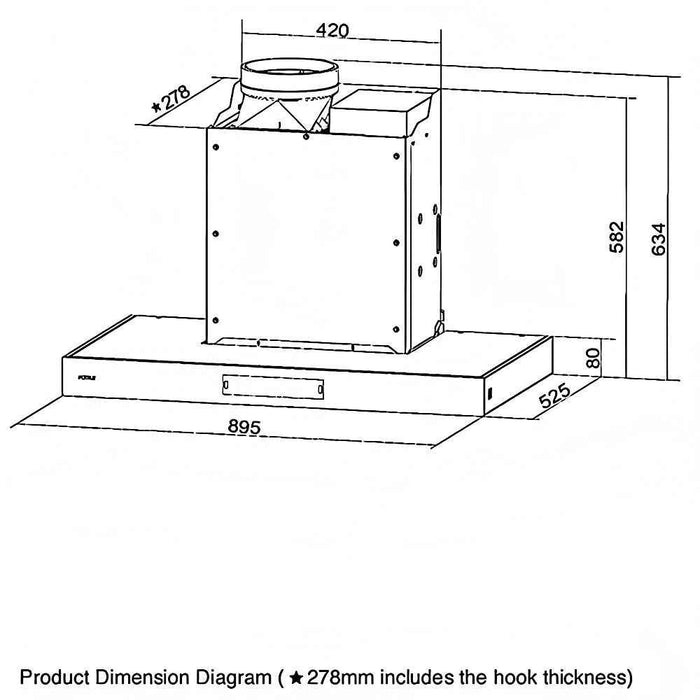

• Product Size (mm)(W D H):895x522x634mm
• Voltage:220-240V 50Hz
• Motor Power(W): 355W
• IEC Air Flow (m³/h)(IEC 61591): 1280
• Illumination Power (W1): 32
• Speed Levels: Turbo+3
• Noise Level (Sones): High speed 53 Low speed 37
• Max Static Pressure(Pa): 1130
• LED Light Power(W): 5

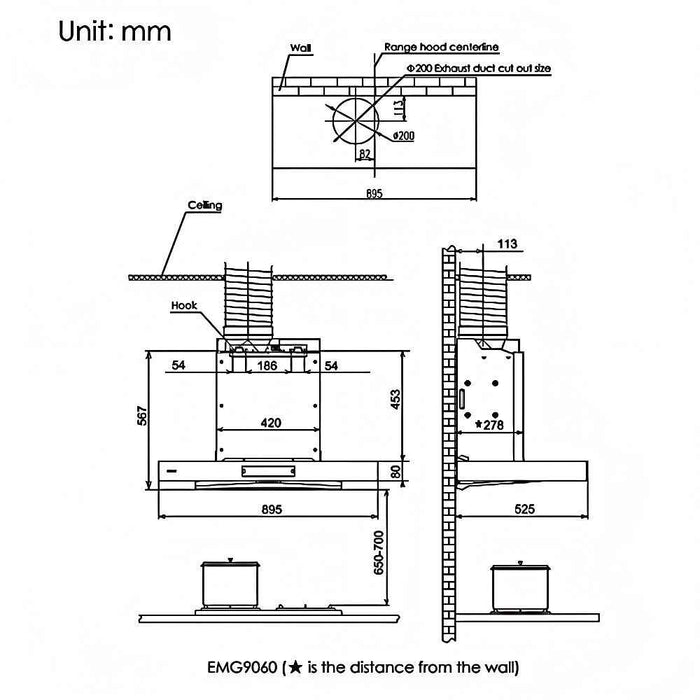

• Minimum installation height(mm): Distance between hob and range hood : 650
• Ducting Size(mm): 185
• One Touch Turbo Function: Y ,Auto-delay Function: Y
• Carbon Filter Replacement Reminder: Y , Control : Hand-wave and Touch
• Net Weight (kg): 38, Gross Weight (kg): 35
• Packing-Box Size (mm): 1005*705*615, Volume (m³): 0.463
• IEC 61591: International standard for air flow testing

With Decoration Cover

• Designed for open kitchens without overhead cabinets
• Sleek cover conceals exhaust pipe for a clean, modern look

Core Advantages

• Surround Suction Technology - Wing-like panel expands smoke capture from a single point to full-area extraction.
• Powerful & Quiet - Next-generation Silencore fan system with 1280m³/h airflow, 1130Pa static pressure, and noise as low as 37dB.
• Premium Build - Crafted from durable 304 stainless steel with a sleek, modern finish.
• Smart Operation - Hands-free wave control and Air Manager for automatic air quality monitoring and protection.
• Enhanced Lighting - Skyline full-area LED lighting with three dimmable levels.
• Easy Maintenance - Seamless, smooth-surface design for effortless cleaning.

Package

• RangeHood *1 Set

Note

• IEC:International Standard for Air Volume Testing
• Filter: Wind-like Surround Plate + Grease Filter + Carbon Filter(purchase separately)

Warranty

• 2 years On-Site Warranty (including parts and labour);
• motor (all models) and adjustable elevation rods are covered by a 10 years (parts only) warranty.
