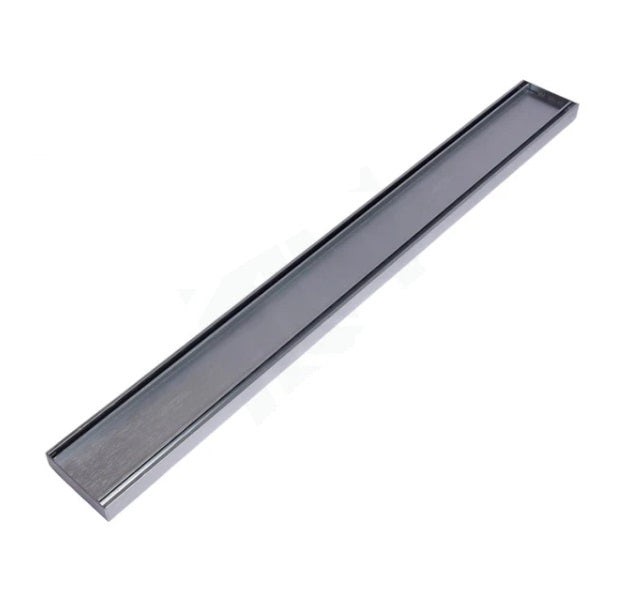

300-5600mm Lauxes Shower Grate Drain Aluminium Slimline Tile Insert Indoor Outdoor Silver Surface

Silver Tile Insert Shower Floor Grate 300 - 5600mm Waste Drain

Lauxes Floor Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor and outdoor wet area. With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces

Specifications:

Any size from 300mm.
Size (mm): (300-5600)L x 100W x 26H
Material: Triple Anodised Aluminium
Applications: Indoor and Outdoor
4 Waste Sizes: 40/50/72/80mm
Color: Silver
Rust proof
Lightweight
Top grate easily removed for cleaning
Different colour choices to suit application
Easy to cut to desired length
Easy to clean (easy to roll out system)
No welding required
No major plumbing involved as waste can be positioned anywhere along the bottom tray
Perfect use for indoor/outdoor applications
Lifetime: Rustproof Warranty

Package Contents:

1 x Floor Drain
1 x Waste
1 pair of end cap

NOTE: Price is to be charged $25 per every 100mm. Free shipping for lengths below 1000mm, please contact us for a shipping quote for lengths between 1100-5600mm. Cutting & Assembly Instructions: For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Please Note:

Our 'Lauxes' shower grates are 'custom cut' to size. As a 'Special Customer' order, item's cannot be returned once they are cut to your specified size unless there is a manufacturer's fault, defect or stock arrives damaged.
Discrepancy of the length will exist as the grates are manually cut.
Price is to be charged per every 100mm unit
