300-5600mm Lauxes Black Shower Grate Drain Any Size Indoor Aluminium Midnight Slimline Tile Insert

300-5600mm Lauxes Black Aluminium Slimline Tile Insert Floor Grate Drain

Lauxes Floor Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor and outdoor wet area. With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces

Specifications:

Any size from 300mm.

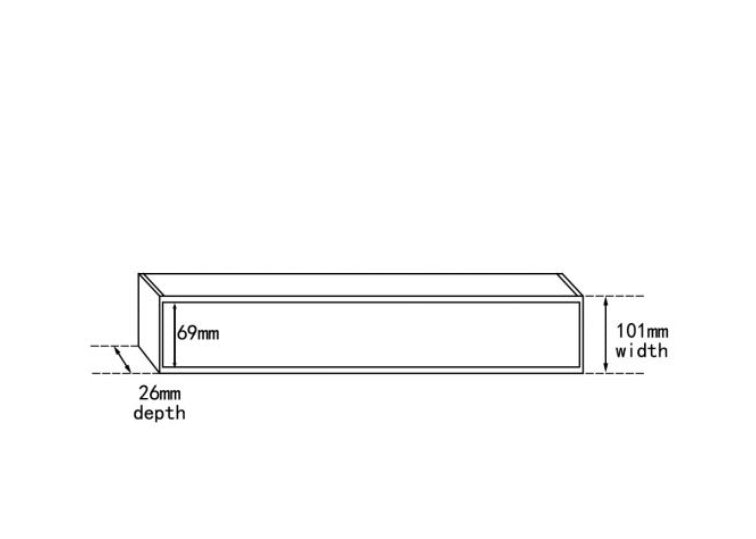

Size (mm): (300-5600)L x 100W x 26H
Material: Triple Anodised Aluminium
Applications: Indoor and Outdoor
4 Waste Sizes: 40/50/72/80mm
Color: Black
Rust proof
Lightweight
Top grate easily removed for cleaning
UV Stable – All colours come UV stable, meaning they can be installed both indoors or outdoors with no worries that it will discolour or fade!
Anodised Aluminium – All of grates are triple-bath anodised, giving it a 26-micron protection.
Easy Roll-Out Feature - easily roll the insert/top tray out for hassle-free cleaning!
Lifetime: Rustproof Warranty

Package Contents:

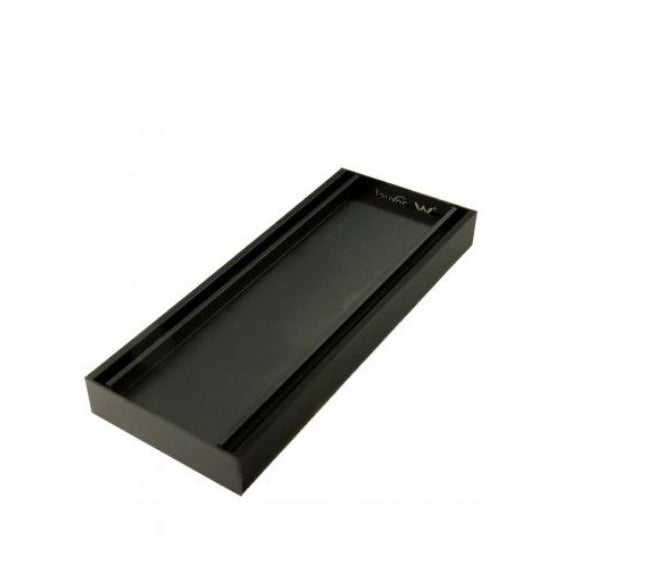

1 x Floor Drain
1 x Waste

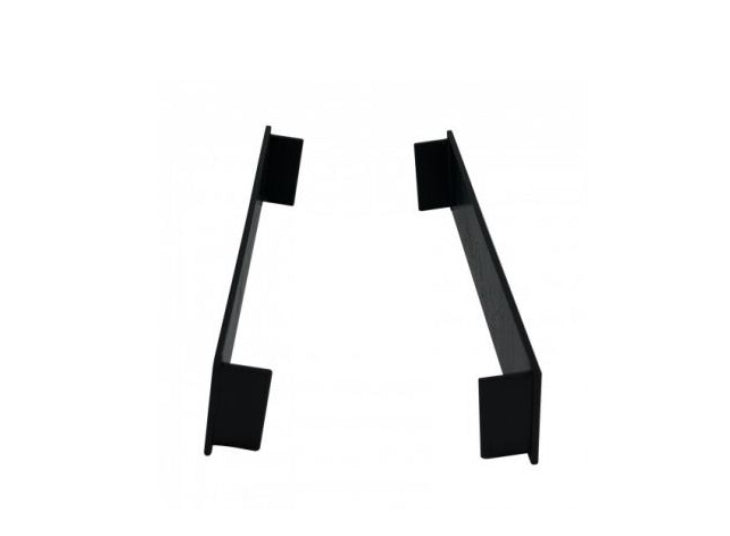

1 pair of end cap

NOTE: Price is to be charged $27 per every 100mm. Free shipping for lengths below 1000mm, please contact us for a shipping quote for lengths between 1100-5600mm. Cutting & Assembly Instructions: For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Please Note:

As a 'Special Customer' order, item's cannot be returned once they are cut to your specified size unless there is a manufacturer's fault, defect or stock arrives damaged.
