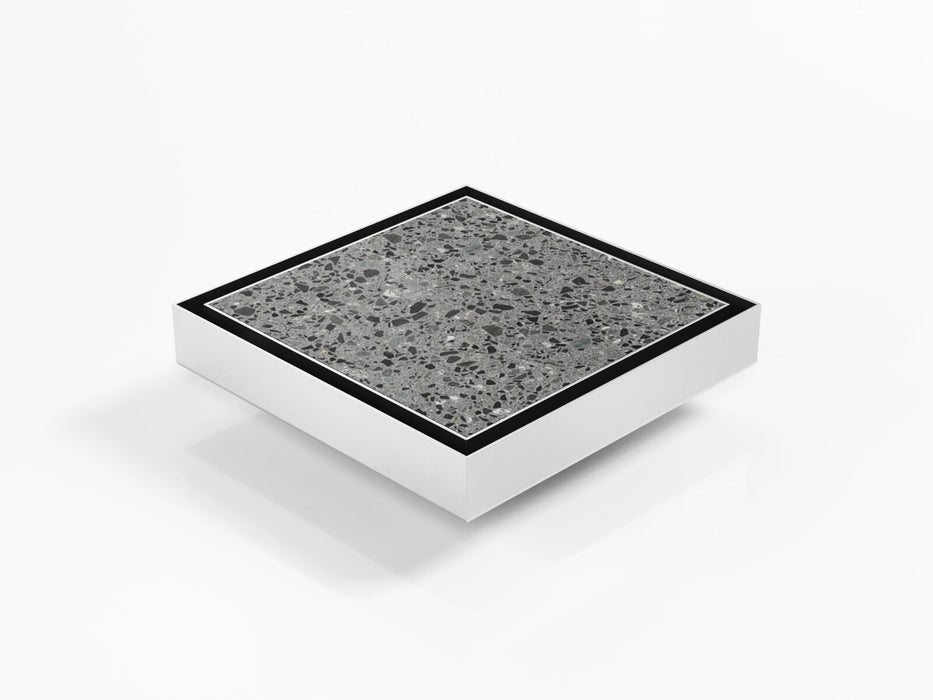

The Ti is a Tile Insert grate, a popular style for modern architecture due to it's discreet integration in tiled floor applications. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | SQ100Ti |
| Range | 100mm |
| Kit Type | Unit |
| Channel Width | 130mm |
| Channel Depth | 23mm |
| Channel Material | 316 Stainless Steel |
| Watermark | check |
| Compatible Pipes | DN80, DN100 |
| Suits Tile Depth | Tiles up to 12mm |
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Bathroom Guide |
||
| SQ100Ti Bathroom Guide | (217.3 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Floor Waste Stormtech Square Tile Grate | (584.9 KB) | ZIP | Download |
Square Floor Waste
The flow rates depend on the outlet size and the type of grate (grate or tile insert).
All grate styles: 0.5l/s (for DN50, DN80 and DN100)
Tile Inserts: 0.38l/s (for DN50, DN80 and DN100)
