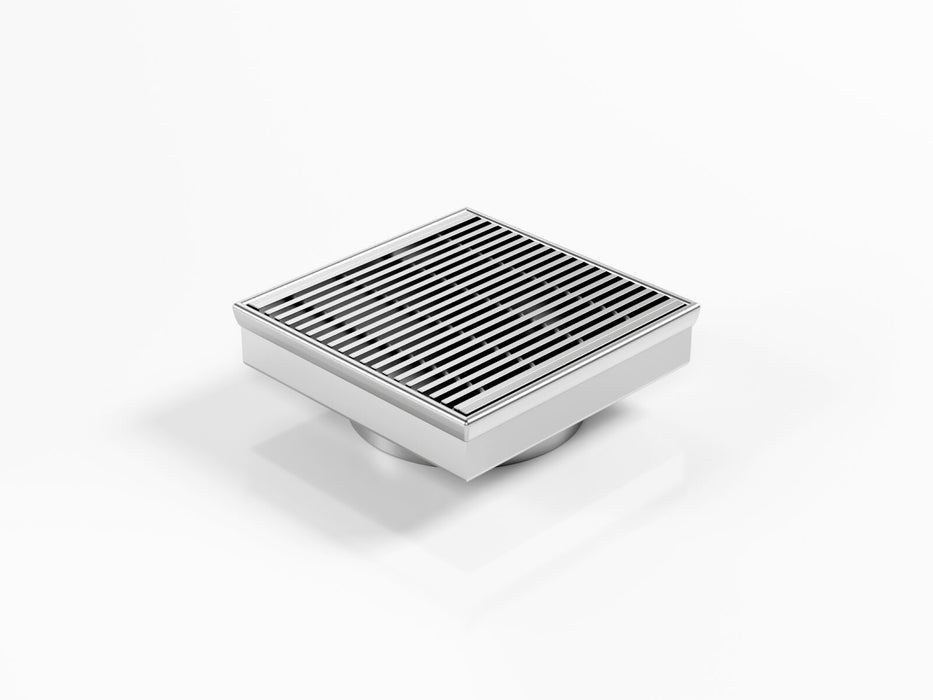

The AR is the original premium architectural grate featuring a 2mm wedge wire/2.5mm gap, constructed from low-carbon 316 marine grade stainless steel
| Product Code | SQ100AR |
| Range | 100mm |
| Kit Type | Unit |

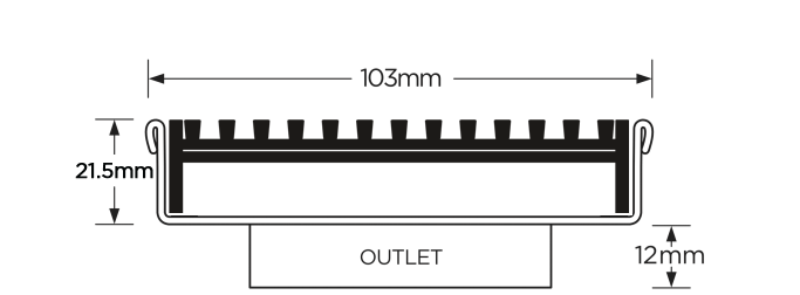

| Channel Width | 103mm |
| Channel Depth | 21.5mm |
| Channel Material | 316 Stainless Steel |
| Watermark | check |
| Compatible Pipes | DN50, DN80, DN100 |
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Bathroom Guide |
||
| SQ100 Bathroom Guide | (204.5 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Floor Waste Stormtech Square SS Grate | (907.6 KB) | ZIP | Download |
Square Floor Waste
The flow rates depend on the outlet size and the type of grate (grate or tile insert).
All grate styles: 0.5l/s (for DN50, DN80 and DN100)
Tile Inserts: 0.38l/s (for DN50, DN80 and DN100)
