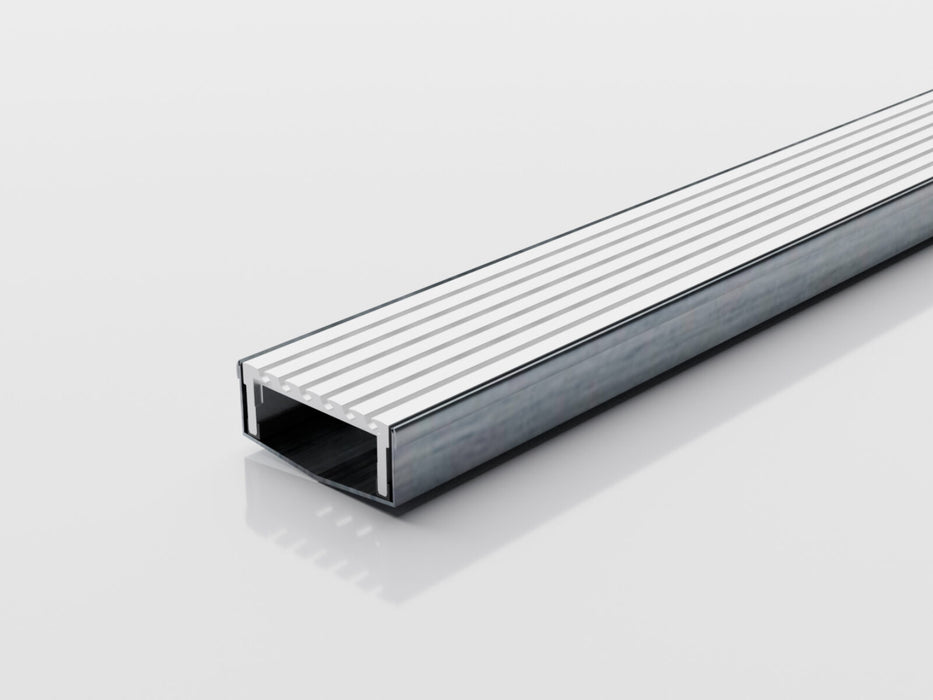

The AA Wave Grate is a Good Design Award winning innovation. It's unique wave profile is cleverly designed to conceal the drainage channel without sacrificing hydraulic performance. Made from low embodied carbon ASI certified anodized aluminium, it's lightweight while offering excellent strength and is suited to all indoor and outdoor applications.
| Product Code | 65AAi25 |
| Range | 65mm |
| Kit Type | Modular Kit |
| Channel Width | 72mm |
| Channel Depth | 27mm |
| Length(s) | 900 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm, 1900 mm, 2000 mm |
| Channel Material | 316 Stainless Steel |
| Watermark | check |
| Compatible Pipes | DN40, DN50, DN65 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Assembly Guide (Over 2m) |
||
| 65i over 2m kits 9 0 | (188.9 KB) | Download |
Assembly Guide |
||
| 65i25 Assembly 3 | (93.9 KB) | Download |
Bathroom Guide (Under 2m) |
||
| 65i25 bathroom Kits under 2m 5 | (586.8 KB) | Download |
Concrete Guide |
||
| 65i25 Concrete 0 0 | (266.6 KB) | Download |
Threshold Guide |
||
| 65i25 threshold 0 0 | (134.6 KB) | Download |
Timber Floor Guide |
||
| 65i25 timber 0 0 | (218.4 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Modular Kit | (914.8 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
