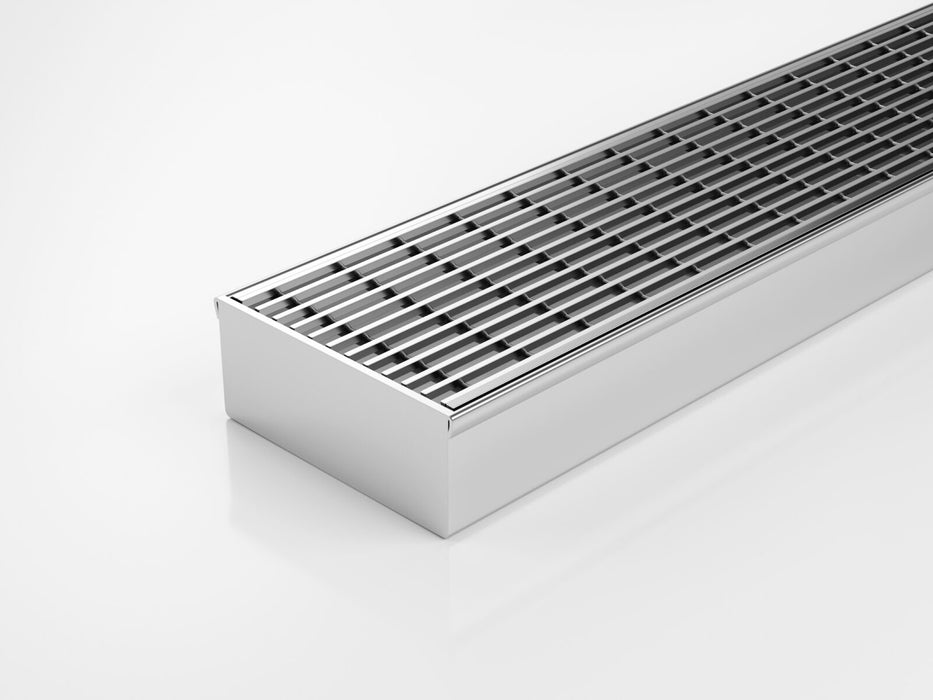

The Standard (TR) wedge wire grate style, feature a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance. Made from 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 100TRi40MTL |
| Range | 100mm |
| Kit Type | Made to length |

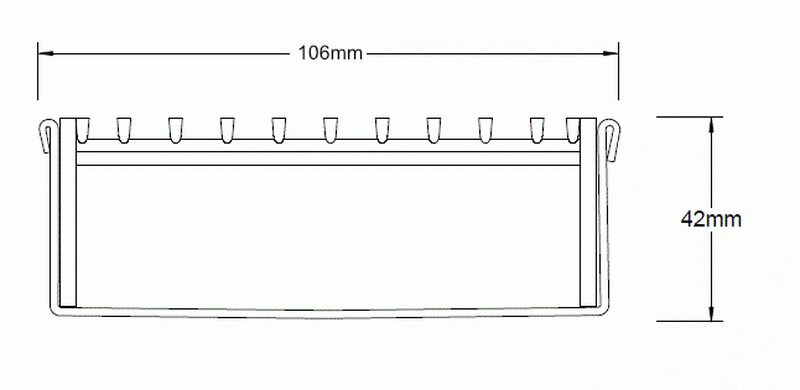

| Channel Width | 106mm |
| Channel Depth | 42mm |
| Channel Material | 316 Stainless Steel |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
| Made-to-Length Project Form | Download | |
| Made-to-Length Mitre Joint Form | Download | |
Bathroom Guide |
||
| 100i40 Bathroom Guide | (230.8 KB) | Download |
Concrete Guide |
||
| 100i40 Concrete Guide | (189.3 KB) | Download |
Threshold Guide |
||
| 100i40 Threshold Guide | (116.6 KB) | Download |
Timber Floor Guide |
||
| 100i40 Timber Guide | (143.1 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Made To Length | (913.2 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
| File | File Size | Download |
|---|---|---|
| Stormtech MTL Order Form | (412.8 KB) | Download |
| Stormtech MTL Multiple Outlets Order Form | (539.9 KB) | Download |
