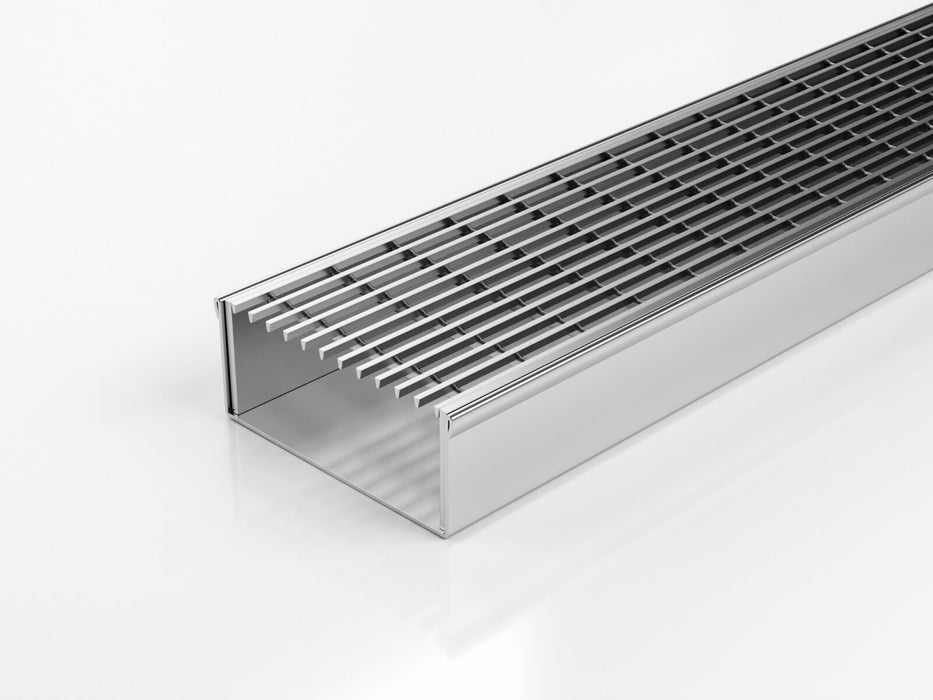

The Standard (TR) wedge wire grate style, feature a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance. Made from 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 100TRi40 |
| Range | 100mm |
| Kit Type | Modular Kit |

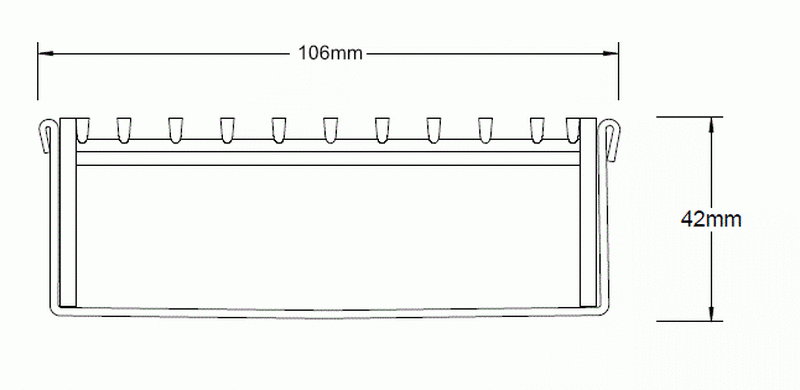

| Channel Width | 106mm |
| Channel Depth | 42mm |
| Length(s) | 900 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm, 2000 mm, 2200 mm, 2500 mm, 3000 mm, 3200 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000 mm |
| Channel Material | 316 Stainless Steel |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Assembly Guide (Over 2m) |
||
| 100i40 Assembly Guide (Over 2m) | (219.7 KB) | Download |
Bathroom Guide |
||
| 100i40 Bathroom Guide | (545.6 KB) | Download |
Concrete Guide |
||
| 100i40 Concrete Guide | (189.3 KB) | Download |
Threshold Guide |
||
| 100i40 Threshold Guide | (116.6 KB) | Download |
Timber Floor Guide |
||
| 100i40 Timber Guide | (143.1 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Modular Kit | (914.8 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
