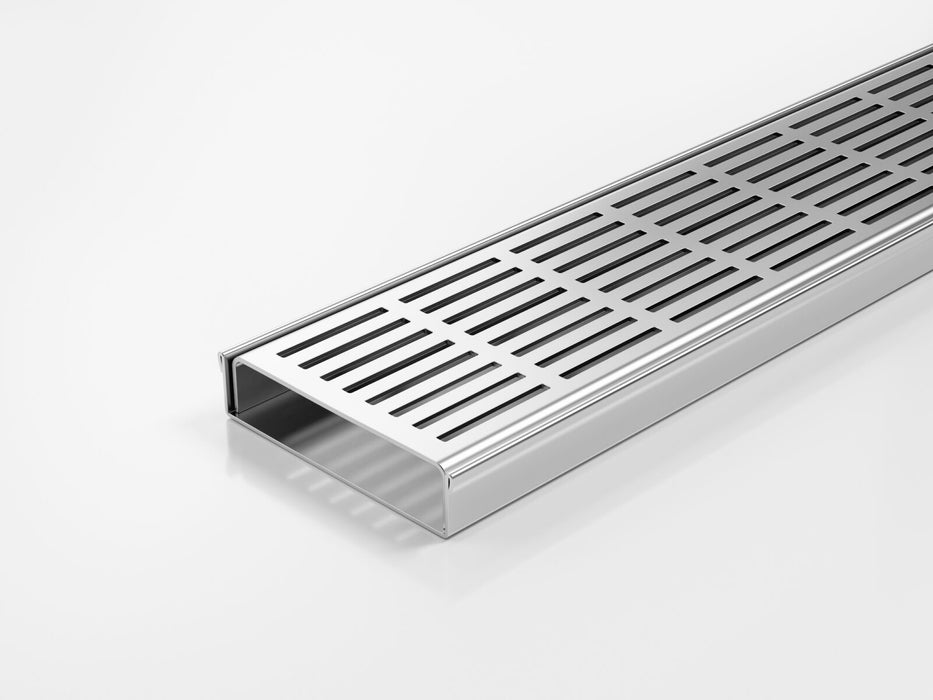

Stainless steel linear drain grate and channel modular kit designed for architectural applications. Suitable for internal and external wet areas. Constructed from low carbon 316 marine grade stainless steel, for durability, corrosion resistance and a clean, minimalist appearance.?
Stormtech kits feature an oversized channel with punched outlet, allowing self-selection of outlet position before cutting down channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps and outlet extender. See our guide to kit components for more info
| Product Code | 100PSi20 |
| Range | 100mm |
| Kit Type | Modular Kit |

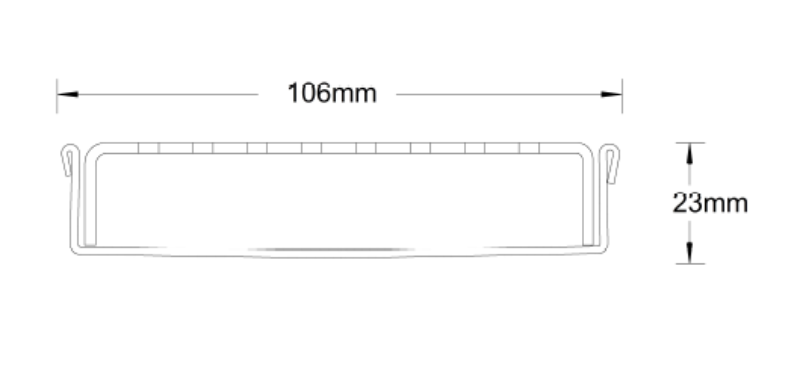

| Channel Width | 106mm |
| Channel Depth | 23mm |
| Length(s) | 900 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm, 1900 mm, 2000 mm |
| Channel Material | 316 Stainless Steel |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Assembly Guide (Over 2m) |
||
| 100i20 Assembly Kits over 2m 1 | (160.7 KB) | Download |
Assembly Guide (Under 2m) |
||
| 100i20 Assembly Guide (Under 2m) | (111.7 KB) | Download |
Bathroom Guide (Over 2m) |
||
| 100i20 bathroom Kits over 2m 3 | (228.2 KB) | Download |
Bathroom Guide (Under 2m) |
||
| 100i20 bathroom Kits under 2m 2 | (227.6 KB) | Download |
Concrete Guide |
||
| 100i20 Concrete 1 | (189.9 KB) | Download |
Threshold Guide |
||
| 100i20 Threshold 0 | (119.9 KB) | Download |
Timber Floor Guide |
||
| 100i20 Timber 0 | (156.6 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Modular Kit | (914.8 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
