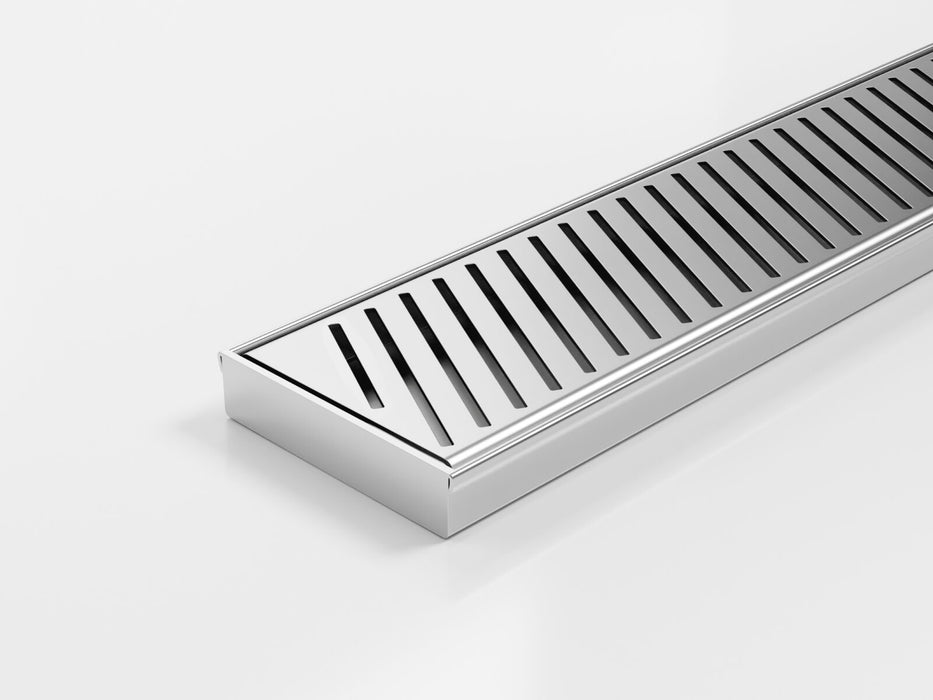

The Punched Angle Slot (PAS) grate style features equally spaced slots at an oblique orientation offering sophisticated geometric appeal. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 100PASiCO20 |
| Range | 100mm |
| Kit Type | Fixed Length |

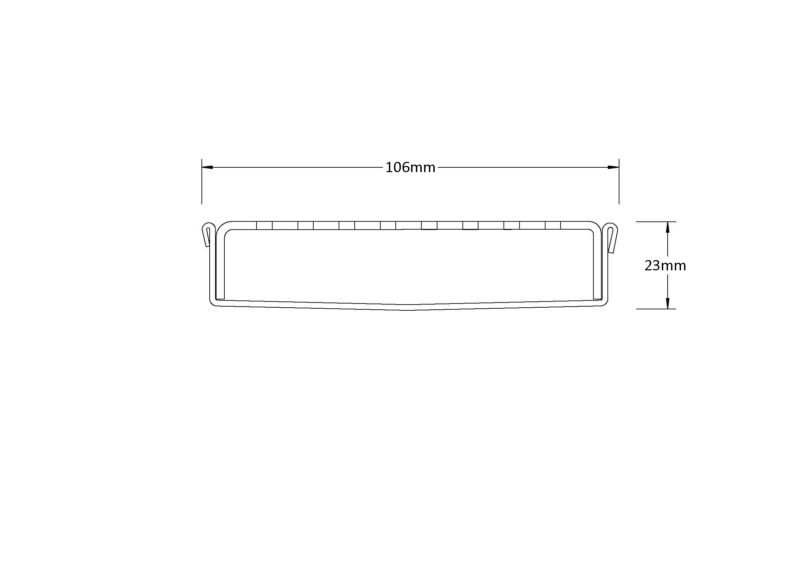

| Channel Width | 106mm |
| Channel Depth | 23mm |
| Length(s) | 900 mm, 1000 mm, 1200 mm, 1500 mm |
| Channel Material | 316 Stainless Steel |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN80 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Bathroom Guide |
||
| 100i20 MTL CO Bathroom Guide | (350.2 KB) | Download |
Concrete Guide |
||
| 100i20 MTL CO Concrete Guide | (121.2 KB) | Download |
Threshold Guide |
||
| 100i20 MTL CO Threshold Guide | (110.4 KB) | Download |
Timber Floor Guide |
||
| 100i20 MTL CO Timber Guide | (113.8 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Fixed Length | (913.8 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
