The Ti is a Tile Insert grate, a popular style for modern architecture due to it's discreet integration in tiled floor applications. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 65Tii30MTL |
| Range | 65mm |
| Kit Type | Made to length |
| Channel Width | 74mm |
| Channel Depth | 31mm |
| Channel Material | 316 Stainless Steel |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN40, DN50, DN65 |
| Suits Tile Depth | Tiles up to 12mm |
Tile inserts longer than 1200mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/-2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
| Made-to-Length Project Form | Download | |
| Made-to-Length Mitre Joint Form | Download | |
Bathroom Guide |
||
| 65 Tii25 bathroom 0 | (254.2 KB) | Download |
Concrete Guide |
||
| 65 Tii25 Concrete 2 | (247.4 KB) | Download |
Threshold Guide |
||
| 65 Tii25 threshold 0 | (123.0 KB) | Download |
Timber Floor Guide |
||
| 65 Tii25 timber 0 | (224.0 KB) | Download |
Wall Guide |
||
| 65 Tii25 wall 0 | (211.4 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 B Tile Grate Made To Length | (719.8 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
| File | File Size | Download |
|---|---|---|
| Premium Ti MTL Order Form | (643.6 KB) | Download |
| Premium Ti MTL Multiple Outlets Order Form | (658.6 KB) | Download |

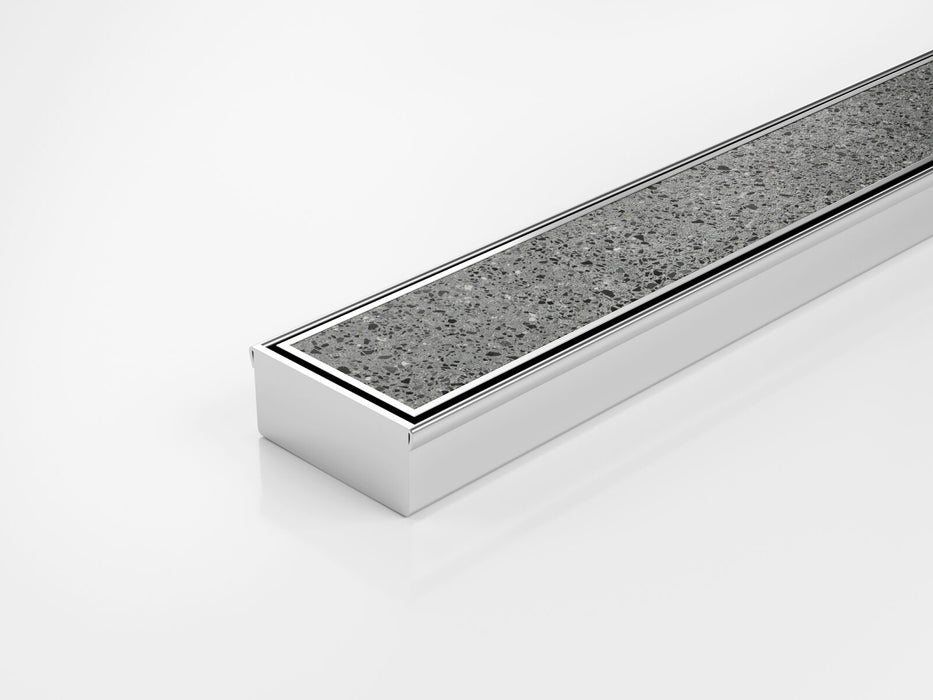

Slimline Linear Drainage system with premium (3mm thickness) Tile Insert (Ti) grate style
