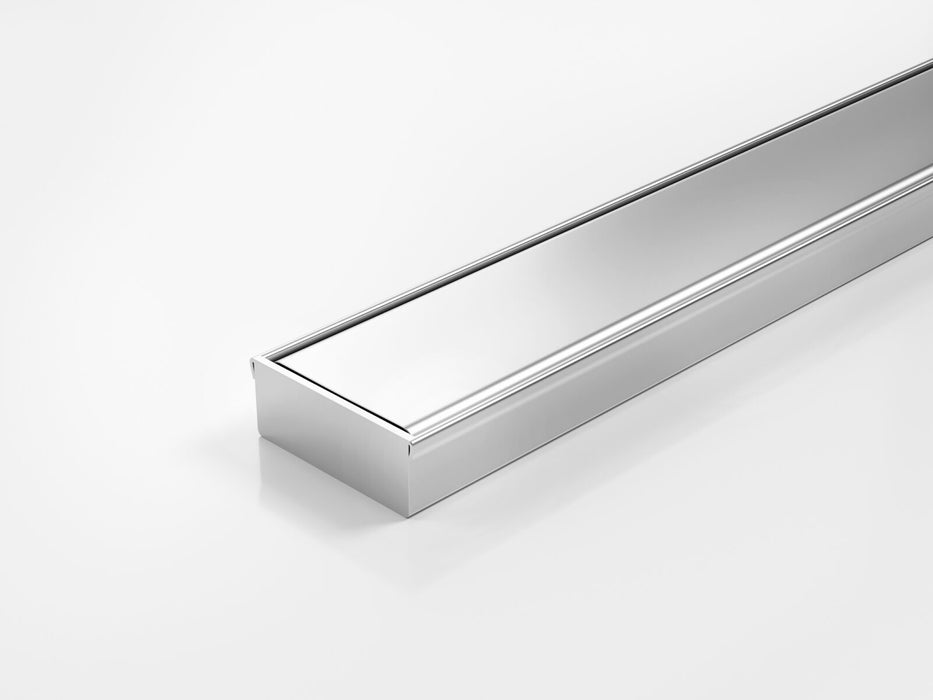

The Flat Top (FT) Is a flat, slotless grate design which draws inspiration from European design. A statement of materiality, driven by the beauty of premium 316 marine grade stainless steel.
| Product Code | 65FTi25MTL |
| Range | 65mm |
| Kit Type | Made to length |
| Channel Width | 72mm |
| Channel Depth | 27mm |
| Channel Material | 316 Stainless Steel |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN40, DN50, DN65 |
Tile inserts longer than 1200mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/-2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
| Made-to-Length Project Form | Download | |
| Made-to-Length Mitre Joint Form | Download | |
Bathroom Guide |
||
| 65i25 MTL bathroom 1 | (234.1 KB) | Download |
Concrete Guide |
||
| 65i25 MTL Concrete 7 | (289.8 KB) | Download |
Threshold Guide |
||
| 65i25 MTL threshold 7 | (181.1 KB) | Download |
Timber Floor Guide |
||
| 65i25 MTL timber 7 | (271.6 KB) | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
| File | File Size | Download |
|---|---|---|
| Stormtech MTL Flat Top Order Form | (215.1 KB) | Download |
