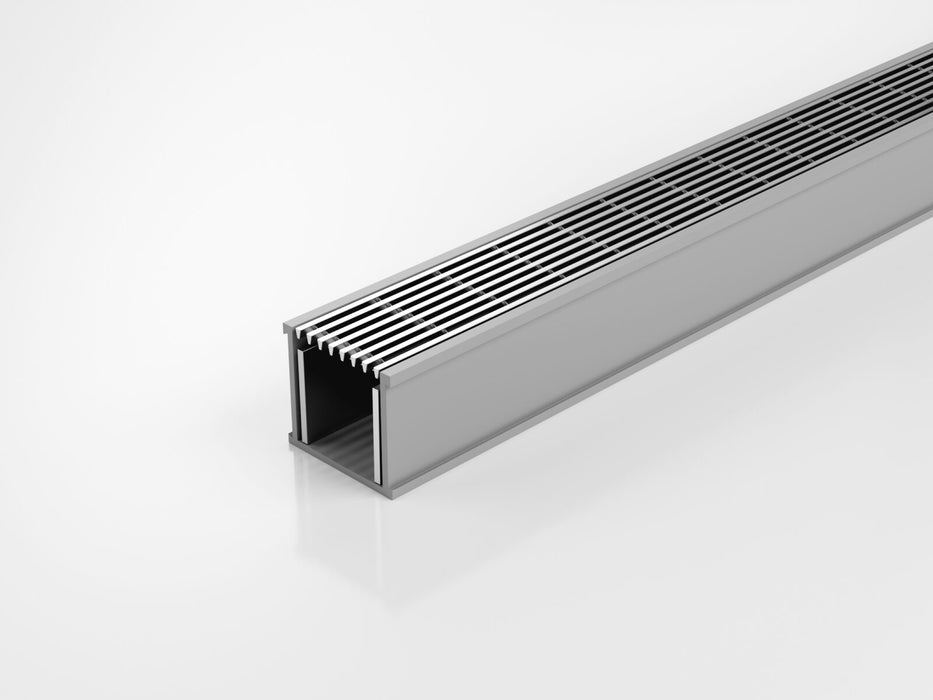

The AR is the original premium architectural grate featuring a 2mm wedge wire/2.5mm gap, constructed from low-carbon 316 marine grade stainless steel
| Product Code | 38ARG40 |
| Range | 38mm |
| Kit Type | Modular Kit |
| Channel Width | 46mm |
| Channel Depth | 42mm |
| Length(s) | 1200 mm, 1500 mm, 2400 mm, 2700 mm, 3000 mm |
| Channel Material | Grey uPVC |
| Greentag | check |
| Watermark | check |
| Compatible Pipes | DN40, DN50 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Assembly Guide |
||
| 38 G40 Assembly 0 | (163.6 KB) | Download |
Bathroom Guide (DN40) |
||
| 38 G40 Bathroom DN40 0 | (263.7 KB) | Download |
Bathroom Guide (DN50) |
||
| 38 G40 Bathroom DN50 0 | (281.9 KB) | Download |
Concrete Guide |
||
| 38 G40 Concrete 0 | (194.7 KB) | Download |
Offset Corner Guide |
||
| 38 G40 other corner 0 | (88.3 KB) | Download |
Threshold Guide |
||
| 38 G40 Threshold 0 | (127.7 KB) | Download |
Timber Floor Guide |
||
| 38 G40 Timber 0 | (222.8 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech PVC Channel2 BSS Grate Modular Kit | (905.9 KB) | ZIP | Download |
Slimline Linear Drainage
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
