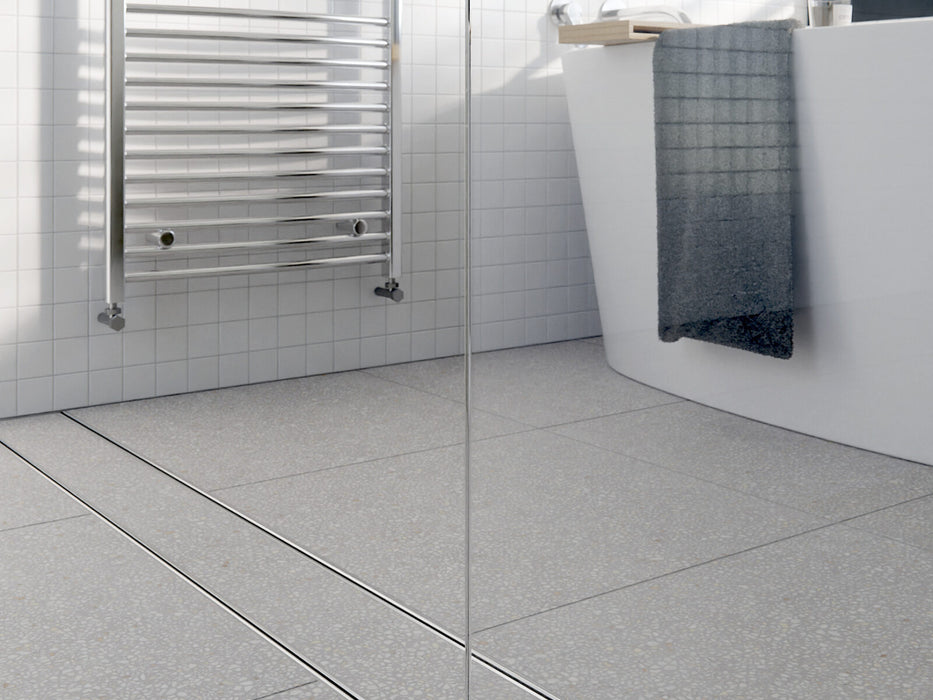

The Stormtech 120SCSTii20 is a high-performance single floor drain solution designed specifically for modern wet room bathrooms. Engineered for both residential and commercial applications, this system delivers efficient drainage while supporting minimalist aesthetics and maximisation of functional bathroom and shower space.
A modular kit built for flexibility, the 120SCSTii20 allows for multiple installation orientations, making it ideal for projects with varying layout requirements. The modular shower screen support channel section can be positioned in either a left or right orientation with easy onsite assembly.
The 120SCSTii20 is particularly suited to accessible and universal design applications. It enables step-free shower transitions by eliminating the need for a hob or complex floor grading, helping you achieve compliant, user-friendly spaces with minimal installation complexity.
| Product Code | 120SCSTii20 |
| Range | 120mm |
| Kit Type | Modular Kit |

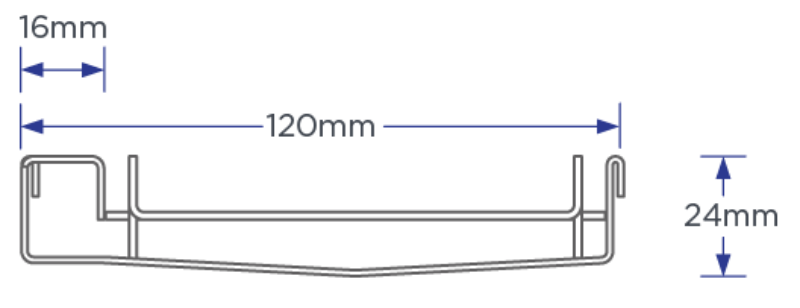

| Channel Width | 120mm |
| Channel Depth | 24mm |
| Channel Material | 316 Stainless Steel |
| Watermark | check |
| Compatible Pipes | DN80, DN100 |
| Suits Tile Depth | Tiles up to 10mm |
Tile inserts longer than 1200mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/-2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | Download | |
Assembly Guide |
||
| 120 SCS kit assembly A | (103.9 KB) | Download |
Bathroom Guide |
||
| 120SCS Bathroom Guide | (200.3 KB) | Download |
Caulking Guide |
||
| 120SCS Caulking Guide | (156.0 KB) | Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain SCS Channel Stormtech SS Channel2 BSS Grate Made To Length | (1,070.4 KB) | ZIP | Download |

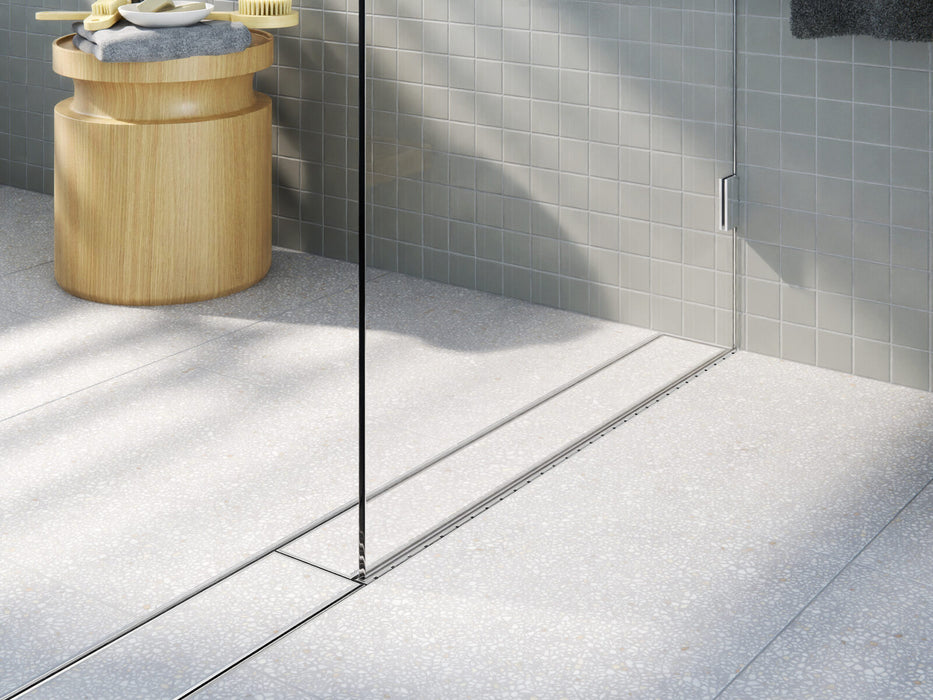

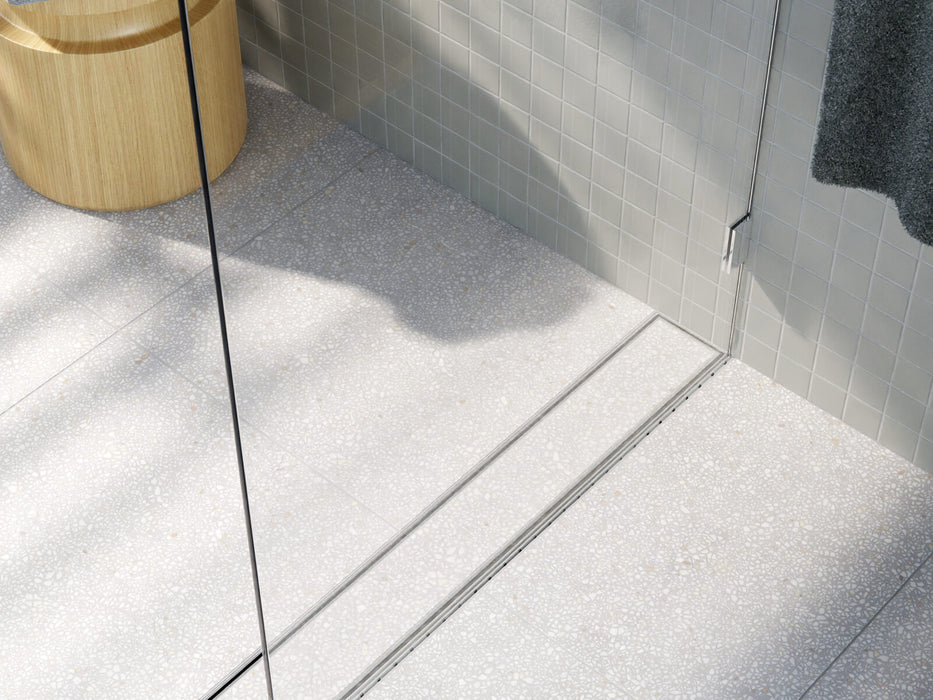

Shower Screen Support
120SCS supports 200 kg per metre and suits glass up to 10 mm thick on standard SCS channels.
For thicker/heavier glass, a customised solution (SCS-MTS) available.

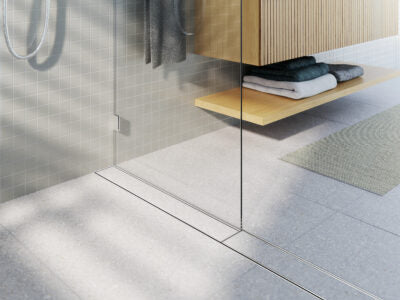

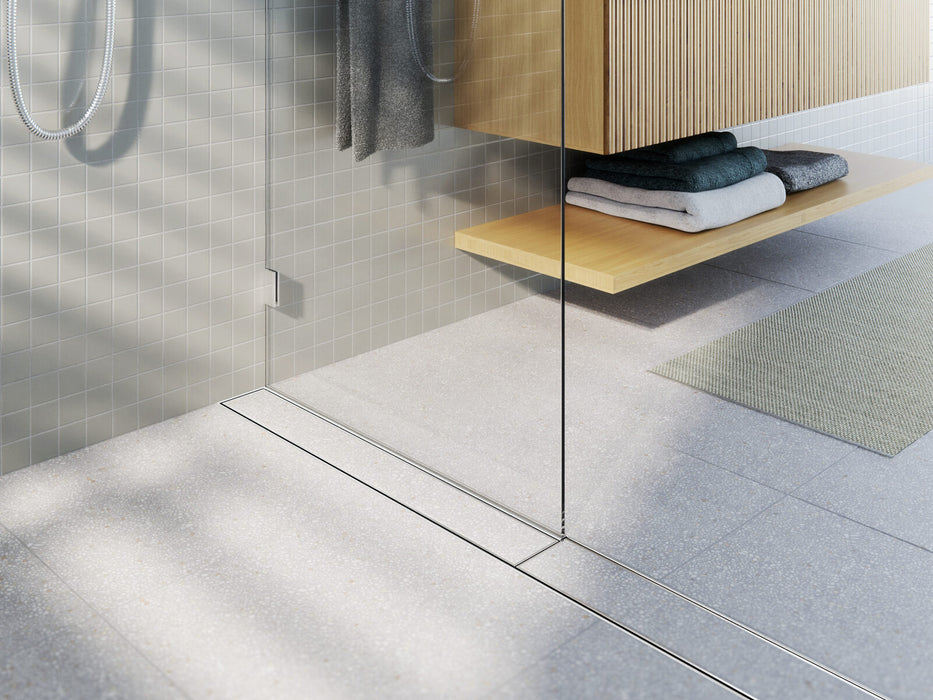

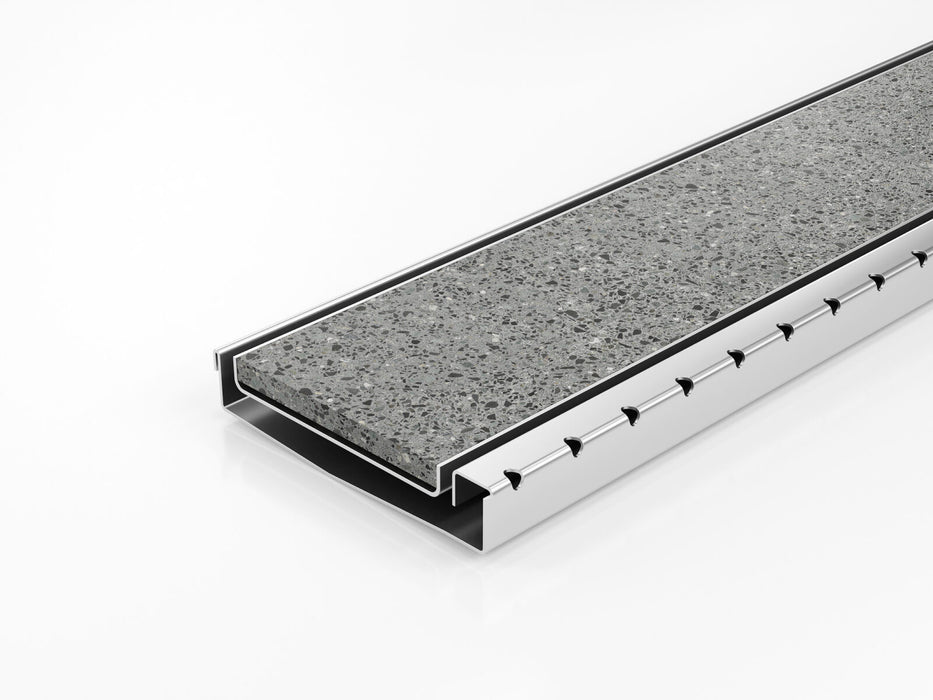

Shower Screen Support modular drainage kit with standard (1.5mm thickness) Tile Insert (Ti) grate style
