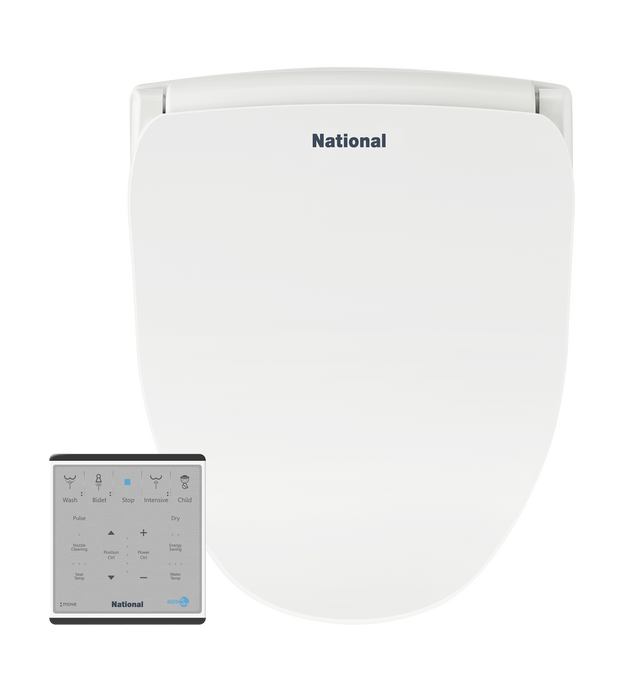

Feature

• Range: BID National

• Comfort: Heated water, heated seat, and heated dryer.
• Superior Engineering: High-quality design and craftsmanship.
• Versatile Wash Functions: Pulse, massage, enema, and child wash.
• User-Friendly Remote: Simple square remote control.
• Advanced Hygiene: Stainless steel nozzle with automatic self-cleaning.
• Soft LED Night Light: Illuminates the bowl for nighttime use.
• Affordable: High-end features at great value.
• Strong Weight Capacity: Safe Working Load (SWL) 180 kg.
• Installation Flexibility: Fits both fully concealed toilets and toilets with seat bolt access.
• Power & Water: 1.5 m power lead on RHS, water pipe on LHS (cannot be changed).

Specification

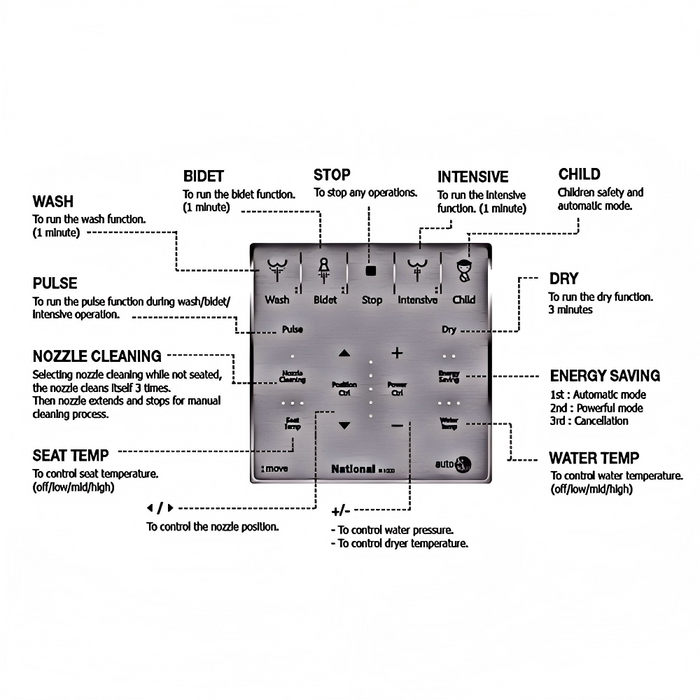

• Remote Control

1. Intuitive touchscreen remote, handheld or wall-mounted, manages all functions.
2. Mini Side Control: Mini pad on the side of the seat provides basic functions: Power, Rear Cleansing & Nozzle Cleansing.Intuitive touchscreen remote, handheld or wall-mounted, manages all functions.

• Wash Functions

1. Massage/Move: Nozzle moves forward/back in rhythmic action for thorough, stimulating wash.
2. Pulse: Rhythmic pulsating spray for soothing stimulation.
3. Enema: Pencil-thin aerated stream ideal for constipation relief.
4. Child: Reduces water pressure to 50% for children.
5. Rear Cleansing: Cleans the bottom area only.
6. Feminine Cleanse: Designed specifically for women.

• Comfort & Heating

1. Heated Water: 4 temperature settings (no heat + 3 levels) and 5 water pressure settings. Fast-heating system warms water before use.
2. Heated Seat: 4 temperature options (no heat + 3 levels).
3. Heated Dryer: 5 warm air settings for gentle drying.
4. Night Light: LED illumination of the bowl, controlled via remote.

• Nozzles & Hygiene

1. Stainless Steel Nozzle: Single hardened nozzle reduces bacterial growth and improves hygiene.
2. Nozzle Position Adjust: Adjustable to 5 positions.
3. Self-Cleaning Nozzle: Automatically cleans before and after each use; manual cleaning button included.

• Safety & Convenience

1. Seat Sensor: Moisture-activated, prevents accidental activation. Located between 3 & 5 o’clock on the seat.
2. Soft Close Seat & Lid: Hydraulic dampers allow quiet closing.
3. Antibacterial Plastic: Ensures high hygiene standards.
4. Power Saving: Auto power-save mode when unoccupied; can be turned on/off.
5. Water Saving: Uses approximately 1–2 cups of water per wash.
6. Quick Release: Base plate allows easy installation and removal, fits toilets with or without seat bolt access.

Package

• Bidet Toilet*1PC
• Standard Installation Kit *1Set

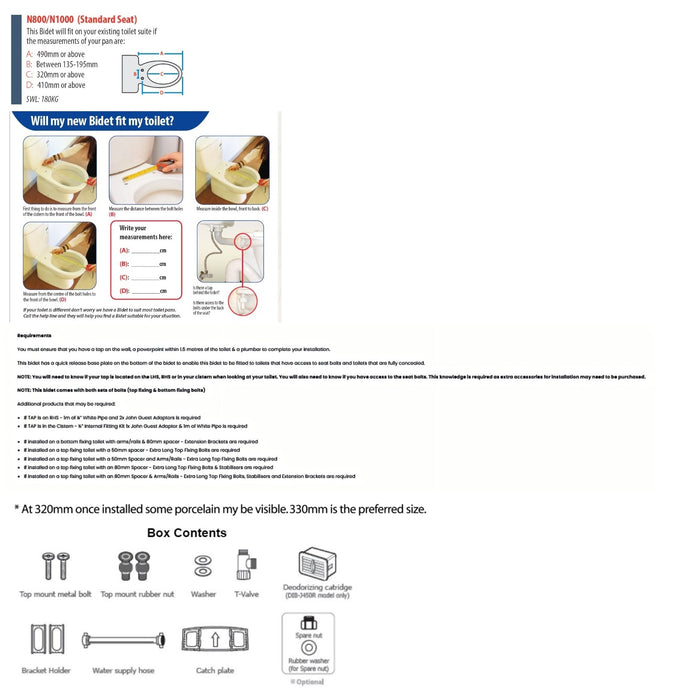

Note

• There is no access to the water tank from under the toilet, and as the main pipe connects inside the tank, an internal install kit is required

• Installation requires a wall tap, a power point within 1.5m of the toilet, and a licensed plumber.

• Quick-release base plate allows fitting on both concealed and accessible seat bolt toilets.

• Check tap location (LHS, RHS, or inside the cistern) and seat bolt access, as extra accessories may be required.

• Supplied with both top fixing and bottom fixing bolts for flexible installation.

Installation

• PDF Install Step by Step

• Additional Products That May Be Required

1. Tap RHS → 1 m of ¼” White Pipe + 2 x John Guest Adaptors
2. Tap in Cistern → ½” Internal Fitting Kit + 1 x John Guest Adaptor + 1 m White Pipe
3. Bottom fixing toilet with arms/rails + 80mm spacer → Extension Brackets
4. Top fixing toilet + 50mm spacer → Extra Long Top Fixing Bolts
5. Top fixing toilet + 50mm spacer + Arms/Rails → Extra Long Top Fixing Bolts
6. Top fixing toilet + 80mm spacer → Extra Long Top Fixing Bolts + Stabilisers
7. Top fixing toilet + 80mm spacer + Arms/Rails → Extra Long Top Fixing Bolts + Stabilisers + Extension Brackets

Warranty

• 2 Year Limited Warranty.
• 1 Year Standard Manufacturer’s Warranty + 1 Year Complimentary Parts & Labour Warranty
