Feature

• Range: Kohler Veil
• Size:680*380*752mm
• Color: Gloss White
• Mounting: Back-to-Wall Toilet
• Materials: Ceramic
• Flush: HygieneMax rimless pan.
• Seat: Quiet Close-Double slim seat or Slim Seat

• European Design: Completes the Veil suite with modern, soft curves for a stylish, cohesive look.
• Slim Tank Lid: Sits seamlessly on the toilet, complementing the discreet side lever flush for a clean, streamlined appearance.


Specification

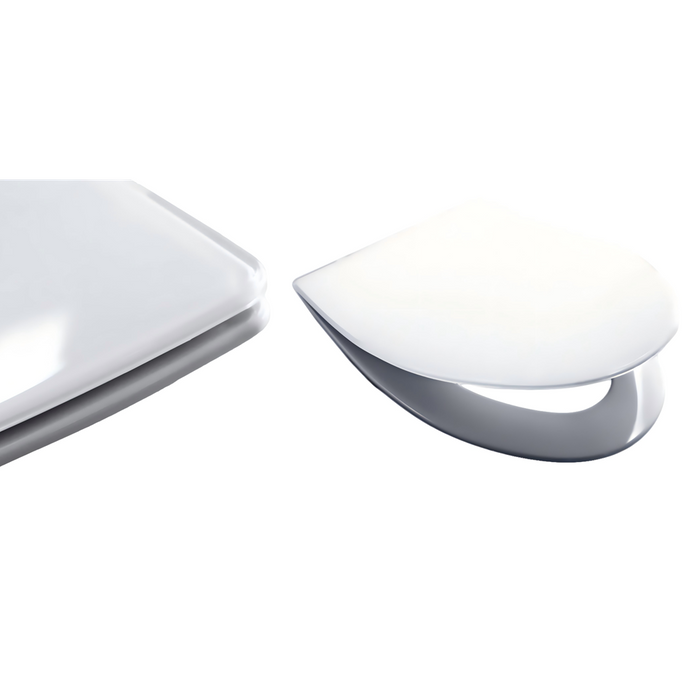

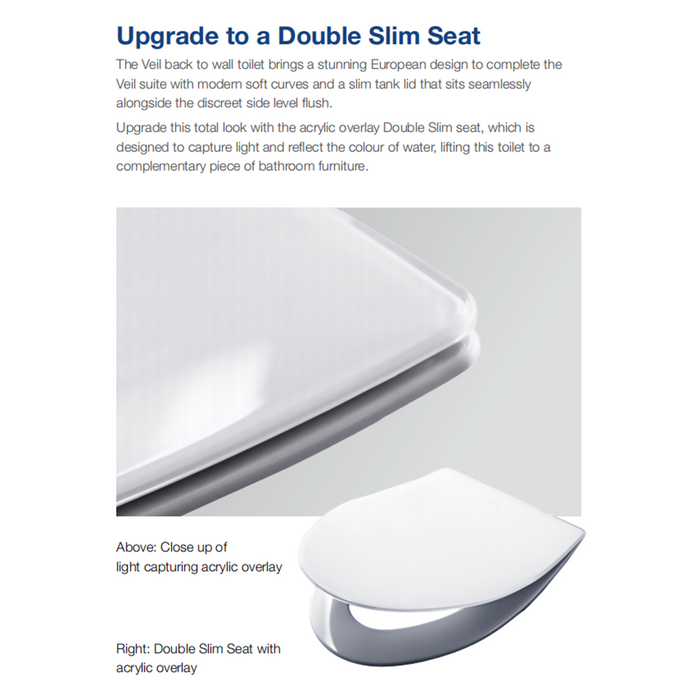

• Slim vs Double Slim Seat

1. Design: Slim Seat – sleek and functional; Double Slim Seat – dual-layer acrylic, ultra-slim, premium look.
2. Light Effect: Slim Seat – standard finish; Double Slim Seat – captures and reflects light and water colour.
3. Aesthetic Impact: Double Slim Seat elevates bathroom style with a furniture-like, sophisticated feel.

• Trap Set-Out

1. S-Trap: 90–140mm (includes vario pan connector and 20mm offset pan collar)
2. P-Trap: 185mm

Package

• Veil BTW Pan * 1PC
• Veil BTW Tank * 1PC(if order)
• Toilet Seat * 1PC(if order)

Note

• Top Inlet Only

Warranty

• Pan 10 years (First 5 years parts, labour and freight, year 5 to 10 parts only)
• Toilet seat (Except Battery Operated Features) 2 years
• Toilet seat (Battery Operated Features) 1 year

Wels

• Wels Model Name: VEIL 2PC TOILET BTW, SLIM SEAT, VEIL 2PC TOILET BTW, DOUBLE SLIM SEAT
• Wels Registration Number: L07057,L07056
• Full flush 4.53
• Half flush 3.01
• Nominal average flush 3.3
• Average flush to appear on label 3.5
• Water efficiency star rating 4
