Feature

• Range: Kohler Veil
• Size: 675*438*435mm
• Color: White
• Vitreous china
• Mounting: Wall Hung Pan
• Button panel: touchless flush button panel in Honed White.

• Ergonomic: french curve seat with antibacterial material.

• Pan: rimless pan design.

• Sensor activated: auto open and close function for seat lid.

• Insulated in-wall cistern: fully framed.

• Dual flush: automatic, touchless or manual dual flush (4.5/3L).

• Night light: built in LED night-light.

• Instantly heated water with stainless steel wand.
• Spray wand with adjustable water pressure and temperature.
•  Air blower and heated seat with adjustable temperature. Self cleaning and UV sanitising nozzle.
• Seat maximum weight limit: 200kg

Package

• Veil wall hung toilet with integrated bidet *1PC

• In wall cistern - Hydro tower 500 *1PC

• Touchless flush button panel *1PC

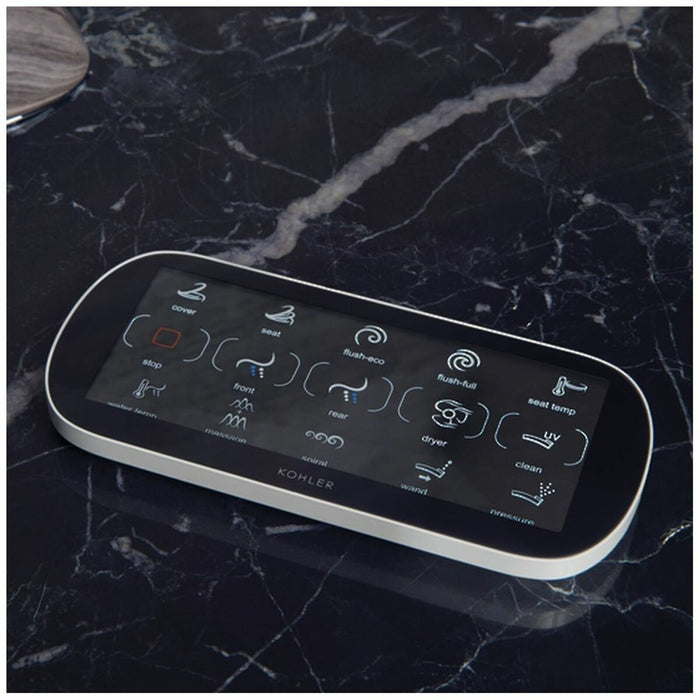

• Wireless one touch remote*1PC

• Waste pipes (S & P trap) & straight inlet  connection pipe*1PC

Installation Note

• Water supply pressure range: Min 70kPa - Max 500kpa.

• Power supply requirements: Dedicated 10A min, 220~240V AC, 50/60Hz supply with ELCB or GFCI.

• Rated power:1000W. Max instant power: 1600W.

• In-wall cistern has an adjustable height and is designed to be fixed to the floor & studs using coach screws (not supplied).

• IMPORTANT: This toilet must be installed in accordance with AS/NZS 3500.1 Plumbing and Drainage.

Warranty

• 10 years (First 5 years parts, labour and freight, year 5 to 10 parts only)

Wels Info:

• Wels Model Name: Veil Wall Faced
• Wels Registration Number: L05660
• Water Rating: 4stars, 3.2L/min
• Full Flush: 4.32
• Half Flush: 2.92
• Average Flush To Appear On Label: 3.2
• Nominal Average Flush:3.2
