Description

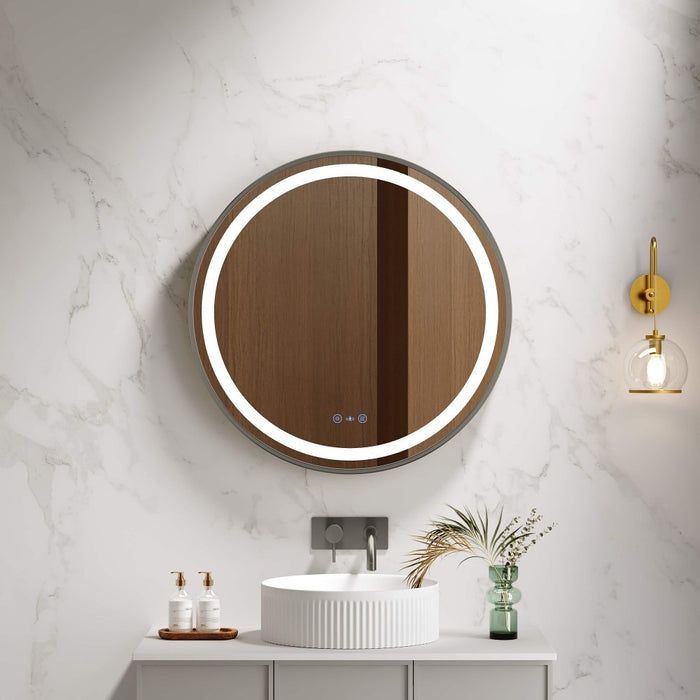

• The Venus Series LED Round Mirror redefines elegance with its 35mm L-profile framed design, combining front-lit brilliance and refined craftsmanship. Designed with advanced LED illumination, dual-button smart control, and SAA-certified defogging, Venus delivers premium clarity, user comfort, and smart convenience—perfect for contemporary interiors.

Dimensions & Power Rating

Specifications

• Available Sizes & Power Ratings

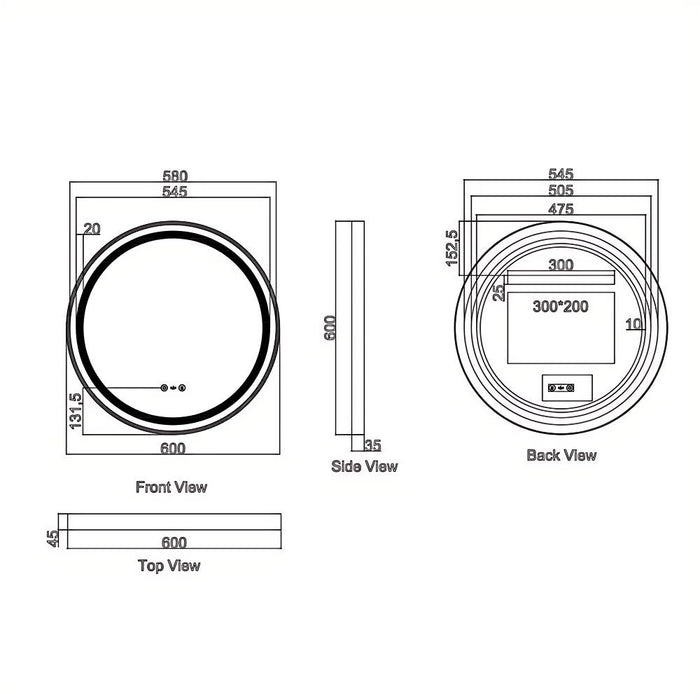

1. 600 × 600 × 35mm – 24W (Demister: 200 × 300mm)

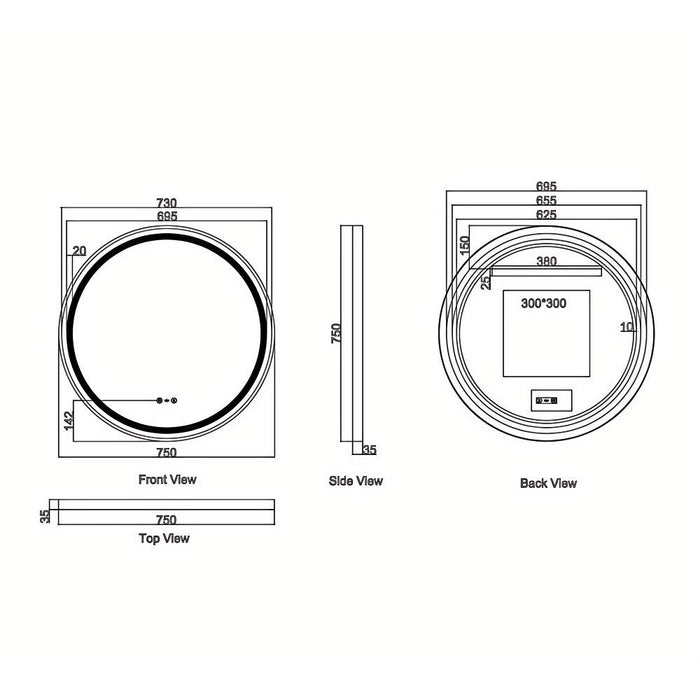

2. 750 × 750 × 35mm – 36W (Demister: 300 × 300mm)

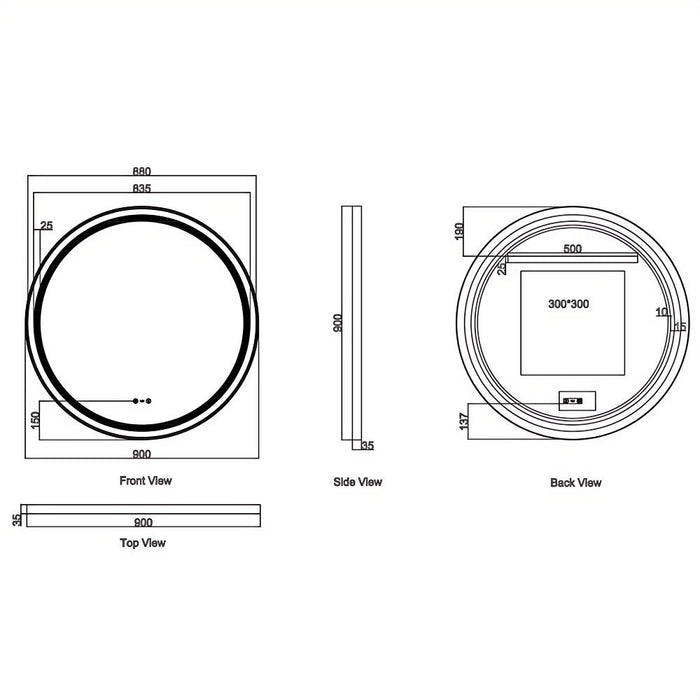

3. 900 × 900 × 35mm – 36W (Demister: 400 × 400mm)

• Mirror

1. 5mm third-generation copper-free mirror
2. Laminated with explosion-proof safety film

• LED Performance

1. 120 LEDs/meter (2835 series)
2. CRI > 80 for natural skin tone reflection

• Smart Control Panel

1. Dual-button interface for light + defogger/motion control
2. Light Function: tap to switch among warm, neutral, and cool tones
3. Defogger Control: tap to toggle; long press (3+ seconds) enables/disables motion sensor

• Motion Sensor

1. Detects movement within 1.5–2 meters
2. Auto-illumination when user approaches, auto-off ~60 seconds after no motion
3. Auto shutoff after 1 hour when motion sensor is disabled

• Defogger System

1. Integrated SAA-certified 220V demister pad
2. Auto shutoff after 1 hour

• Back Panel: Fully sealed PVC white backboard for moisture and fire protection
• Power Supply

1. 1.2m white three-core SAA-certified cable
2. AC 90–265V with external relay for stable performance

• Installation Hardware

1. 2 × Z-shaped mounting plates + 2025 aluminum tube
2. 3-way quick connector
3. User and installation manuals included

Feature

• Range: Mercio Venus

• Switch type: Dual Button + Motion Sensor Control

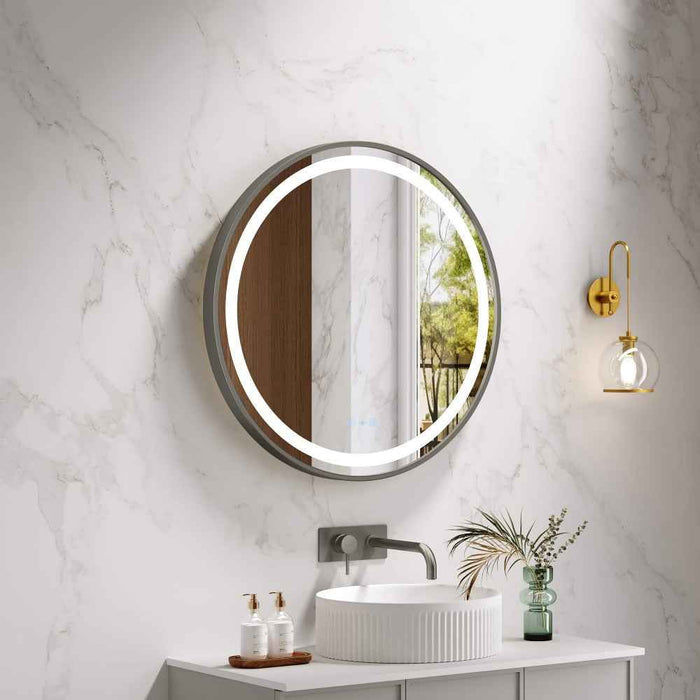

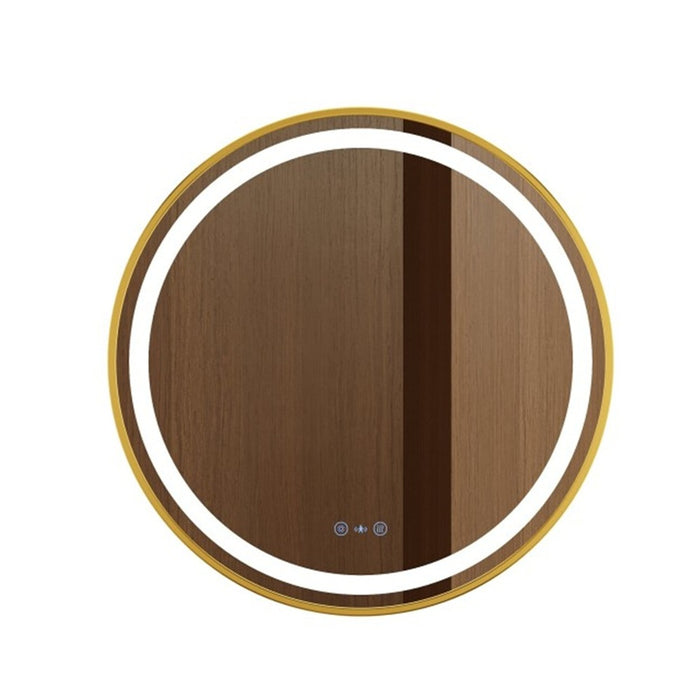

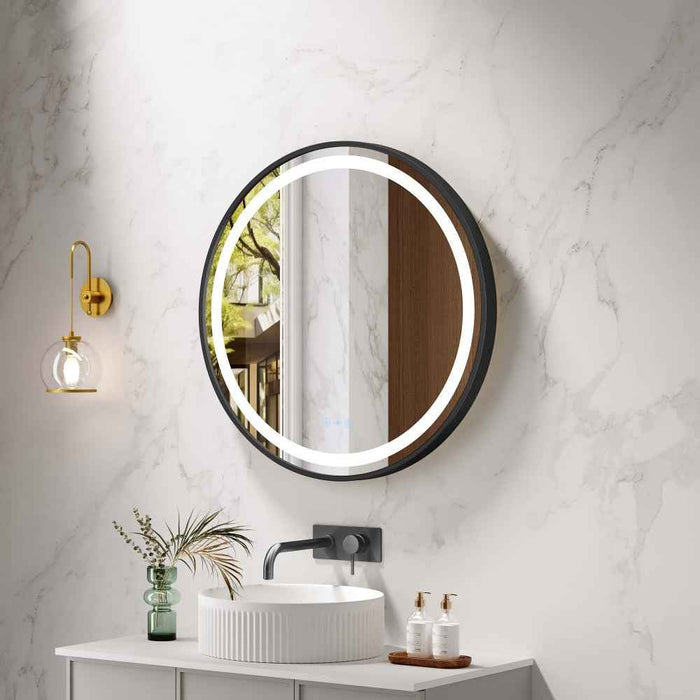

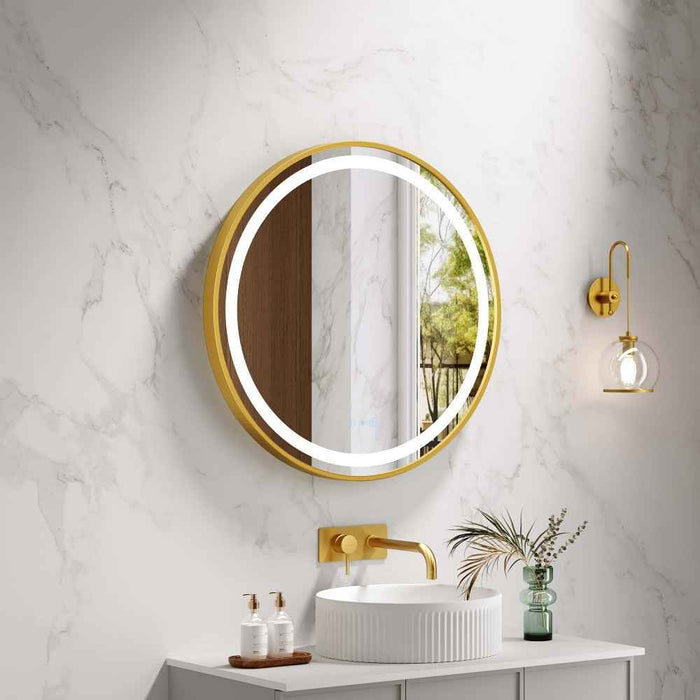

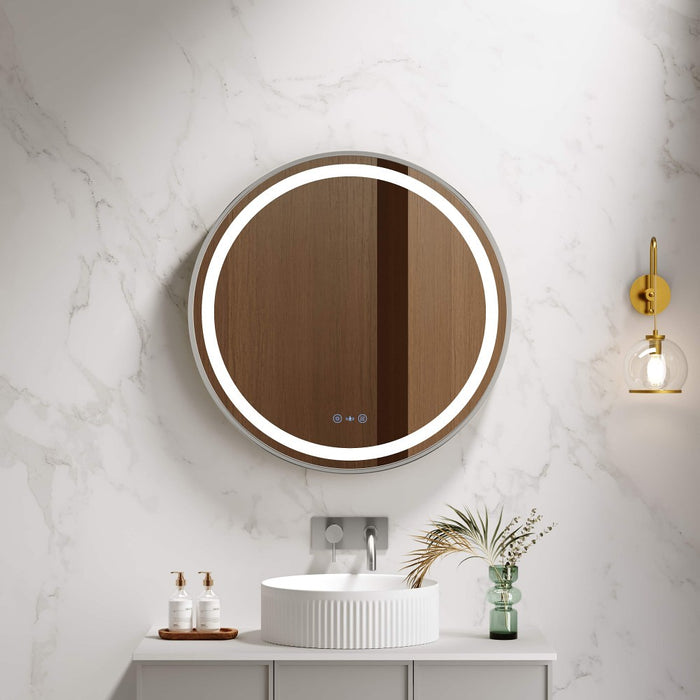

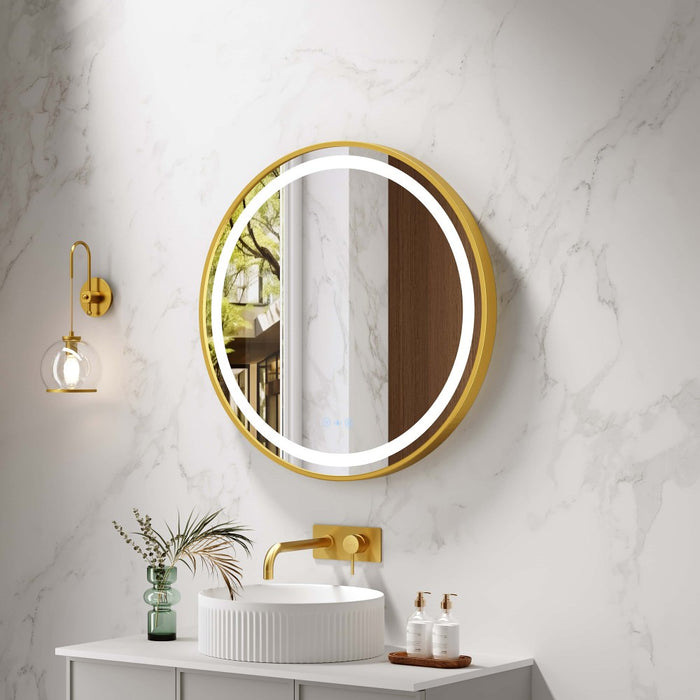

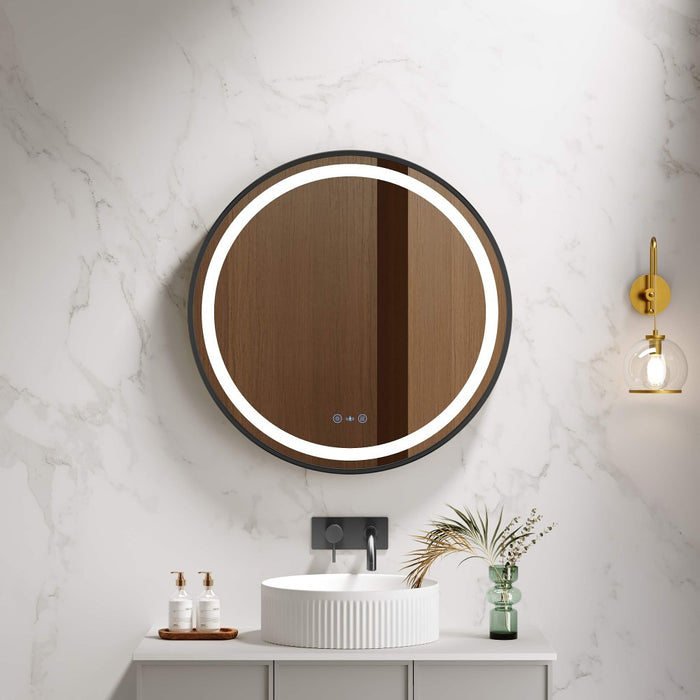

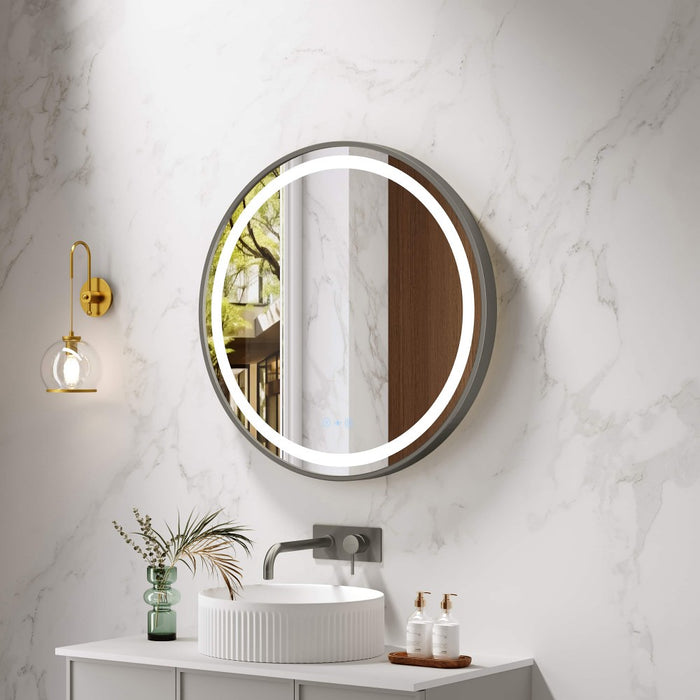

• Frame Color: Matt Black, Brushed Nickel, Gun Metal, Brushed Gold

• Led strip: Waterproof LED Strip
• Power source: Input: 220–240V, 50Hz

• Wall mounted installation for modern, sleek design

• Adjustable LED lighting: warm / neutral / cool (2700K / 4000K / 6500K)
• Three-in-one control: light, defogger, and motion sensor
• Memory function: saves last lighting setting after 5 seconds
• Motion sensor: detects movement within 1.5–2 meters, auto-illumination when user approaches, auto-off ~60 seconds after no motion
• Energy-saving: auto shutoff of light and defogger after 1 hour when inactive
• High-definition 5mm copper-free mirror with explosion-proof safety film
• Waterproof and fire-safe PVC back panel
• Slim 35mm L-profile frame combining front light with round mirror for bold, contemporary look
• Easy installation with 2 × Z-shaped mounting plates, 2025 aluminum tube, and 3-way quick connector
• Certified SAA power supply with wide voltage compatibility (AC 90–265V)

Installation

• Installation Manual

Warranty

• 1 year product replacement
• 1 year parts and labour
