Feature

• Range: Kohler Veil

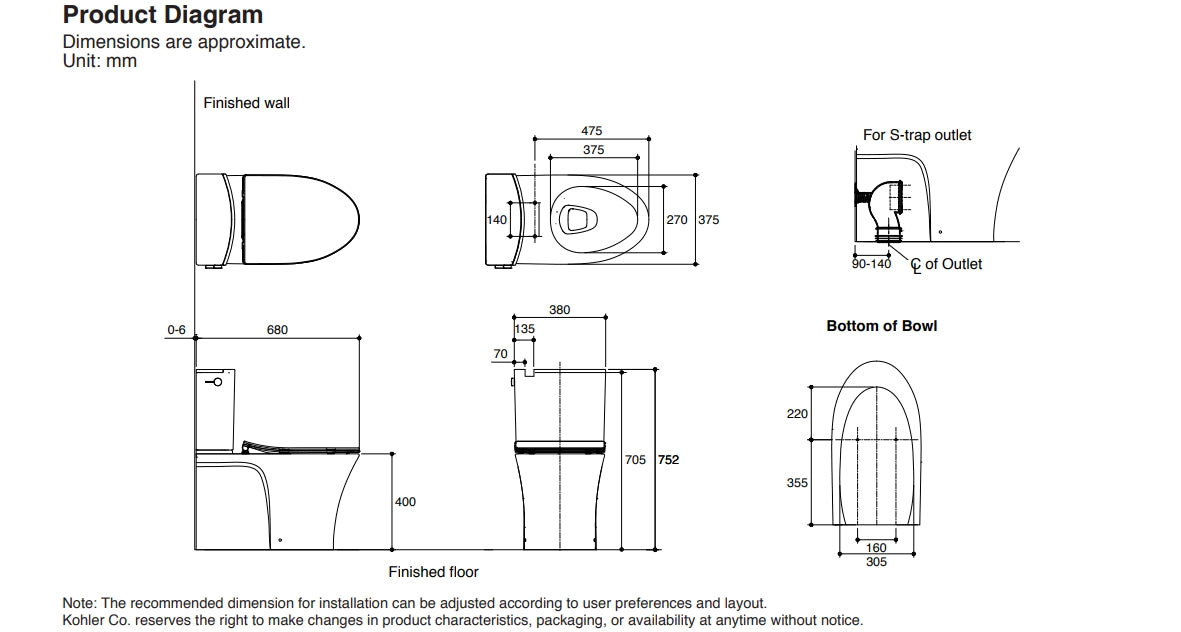

• Size:680*380*752mm
• Color: Gloss White
• Mounting: Back-to-Wall Toilet
• Materials: Ceramic
• Flush: Rimless
• Seat: Double slim seat, Slim Seat
• HygieneMax® rimless pan.
• European design to complete the Veil suite, with modern soft curves.
• Slim tank lid that sits seamlessly, alongside the discreet side lever flush.

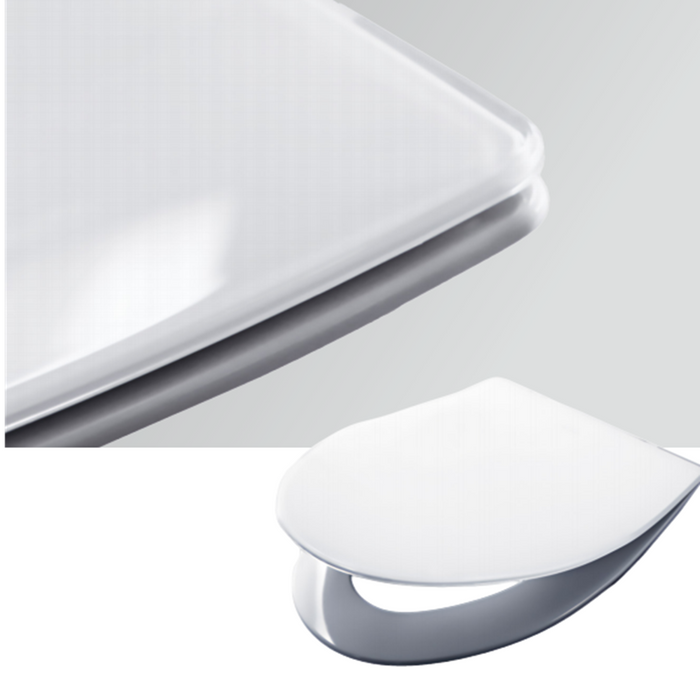

• Upgrade this look with the acrylic overlay Double Slim seat.

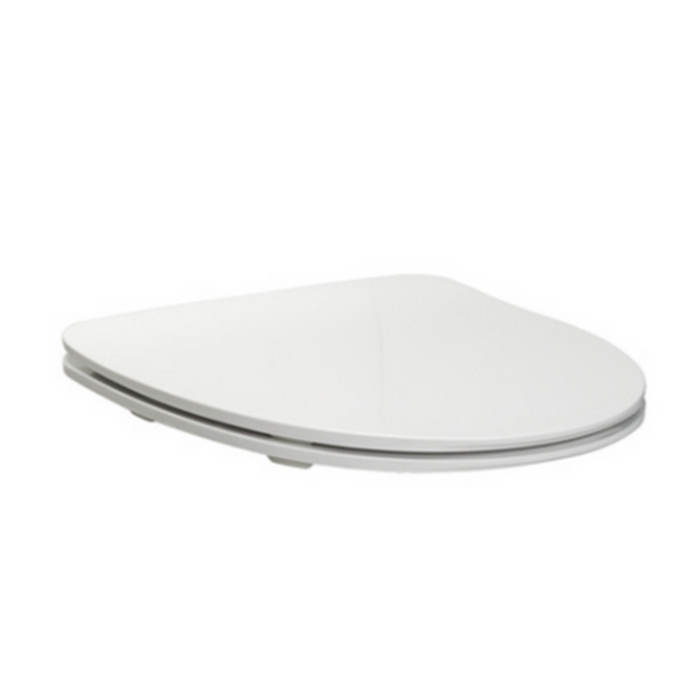

• Quiet Close™, Slim seat.
• S-trap set out: 90mm - 140mm (with vario pan connector and 20mm offset pan collar - supplied).
•  P-trap set out: 185mm.

Package

• Veil BTW Pan * 1PC
• Veil BTW Tank * 1PC
• Veil BTW Slim Seat/Veil  Double Slim Seat * 1PC(if order)

Note

• Top Inlet Only

Warranty

• Pan 10 years (First 5 years parts, labour and freight, year 5 to 10 parts only)
• Toilet seat (Except Battery Operated Features) 2 years
• Toilet seat (Battery Operated Features) 1 year

Wels Info:

• Wels Model Name: VEIL 2PC TOILET BTW, SLIM SEAT, VEIL 2PC TOILET BTW, DOUBLE SLIM SEAT
• Wels Registration Number: L07057,L07056
• Full flush 4.53
• Half flush 3.01
• Nominal average flush 3.3
• Average flush to appear on label 3.5
• Water efficiency star rating 4
